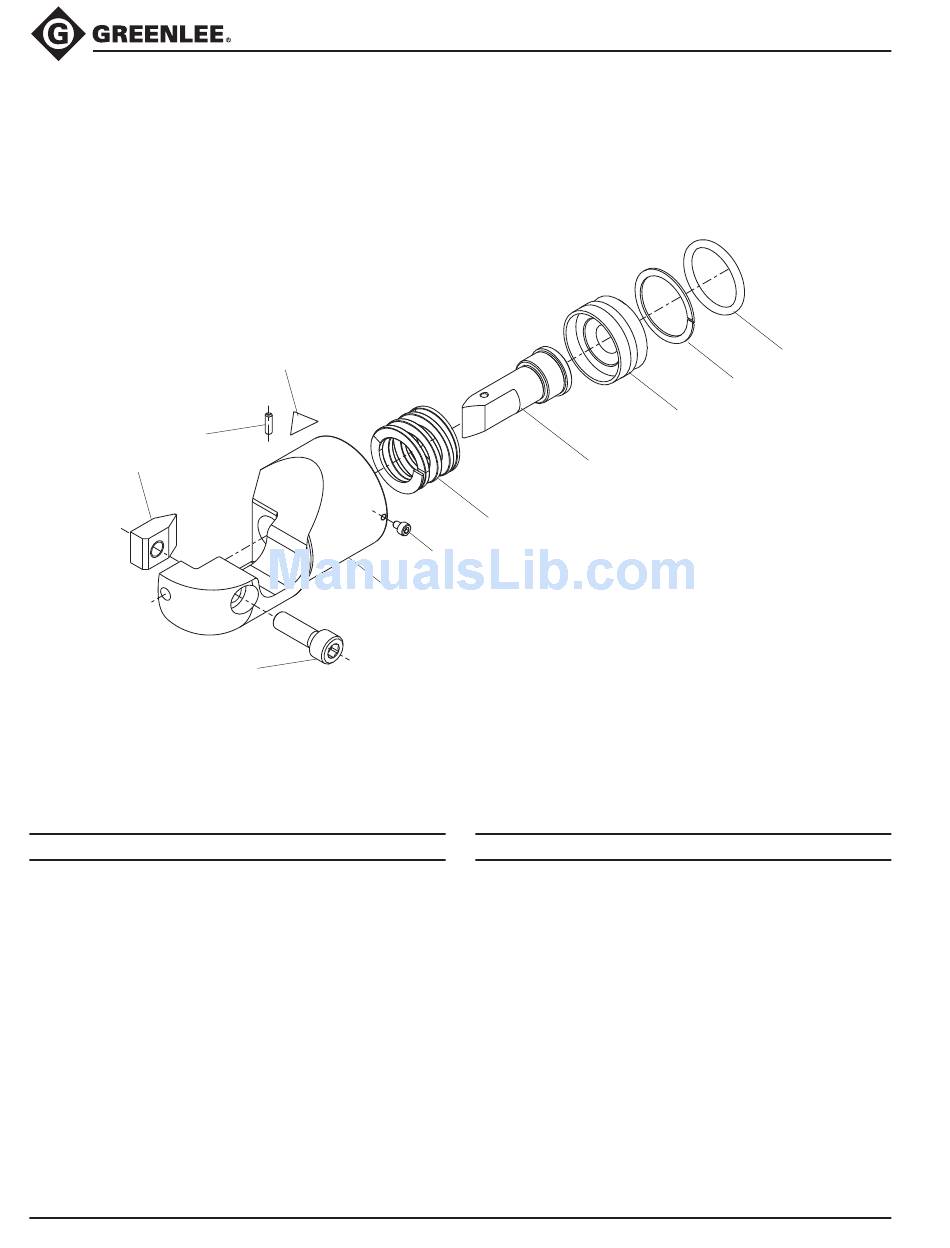

Head and Ram Illustration and Parts List—ETS12L
3
1
Key Part No. Description
52033626 Head assembly (includes 1–7)
52033628 Cutter blade kit (includes 1–4) ................... 1
1 Fixed blade ................................................ 1
2 Movable blade ........................................... 1
3 Roll pin ...................................................... 1
4 Socket head cap screw ............................. 1
5 50019295 Hex head cap screw, m3x4 ....................... 1
Greenlee / A Textron Company
11
7
4
Qty
Battery-powered In-line Tools
2
6
5
Key Part No. Description
6 50019236 Compression spring .................................. 1
7 Cutter head ............................................... 1
8* O-ring (included in 50047957) ................... 1
9* Piston backup ring
(included in 50047957) .............................. 1
10 50019082 Bushing ..................................................... 1
11 52024564 Pinch hazard decal .................................... 1
