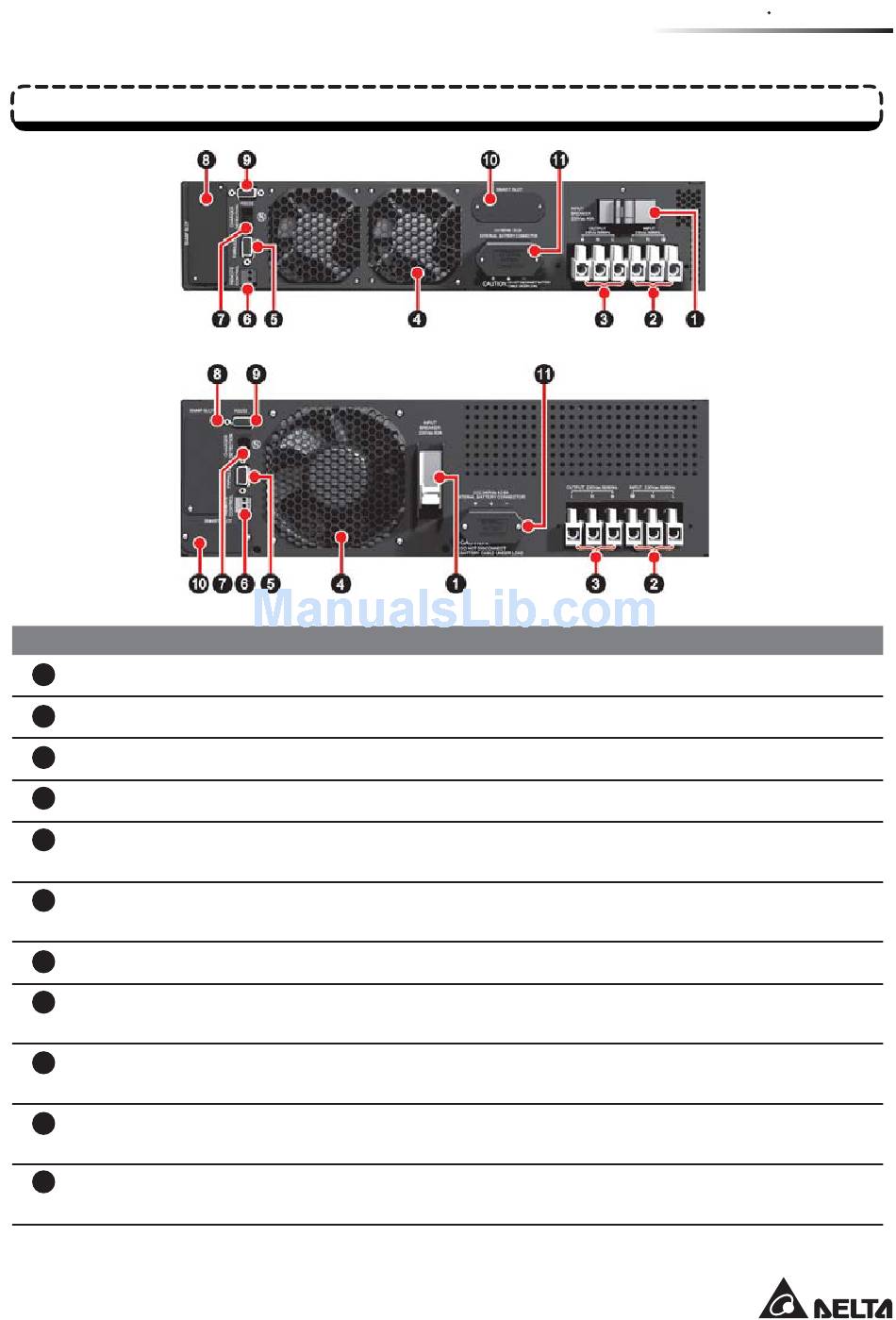

Rear Panel - Delta RT5k User Manual

No. Item
Input Breaker
1
Input Terminal Block
2
Output Terminal Block
3
4 Fan
5 Parallel Connector
Remote Control Port
6
Charger Detection
7
8 SNMP Slot
RS232 Port
9
Smart Slot
10
11 External Battery Pack
Connector

Rear Panel

Description
Protects the utility power from further damage when the UPS fails.
Connects the UPS to the mains.
Connects to the load.
Cools and ventilates the UPS.
For UPS parallel communication, please see Chapter 5 for detailed
information.
Shuts down the UPS completely or switches off the inverter only.
Please see Chapter 5 for detailed information.
Connects to the charger box and detects the charger status.
Accepts SNMP/ Relay I/O/ ModBus card. Please see Chapter 5 for
detailed information.
Communication interface port. Please see Chapter 5 for detailed
information.
Accepts Mini SNMP/ Mini Relay I/O/ Mini USB/ Mini ModBus/ Mini
TVSS card. Please see Chapter 5 for detailed information.
Connects to the external battery pack. Please see Chapter 5 for
detailed information.
7
Chapter 2 Introduction
(Figure 2-b)
5kVA/ 6kVA
Rear Panel
(Figure 2-c)
10kVA Rear Panel
