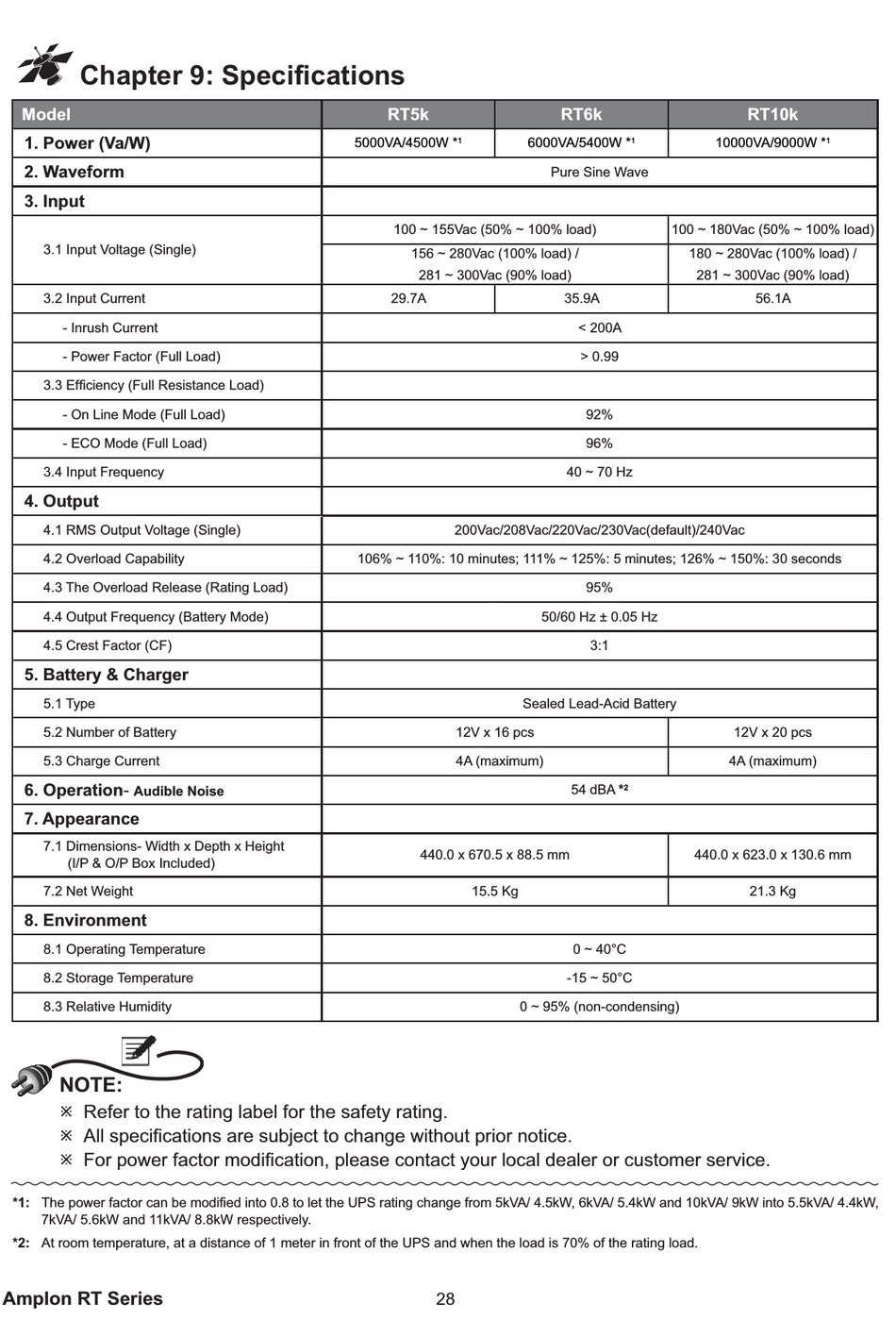

Chapter 9: Specifications
Model
1. Power (Va/W)
2. Waveform
3. Input
3.1 Input Voltage (Single)
3.2 Input Current
- Inrush Current
- Power Factor (Full Load)
3.3 Ef¿ ciency (Full Resistance Load)
- On Line Mode (Full Load)
- ECO Mode (Full Load)
3.4 Input Frequency
4. Output
4.1 RMS Output Voltage (Single)
4.2 Overload Capability
4.3 The Overload Release (Rating Load)
4.4 Output Frequency (Battery Mode)
4.5 Crest Factor (CF)
5. Battery & Charger
5.1 Type
5.2 Number of Battery
5.3 Charge Current
6. Operation-
Audible Noise
7. Appearance
7.1 Dimensions- Width x Depth x Height
(I/P & O/P Box Included)
7.2 Net Weight
8. Environment
8.1 Operating Temperature
8.2 Storage Temperature
8.3 Relative Humidity
NOTE:
Ú Refer to the rating label for the safety rating.
Ú All speci¿ cations are subject to change without prior notice.
Ú For power factor modi¿ cation, please contact your local dealer or customer service.
*1: The power factor can be modi¿ ed into 0.8 to let the UPS rating change from 5kVA/ 4.5kW, 6kVA/ 5.4kW and 10kVA/ 9kW into 5.5kVA/ 4.4kW,
7kVA/ 5.6kW and 11kVA/ 8.8kW respectively.
*2: At room temperature, at a distance of 1 meter in front of the UPS and when the load is 70% of the rating load.
Amplon RT Series
RT5k
5000VA/4500W * 1
100 ~ 155Vac (50% ~ 100% load)
156 ~ 280Vac (100% load) /
281 ~ 300Vac (90% load)
29.7A
200Vac/208Vac/220Vac/230Vac(default)/240Vac
106% ~ 110%: 10 minutes; 111% ~ 125%: 5 minutes; 126% ~ 150%: 30 seconds
12V x 16 pcs
4A (maximum)
440.0 x 670.5 x 88.5 mm
15.5 Kg
0 ~ 95% (non-condensing)
28
RT6k
6000VA/5400W * 1
Pure Sine Wave
100 ~ 180Vac (50% ~ 100% load)
180 ~ 280Vac (100% load) /
35.9A
< 200A
> 0.99
92%
96%
40 ~ 70 Hz
95%
50/60 Hz ± 0.05 Hz
3:1
Sealed Lead-Acid Battery
54 dBA * 2
0 ~ 40°C
-15 ~ 50°C
RT10k
10000VA/9000W * 1
281 ~ 300Vac (90% load)
56.1A
12V x 20 pcs
4A (maximum)
440.0 x 623.0 x 130.6 mm
21.3 Kg
