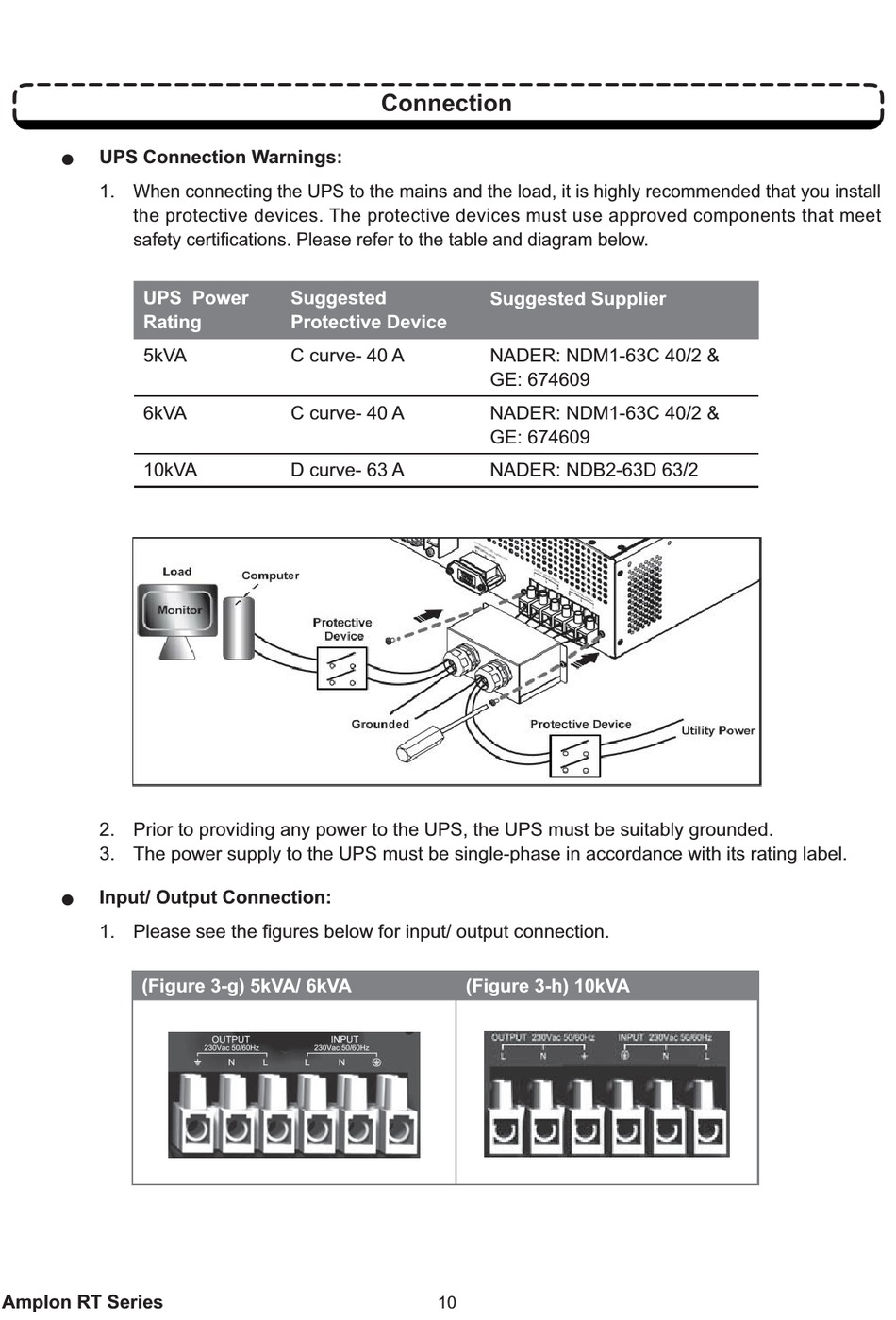

UPS Connection Warnings:
1. When connecting the UPS to the mains and the load, it is highly recommended that you install
the protective devices. The protective devices must use approved components that meet
safety certi¿ cations. Please refer to the table and diagram below.
UPS Power
Rating
5kVA
6kVA
10kVA
2. Prior to providing any power to the UPS, the UPS must be suitably grounded.
3. The power supply to the UPS must be single-phase in accordance with its rating label.
z
Input/ Output Connection:
1. Please see the ¿ gures below for input/ output connection.
(Figure 3-g) 5kVA/ 6kVA
Amplon RT Series

Connection

Suggested
Protective Device
C curve- 40 A
C curve- 40 A
D curve- 63 A
10
Suggested Supplier
NADER: NDM1-63C 40/2 &
GE: 674609
NADER: NDM1-63C 40/2 &
GE: 674609
NADER: NDB2-63D 63/2
(Figure 3-h) 10kVA
