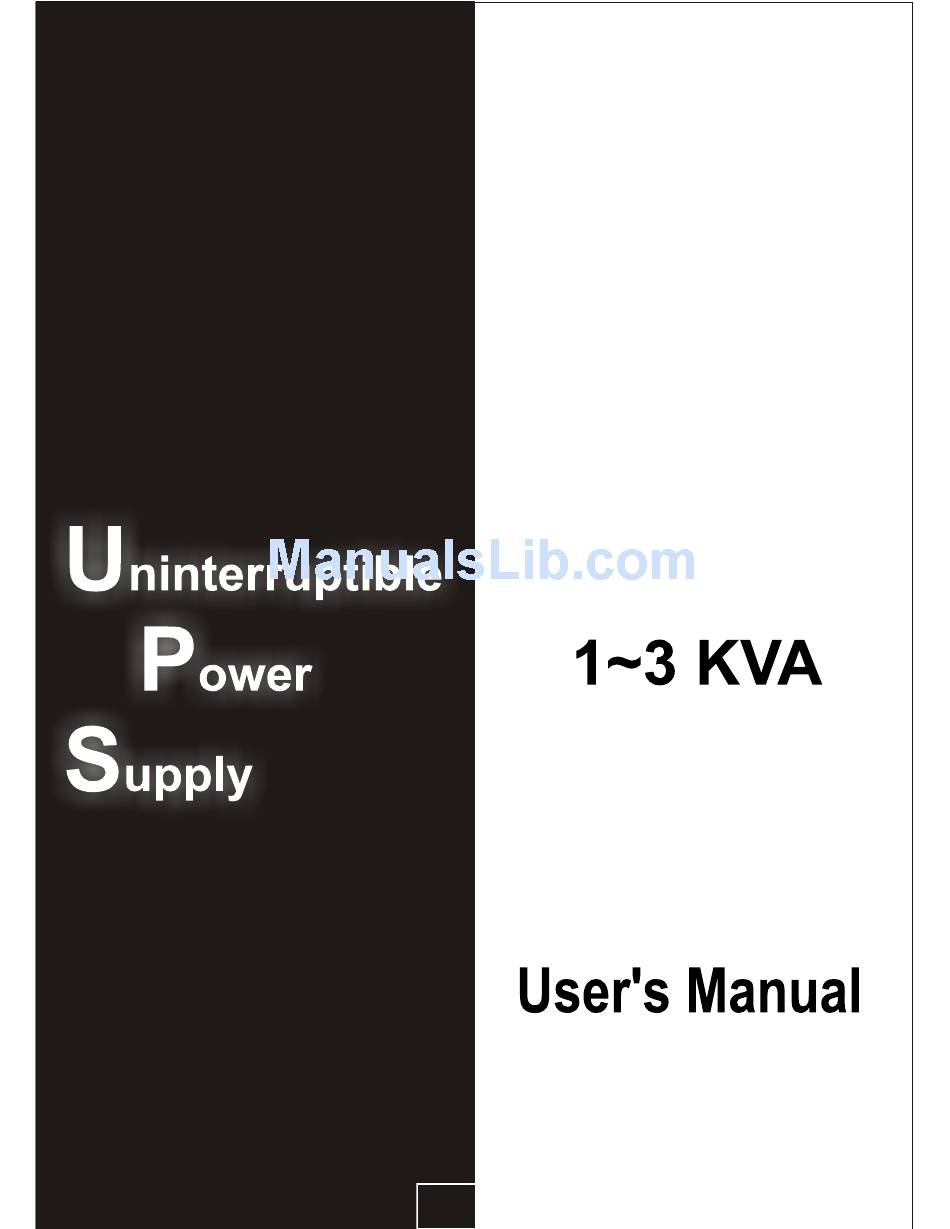

- Page 1 ON LINE R-SERIES SHEET 1 TO 2...
-
Page 2: Table Of Contents
CONTENTS Chapter 1. IMPORTANT SAFETY INSTRUCTIONS ......... 1 Chapter 2. INTRODUCTION ..............3 2-1 Theory of operation................3 2-2 Feature....................4 2-3 Annotation and symbol ..............5 2-4 Front Panel..................6 2-5 Operation Panel ................6 2-6 Rear Panel ..................8 Chapter 3. INSTALLATION................ 9 3-1 Unpacking ..................9 3-2 Before Installation ................9 3-3 Installation ..................9 Chapter 4. -
Page 3: Chapter 1. Important Safety Instructions
GES302R/ 3KVA: HR9-12 (BB), HR1234WF2 (CSB) GES202R/2KVA: GP1270 or GP1272F2(CSB), BP7-12 or BP7.2-12 (BB), NP7-12 (Yuasa), RT1270 (Ritar) GES102R/1KVA: GP1270 or GP1272F2 (CSB), BP7-12 or BP7.2-12 (BB), NP7-12 (Yuasa), RT1270 (Ritar) Falls Sie die Batterien austauschen, verwenden Sie bitte ausschlieβlich... - Page 4 Entfernen Sie Uhren, Ringe und andere metallische Objekte. Verwenden Sie Werkzeug mit isollierten Griffen. The equipment is to be operated by fully trained personnels. Diese Gerät ist nur durch unterwiesenes Personal zu bedienen. EC conformity declaration These devices comply with the regulations of the following guide-lines: 73/23/EEC guide-line of the Council for approximation of the legal regulations of the EC countries concerning the electrical apparatus within certain voltage tolerances, modified by the guide-line RL 93/68/EEC of the...
-
Page 5: Chapter 2. Introduction
2. INTRODUCTION 2-1 Theory of operation The main topology of the UPS consists of bypass path, AC-DC converter, DC-AC inverter, battery charger, DC-DC converter, control circuit and detection circuit. Moreover, the intelligent power management software is also optional. The function and efficiency are superior to the traditional UPS. Description of block diagram BYPASS PFC Control... -
Page 6: Feature
There is no power failure to loading equipment. 2-2 Feature The UPS, available in 1KVA, 2KVA and 3KVA, is an advanced on-line UPS providing reliable and consistent sine-wave quality power to vital equipment. It supports personal computers, networks, servers, telecommunication equipment and a variety of other facilities. -
Page 7: Annotation And Symbol
Input voltage range means less battery power usage frequency and longer battery life-span. Besides, programmable outlet design, suitable for power management, is also included in this unit. Green function design The UPS comes with an intelligent fan design, which can have variable fan speed depending on load status, thereby saving the use of power and reducing audible noise. -
Page 8: Front Panel
2-4 Front Panel Fig 2-4 Front Panel for 1KVA & 2KVA & 3KVA 2-5 Operation Panel Fig 2-5 Operation Panel OPERATION PANEL A. Button： 1. ON/TEST: The button is used for turning on the UPS, it also can perform the test function in “ON-LINE mode”. In backup mode, this button can turn off the buzzer for silence. - Page 9 B. LED Display： 1. ON Line: The UPS is running in “ON-LINE mode”. 2. Line: The LED indicates the condition of UPS input line. If the input voltage is too low, too high or out of frequency this LED will flash. When line is blackout or ultra high voltage (>300Vac), this LED will light off.
-
Page 10: Rear Panel
2-6 Rear Panel The rear panel is explained as follows: (Please refer to fig 2-6.1, 2-6.2) Fig 2-6.1 (1KVA Rear Panel) Fig 2-6.2 (2KVA &3KVA Rear Panel) 1. I/P BREAKER: This is used to prevent high input current from the UPS. -
Page 11: Chapter 3. Installation
3. INSTALLATION 3-1 Unpacking Please read this user manual before installing the UPS. This UPS contains batteries which are potentially hazardous to user, even when the UPS is not connected to the utility power. Before unpacking the UPS, check the packing box. If there are any visible damage, contact your dealer at once. -
Page 12: Charging The Battery
1. Connecting to utility power Connect the IEC plug of power cord to the IEC 320 connector on the UPS. Plug the other end of the power cord into a two-pole, three-wire, grounding receptacle only. Avoid using extension cords and adapter plug. Turn on the input breaker (if the breaker can be turned on) on the rear panel of UPS. - Page 13 3. Connecting the battery bank Utilize the battery connection cable packed with the battery bank. Connect on one end of the cable to the external battery connector of UPS, and the other end to that of the battery bank. Warning: For safety reason, the manufacturer suggests that ONE UPS CONNECTS AS MANY AS FIFTEEN EXTERNAL BATTERY BANKS.
- Page 14 The D-sub 9 connector can work as a RS-232 communication port depending on the type of cable and software used. Refer to section 8 for more information. Fig.3-3.1 UPS Connection for 1KVA: (1) Connected to RS-232 cable (2) Provides power to PC. (3) Connected to utility power.
- Page 15 Fig 3-3.2 UPS Connection for 2KVA or 3KVA: (1) Connected to RS-232 cable (2) Provides power to PC. (3) Connected to utility power. Fig 3-3.2 SHEET 15 TO 16...
-
Page 16: Chapter 4. Operation
4. OPERATION 4-1 Cold start when utility is not present Even when there is no utility power, you can still turn on the UPS. Just press the “ON TEST” button and hold for 2~4 second, the UPS will start up after you hear a “bee”. -
Page 17: Turning "Off" The Ups
4-3 Turning “OFF” the UPS Push the “OFF” button for turning off the UPS, when a “bee” is heard release your press. After a few seconds the UPS is off. The UPS will keep charging when UPS is in “STANDBY mode” even though the“OFF”... - Page 18 Fig 4-4 On-Battery Mode OVERLOAD: If the load exceeds the UPS rating, after a limited period, the overload LED will light on and buzzer continuous beeping to alarm the user. The user should unplug some uncritical loads to release the overload condition.
- Page 19 BATTERY LOW: This function is to inform user the remaining power capacity of the batteries. When batteries reach a low level condition, the UPS alarm will beep half second every 1.5 seconds until running out of battery capacity. Shown as fig 4-7. Fig 4-7 Battery Low SHORT CIRCUIT: When the output of the UPS shorts in【ON-LINE mode】or 【ON-BATTERY mode】, the UPS will shut down (without output voltage).
-
Page 20: Ups Internal Fault
4-7 UPS internal fault If the following conditions occur, the UPS fails. At this time the UPS will transfer to 【BYPASS mode】. The bypass LED and fault LED will light on and alarm continuously. If utility is too low or too high the UPS output will be disabled. -
Page 21: Chapter 5. Maintenance
5. MAINTENANCE Normally, the life of battery is 3 years. But extreme operating condition and environment may shorten its life-span. To replace batteries, contact qualified personnel. When UPS has been unused for a period of time, the batteries will discharge slightly. -
Page 22: Chapter 7. Troubleshooting
7. TROUBLESHOOTING Problem Possible Cause Solution Press the “ON TEST” button to turn on the ON/TEST button is not pushed. UPS. (Refer section 4 to turn on the UPS.) UPS is not turned Battery low shut down and Waiting for line recovery. utility is absent. -
Page 23: Chapter 8. Communication Interface
8. COMMUNICATION INTERFACE The UPS provides RS-232 protocols in one D-sub 9 connector. Using proper UPS management software and cable, the UPS can be managed over LAN/intranet/internet environment. UPS can be also managed through IE / network management software when it’s installed an external SNMP card .The detail install method reference to the“SNMP card user’s manual”... -
Page 24: Chapter 9. Technical Specifications
9. Technical specifications GES102R GES202R GES302R Model Capacity 1KVA/700W 2KVA/1400W 3KVA/2100W Rated Voltage 230V 175V∼280V(Full Load)； Voltage Range Input 80V~175V(100% to 50% Load de-rating Linearly) 50Hz (±5.0 Hz) Frequency ≥0.97 Power Factor Voltage 230V Frequency 50Hz Voltage Regulation ±2% ±0.05 Hz... - Page 25 SHEET 25 TO END...
