Front Panel - Delta RT5k User Manual

No. Item
1
On-line LED
2
Battery LED
3 Fault LED
4
Bypass LED
5 Backlight LCD Display
ON Button
6
OFF Button
7
and
8
Amplon RT Series

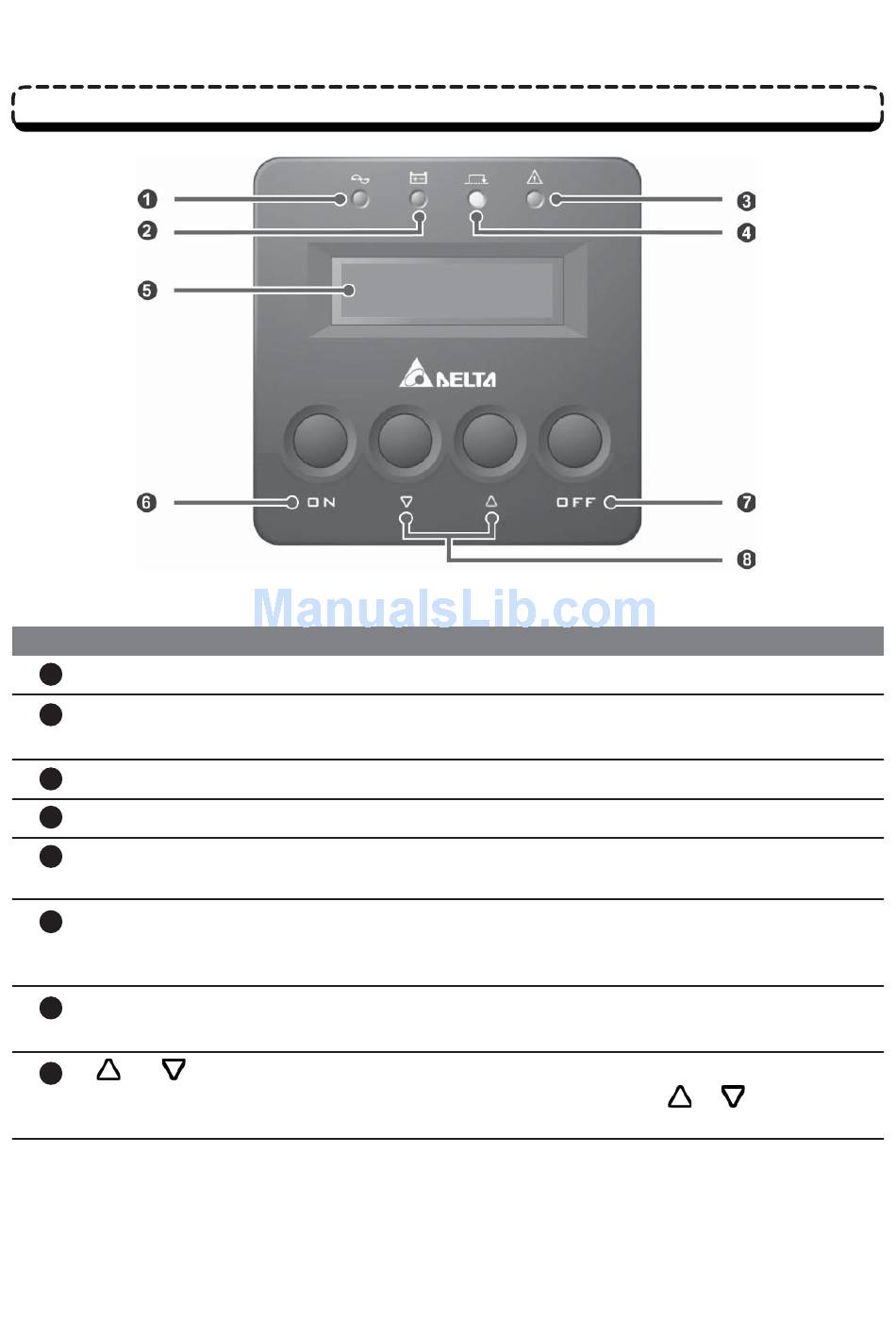

(Figure 2-a) Front Panel
Description
Indicates that the UPS is in on-line mode.
Indicates that the UPS is currently in battery mode and the external
battery is discharging now.
Indicates that the UPS has an internal fault.
Indicates that the UPS is in bypass mode.
The LCD display shows the status of the UPS and relevant infor-
mation.
Press this button for 3~5 seconds to start up the UPS. In on-line
mode with utility power available, press this button for 3 seconds to
execute the 10-second battery discharge test.
Press this button for over 3 seconds to shut down the inverter of
the UPS.
Buttons
Use these two buttons to set up the output frequency, voltage, op-
eration mode and the LCD. Press either
than 3 seconds to disable 'BEEP'.

Front Panel

6
or button for more
