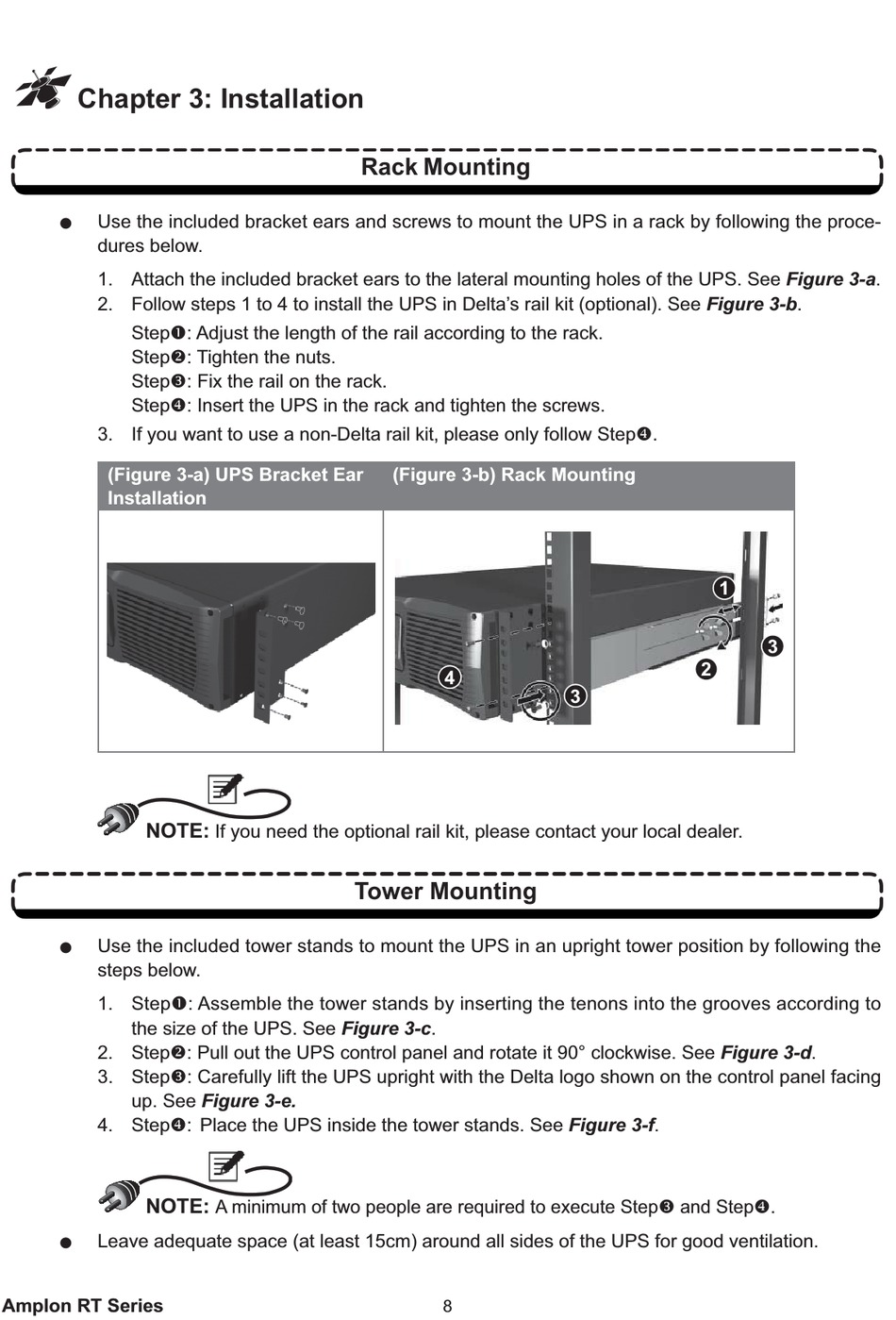

Chapter 3: Installation

z
Use the included bracket ears and screws to mount the UPS in a rack by following the proce-
dures below.
1. Attach the included bracket ears to the lateral mounting holes of the UPS. See Figure 3-a.
2. Follow steps 1 to 4 to install the UPS in Delta's rail kit (optional). See Figure 3-b.
Stepn: Adjust the length of the rail according to the rack.
StepY: Tighten the nuts.
StepZ: Fix the rail on the rack.
Step[: Insert the UPS in the rack and tighten the screws.
3. If you want to use a non-Delta rail kit, please only follow Step[.
(Figure 3-a) UPS Bracket Ear
Installation
NOTE:
z
Use the included tower stands to mount the UPS in an upright tower position by following the
steps below.
1. Stepn: Assemble the tower stands by inserting the tenons into the grooves according to
the size of the UPS. See Figure 3-c.
2. StepY: Pull out the UPS control panel and rotate it 90° clockwise. See Figure 3-d.
3. StepZ: Carefully lift the UPS upright with the Delta logo shown on the control panel facing
up. See Figure 3-e.
4. Step[: Place the UPS inside the tower stands. See Figure 3-f.
NOTE:
z
Leave adequate space (at least 15cm) around all sides of the UPS for good ventilation.
Amplon RT Series

Rack Mounting

If you need the optional rail kit, please contact your local dealer.

Tower Mounting

A minimum of two people are required to execute StepZ and Step[.
(Figure 3-b) Rack Mounting
