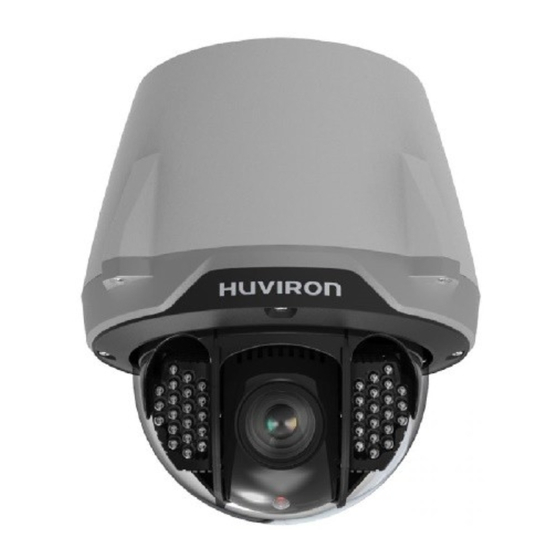

Huviron SK-V207IR-Z946 User Manual

Ir speed dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

IR SPEED DOME CAMERA
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Huviron SK-V207IR-Z946

Summary of Contents for Huviron SK-V207IR-Z946

  • Page 1 IR SPEED DOME CAMERA USER MANUAL...
  • Page 2 If the product is to be put out of operation definitively, take it to a local recycling plant for a disposal which is not harmful to the environment. Please read the instructions carefully for correct use of the product and preserve it for reference purposes.

  • Page 3: Table Of Contents

    Chapter <Chapter 1. Warning and Cautions> 1.1 Warning and Cautions .................... 6 1.1.1 Examples of sign ......................6 1.1.2 Examples of sign ......................6 1.2 Warning ........................ 7 1.3 Cautions ....................... 8 <Chapter 2. Overview > 2.1 Features ......................10 2.2 Accessories ......................
  • Page 4 Chapter 4.4 PRIVACY ZONE ....................34 4.4.1 PRIVACY MASK SETTING ..................34 4.5 ALARM IN ......................36 4.5.1 ALARM IN SETTING ....................36 4.6 ALARM OUT ....................... 37 4.7 SETUP ........................ 38 4.7.1 CAMERA SETUP ...................... 38 4.7.2 P AN/TILT SETUP ...................... 43 4.7.3 DISPLAY SETUP ......................

  • Page 5: Chapter 1. Warning And Cautions

    Chapter 1. Warning and Cautions 1.1 Warning and Cautions ......1.2 Warning ............... 1.3 Cautions .............

  • Page 6: Warning And Cautions

    Chapter 1. Warning and Cautions 1.1 Warning and Cautions Please carefully check these particulars for the safe use. 1.1.1 Examples of sign This symbol indicates the cause of death or serious WARNING injury to the user. This symbol indicates the cause of equipment CAUTION damage.

  • Page 7: Warning

    Chapter 1. Warning and Cautions 1. Warning WARNING Install the product on firm and durable position. Use a recommended adaptor by the manual. Unplug the unit when there is any sign of electric leakage, short circuit or smog by burn. Do not disassemble or remodel the product.

  • Page 8: Cautions

    Chapter 1. Warning and Cautions 1. Caution Caution This product should be installed by expert installer. Do not install the product at the position exposed to the direct sun. Do not install the product where lighting is unstable. Do not drop, hit strongly nor vibrate the product. Please use the product at the proper environment as follow.

  • Page 9: Chapter 2. Overview

    Chapter 2. Overview 2.1 Features ............2.2 Accessories ........... 2.3 Designation ...........

  • Page 10: Features

    Chapter 2. Overview 2.1 Features 1) 360° continuous rotation, -5° ~ 185° tilting range and High-speed pan & tilt at 250° /sec - This is the high speed dome camera which has wide speed range. - Speed is controlled by user's option or the zoom magnification. 2) Up to 128 preset - This function provides preset camera settings such as pan, tilt, zoom and focus, which supports up to 128 presets.

  • Page 11: Accessories

    Chapter 2. Overview 2.2 Accessories DRIVER TORX T10x105mm, 1EA MOUNT HOLE STICKER, 1EA MOUNT SCREW M5x10, "-"TYPE, BRASS, 1EA CONVERT CABLE ANCHOR 6x35, 4EA CAMERA SCREW 4x35 Tp1, BIND SUS, 4EA TERMINAL 15EDGR-3.81-5P, FMALE MANUAL TERMINAL 15EDGR-3.81-7P, FMALE...

  • Page 12: Designation

    Chapter 2. Overview 2.3 Designation 2.3.1 Configuration BASE TRAY BODY...

  • Page 13: Camera Configuration

    Chapter 2. Overview 2.3.2 Camera configuration CA ME RA ADR ESS CR2032 1 2 3 4 5 6 7 8 O FF FU NCTION S TE RM IN AT ION setting Ter minati on SW 1 1 2 3 4 5 6 7 8 O FF O f f O FF...
  • Page 14 Chapter 2. Overview ③ Baud rate setting switch - Select baud rate. - Baud rate setting is as described on <Table 2-3>. Baudrate 2400 bps 4800 bps 9600 bps 19200 bps [Table 2-3] Baud rate setting switch ④ NTSC/PAL setting switch - ON : NTSC - OFF : PAL - Please refer to <Table 2-4>.
  • Page 15 Chapter 2. Overview Camera ID ㆍ ㆍ The rest is omitted. [Table 2-6] Camera address setting switch ⑦ Safety Fuse - It prevent overflow of electricity for safety.(250V, 3A)

  • Page 16: Chapter 3. How To Install

    Chapter 3. How to install 3.1 How to install ..........

  • Page 17: How To Install

    Chapter 3. How to install 3.1 How To Install 1) After loosing the fixing screw by supplied Torx driver, separate the body from the base tray. 2) Remove the guide pin on the back side then fasten the fixing screw instead of guide pin.(※Caution : If you don't get rid of the guide pin, The camera can't move.) GUIDE PIN MOUNT...
  • Page 18 Chapter 3. How to install 3) Open the switch door by "-" driver then adjust the switch. After finish setting, close the door. 4) Make a hole using supplied "MOUNT HOLE STICKER" after that put the cable in the hole. "A"...
  • Page 19 Chapter 3. How to install 5) Firstly push in the anchor then fasten four screws to fix the base tray. MOUNT HOLE STICKER ANCHOR 6x35 4EA BASE TRAY SCREW 4x35 4EA 6) Hook the safety wire on the frame as below picture and connect a din cable. (※Caution : You must hook the wire for preventing a falling accident.) FRAME "B"...
  • Page 20 Chapter 3. How to install 7) Separate the "TERMINAL BLOCK" and then wire the sensor cable to "Alarm In/Out". Alarm_No Relay Alarm_Nc Alarm_Com Open Collector Alarm "C" Sensor 4 Sensor 3 Sensor 2 Sensor 1 <DETAIL "C"> 8) Reassemble the base tray with body. "D"...
  • Page 21 Chapter 4. Menu configuration and operating 4.1 PRESET ............4.2 MOTION CONTROL ......4.3 TIME SET ............4.4 PRIVACY ZONE ......... 4.5 ALARM IN ............4.6 ALARM OUT ..........4.7 SETUP .............. 4.8 SYSTEM ............
  • Page 22 Chapter 4. Menu configuration and operating Not only basic function such as Pan/Tilt/Zoom but additional functions are available for this camera. Additional functions are as follow. 1. PRESET Setting functions of speed dome such as Preset and Motion detection Setting function of speed dome such as Sequence/Random Scan, 2.

  • Page 23: Chapter 4. Menu Configuration And Operating

    Chapter 4. Menu configuration and operating This is first page of the OSD menu. MAIN MENU -------------------------------- Preset Motion Control Time Set Privacy Zone Alarm In Alarm Out Setup System Exit [Menu 4-1] Main Menu 4.1 PRESET 4.1.1 PRESET(Path : MAIN MENU / PRESET) This function is to save, delete, or call the specific position of Pan, Tilt, Zoom or Focus by user's option.
  • Page 24 Chapter 4. Menu configuration and operating ID SETUP ------------------------------------ ABCDEFGHIJKLMNOPQRSTUVWXYZ abcd efgh i jklmn o pqrs tuv wx y z 1 2 3 4 5 6 7 8 9 0 + - 4 / ! # * ~ , . : - ~ < > [ ] $ % & <<...

  • Page 25: Motion Detection

    Chapter 4. Menu configuration and operating 4.1.1.2 CALL THE PRESET POSITION 1) Input the preset number you want to move on "NUMBER". 2) Incase " * " appears at the right of the number, press "IRIS CLOSE" button. [TIP] With special controller(option), you can use "PRESET" function easily. 4.1.2 MOTION DETECTION(Path : MAIN MENU / PRESET / MOTION &...

  • Page 26: Preset Xxx Camera Set

    Chapter 4. Menu configuration and operating DETECTION ZONE SETUP ------------ Area: On/Off: T op: Bottom: Left: Right: Save&Back Back [Menu 4-6] Detection Zone Setup ①Area : Select 8 Motion Detection Zones. ②On/Off : Select On/Off of each area. ③Top : Setting top size of selected area.(01~26) ④Bottom : Setting bottom size of selected area.(05~30) ⑤Left : Setting left size of selected area.(01~44) ⑥Right : Setting right size of selected area.(05~48)
  • Page 27 Chapter 4. Menu configuration and operating The set-up of above menu is changed to camera set-up which fits each preset number in case of executing Sequence/Random Scan, after executing change/save. Please refer to ''4.7.1 Camera Setup" section for the explanation of operation on above menu.

  • Page 28: Motion Control

    Chapter 4. Menu configuration and operating 4.2. MOTION CONTROL 4.2.1. AUTO SCAN(Path : MAIN MENU / MOTION CONTROL / AUTO SCAN) This function is to make the camera panning automatically at the fixed speed. "TIL T" or "Zoom" function can be set by user's option on AUTO SCAN mode. <Caution>...

  • Page 29: Seq Scan

    Chapter 4. Menu configuration and operating Move Pan To Set R. Position Move Pan To Set L. Position Press Iris Open Or Menu Press Iris Open Or Menu [Menu 4-9] Custom Scan Setting Menu 4.2.2 SEQ SCAN (Path : MAIN MENU / MOTION CONTROL / SEQ SCAN) This function is to move the camera to the memorized positions one by one according to the group.

  • Page 30: Pattern Scan

    Chapter 4. Menu configuration and operating RANDOM SCAN -------------------------- Random Group: Run Random Scan Back Exit [Menu 4-11] Random Scan Menu 4.2.3.1 RANDOM SCAN SETTING 1) Random Group : Register up to 8 groups. The camera move s to the memorized positions randomly according to the group.

  • Page 31: Time Schedule

    Chapter 4. Menu configuration and operating 4.2.4.1 PATTERN SCAN SETTING 1) Pattern Num : Set pattern number.(1~4) Default value is 1. 2) Start Pattern Learn : To move P/T/Z to memorize pattern. Press IRIS OPEN or Menu To Stop Memory Left: [Menu 4-13] Pattern Scan Set Menu : Memory Left - Display the available number of memory.
  • Page 32 Chapter 4. Menu configuration and operating 4.2.5.1 TIME SCHEDULE SETTING 1) Number : Select number of schedule. Up to 8 timeline can be selected for a day. Default value is 1. 2) Enable : Determine whether to use this function or not. 3) Master Enable : It manages Schedule Enable from No.1 to No.8.

  • Page 33: Time Set

    Chapter 4. Menu configuration and operating 4.3 TIME SET(Path : MAIN MENU / TIME SET) Customize the camera clock; you can schedule sequence actions to perform automatically. <Caution> If the time error occurs, you should replace the battery in the camera. TIME SET ----------------------------------- Time Format: Date Format:...

  • Page 34: Privacy Zone

    Chapter 4. Menu configuration and operating 4.4 PRIVACY ZONE(Path : MAIN MENU / PRIVACY ZONE) For privacy, this camera provides a function for hiding the points for which area masking is selected from screen. <Caution> Area masking can be set up to 8 zones. PRIVACY ZONE --------------------------- Zone Number: Display...
  • Page 35 Chapter 4. Menu configuration and operating ③ Decide To Mask Position Move: P/T Command [Menu 4-18] Privacy Zone Setting Menu ①Please move to where you want place as shown on the ① picture. After that press the IRIS OPEN or MENU key to move next step. ②Set the size of privacy zone as shown on the ②...

  • Page 36: Alarm In

    Chapter 4. Menu configuration and operating 4.5 ALARM IN(Path : MAIN MENU / ALARM IN) This function is to activate alarm upon detection of sensor. ALARM IN ---------------------------------- Sensor Num: Priority: Input Contact: Activate ├ AUX: ├ Preset: └ Dome Act: Back Exit [Menu 4-19] Alarm In Menu...

  • Page 37: Alarm Out

    Chapter 4. Menu configuration and operating 4.6 ALARM OUT(Path : MAIN MENU / ALARM OUT) T o set the output against the alarm input. ALARM OUT ------------------------------- AUX1 Set ├ Mode: └ Dwell Time: AUX2 Set ├ Mode: └ Dwell Time: Back Exit [Menu 4-20] Alarm Out Menu...

  • Page 38: Setup

    Chapter 4. Menu configuration and operating 4.7 SETUP(Path : MAIN MENU / SETUP) This is setup for camera function such as display, Pan/Tilt and etc. SETUP --------------------------------------- Language: English Camera Setup Pan/Tilt Setup Display Setup Back Exit [Menu 4-21] Setup Menu : The camera supports multi-language.
  • Page 39 Chapter 4. Menu configuration and operating 1) DZoom Limit : Set the maximum digital zoom.(Off~16X) 2) Day/Night : Select from color, B/W or AUTO modes CDS DAY&NIGHT SETUP -------------- CDS LUX View. 65.7 LUX Threshold Day: 10LUX Threshold Night: 05LUX D→N Delay: 00SEC N→D Delay:...
  • Page 40 Chapter 4. Menu configuration and operating 3) WDR : When there are both bright and dark areas at the same time, this mode makes both areas distinctive. USER WDR SETUP ----------------------- Range: Wide Level: Save&Back Back [Menu 4-25] User WDR Setup ㆍRange : Defines a range of WDR.(Normal/Wide) ㆍLevel :...
  • Page 41 Chapter 4. Menu configuration and operating - Top : Setting the top size of BLC Zone.(000~100) - Bottom : Setting the bottom size of BLC Zone.(000~100) - Left : Setting the left size of BLC Zone.(000~100) - Right : Setting the right size of BLC Zone.(000~100) ㆍHLC : HLC masks strong light sources from the camera lens, blocking them from saturating the monitor screen.
  • Page 42 Chapter 4. Menu configuration and operating AGC GAIN SETUP ----------------------- Gain: Save&Back Back [Menu 4-28] AGC Gain Setup ㆍGain : Setting Manual gain value instead of AGC Auto.(00~36) 8) SSNR : SSNR significantly reduces the amount of low luminance noise. 9) Shutter : Control the camera's electronic shutter.

  • Page 43: Pan/Tilt Setup

    Chapter 4. Menu configuration and operating 4.7.2 PAN/TILT SETUP(Path : MAIN MENU / SETUP / PAN/TILT SETUP) This is to set the functions related to PAN/TIL T. PAN/TILT SETUP ------------------------- Auto Flip: Prop.Pan: Preset Freeze: Manual Stop Limit: └ Limit Set Set Front Power On Act: Tilt Offset:...

  • Page 44: Display Setup

    Chapter 4. Menu configuration and operating 5) Set Front : To memorize the front of the camera. Move P/T/Z To Set Position Press Iris open To Set Press Iris Close To Cancel [Menu 4-31] Front Set Menu : Move P/T/Z to set front direction and then press the IRIS OPEN key to finish the setup. 6) Power On Act : Set the program to operate when the camera turns on.
  • Page 45 Chapter 4. Menu configuration and operating 1) Cam Name : Set or change the camera name. ID SETUP ------------------------------------ ABCDEFGHIJKLMNOPQRSTUVWXYZ abcd efgh i jklmn o pqrs tuv wx y z 1 2 3 4 5 6 7 8 9 0 + - 4 / ! # * ~ , .
  • Page 46 Chapter 4. Menu configuration and operating → → : Setting a positon of ID in order of precedence(Cam Name Cam Addr Preset Name → Zoom → Date → Time). Press the IRIS OPEN or MENU key to move next step.

  • Page 47: System

    Chapter 4. Menu configuration and operating 4.8 SYSTEM(Path : MAIN MENU / SYSTEM) Set the camera's option. SYSTEM ------------------------------------- Reboot System Reset Password Set ├ Lock Enable: └ New Password System Information Step Out: N-Init Back Exit [Menu 4-35] SYSTEM Menu 1) Reboot System : Reboot system without any deletion of setting.
  • Page 48 Chapter 4. Menu configuration and operating INPUT PREVIOUS PASSWORD ------- ABCDEFGHIJKLMNOPQRSTUVWXYZ abcd efgh i jklmn o pqrs tuv wx y z 1 2 3 4 5 6 7 8 9 0 + - 4 / ! # * ~ , . : - ~ < > [ ] $ % & <<...

  • Page 49: Step Out

    Chapter 4. Menu configuration and operating 4) System Information : Display the settings and version of the speed dome camera. SYSTEM INFORMATION ---------------- Model Version : 1.00 Camera Camera Ver : 5.8 Protocol : SK-P Baudrate : 9600 TV Type : PAL Press Menu To Exit………...

  • Page 50: Chapter 5. Specification

    Chapter 5. Specification 5.1 Dimension ............5.2 Specification ..........

  • Page 51: Dimension

    Chapter 5. Specification 5.1 Dimension Ø125 Ø105 Ø121 Ø165 TAP PT3/4" Ø90 TAP PT3/4" Ø165...

  • Page 52: Specification

    Chapter 5. Specification 5.2 Specification Item Specification Zoom Optical 12X, Digital 16X Lens Focal Length f = 3.94 ~ 46.05mm(F 1.67 ~ F 1.88) 1/4" COLOR SONY SUPER HAD CCD Ⅱ Image Resolution Color : 560 TV-Line, B/W : 680 TV-Line Sensor Effective Pixel 768(H) X 494(V)

  • Page 53: Pelco-D Extended Command

    <Supplement> Menu configuration and operating PELCO-D Extended Command Hot Key description for Pelco-D Protocol user. PELCO-D PROTOCOL EXTENDED COMMAND SET Preset60 Move SET PATTERN STOP Preset61 Move SET PATTERN START 1 Preset62 Move SET PATTERN START 2 Preset63 Move SET PATTERN START 3 Preset64 Move SET PATTERN START 4 Preset70 Move...

  • Page 54: Troubleshooting

    <Supplement> Troubleshooting [Troubleshooting] Problem Solution ㆍCheck the power cord and line connection. ㆍCheck the adaptor for the camera. Initial operation is not working. ㆍIs there no fuse or disconnected fuse? Check the current consumption and use the recommended fuse. ㆍCheck the video cable and line connection. Nothing appears on the screen.

  • Page 55: Warranty Card

    <Supplement> Warranty Card [Warranty Card] PRODUCT NAME IR SPEED DOME CAMERA TERM OF THE GUARANTEE MODEL NO. FOR ONE YEAR DATE OF PURCHASE AFTER THE DATE OF PURCHASE NAME CUSTOMER ADDRESS NAME SELLER ADDRESS THE HISTORY OF AFTER-SALES SERVICE PERSON IN YEAR PROBLEM CHARGE...
