Huviron SK-S200 User Manual

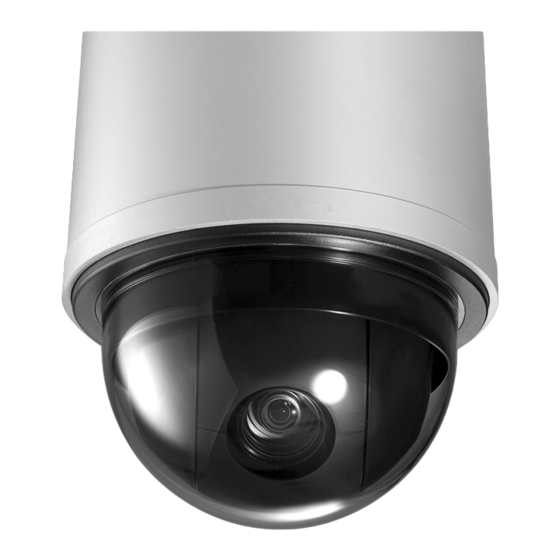

High speed dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HIGH SPEED DOME CAMERA
- 27X OPTICAL ZOOM
- 37X OPTICAL ZOOM
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SK-S200 and is the answer not in the manual?

Questions and answers

Related Manuals for Huviron SK-S200

Summary of Contents for Huviron SK-S200

  • Page 1 HIGH SPEED DOME CAMERA - 27X OPTICAL ZOOM - 37X OPTICAL ZOOM USER MANUAL...
  • Page 2 If the product is to be put out of operation definitively, take it to a local recycling plant for a disposal which is not harmful to the environment. Please read the instructions carefully for correct use of the product and preserve it for reference purposes.

  • Page 3: Table Of Contents

    <Chapter 1. Warning and Cautions> 1.1 FEATURES ......................6 1.2 WARNING AND CAUTIONS ..................7 1.3 WARNING ......................8 1.4 CAUTIONS ......................9 <Chapter 2. Overview and How to install> 2.1 ACCESSORIES ...................... 11 2.2 OVERVIEW 1 ......................12 2.2.1 DIMENSION ....................... 12 2.2.2 DESIGNATION ......................
  • Page 4 3.2 TIME SET ......................38 3.2.1 TIME SET SETTING ....................38 3.3 PRIVACY ZONE ....................39 3.3.1 PRIVACY MASK SETTING ..................39 3.4 ALARM IN ......................41 3.4.1 ALARM IN SETTING ....................41 3.5 ALARM OUT ....................... 42 3.6 SETUP ........................ 43 3.6.1 CAMERA SETUP ......................
  • Page 5 Chapter 1. Warning and Cautions 1.1 FEATURES ............1.2 WARNING AND CAUTIONS ....1.3 WARNING ............1.4 CAUTIONS ............

  • Page 6: Chapter 1. Warning And Cautions

    Chapter 1. Warning and Cautions 1.1 FEATURES 1) High Speed - This is the high speed dome camera which has wide speed range (Min. 0.05deg/sec ~ Max. 400deg/sec) - Speed is controlled by user's option or the zoom magnification. 2) Preset & Motion Detection - A maximum of 128 preset positions and 8 tour functions can be set.

  • Page 7: Warning And Cautions

    Chapter 1. Warning and Cautions 1.2 WARNING AND CAUTIONS Please carefully check these particulars for the safe use. 1.2.1 EXAMPLES OF SIGN This symbol indicates the cause of death or serious WARNING injury to the user. This symbol indicates the cause of equipment CAUTION damage.

  • Page 8: Warning

    Chapter 1. Warning and Cautions 1.3 WARNING WARNING Install the product on firm and durable position. Use a recommended adaptor by the manual. Unplug the unit when there is any sign of electric leakage, short circuit or smog by burn. Do not disassemble or remodel the product.

  • Page 9: Cautions

    Chapter 1. Warning and Cautions 1.4 CAUTION Caution This product should be installed by expert installer. Do not install the product at the position exposed to the direct sun. Do not install the product where lighting is unstable. Do not drop, hit strongly nor vibrate the product. Please use the product at the proper environment as follow.
  • Page 10 Chapter 2. Overview and How to install 2.1 ACCESSORIES ..........2.2 OVERVIEW 1 ..........2.3 OVERVIEW 2 ..........2.4 HOW TO INSTALL ........2.5 SPECIFICATION ........

  • Page 11: Chapter 2. Overview And How To Install

    Chapter 2. Overview and How to install 2.1 ACCESSORIES FIXING SCREW : MOUNT BRACKET SCREW 4x25 Tp1 BIND BK, 3EA ANCHOR : 6x30, 3EA CORE ACCESSORY RING TERMINAL BLOCK TERMINAL 15EDGR-3.81 - 2P, FMALE USER MANUAL TERMINAL 15EDGR-3.81 - 3P, FMALE TERMINAL 15EDGR-3.81 - 9P, FMALE TERMINAL 15EDGR-3.81 - 10P, FMALE...

  • Page 12: Overview 1

    Chapter 2. Overview and How to install 2.2 OVERVIEW 1 2.2.1 Dimension Ø220 Ø150 Ø161...

  • Page 13: Designation

    Chapter 2. Overview and How to install 2.2.2 Designation MOUNTING BRACKET ACCESSORY RING TERMINAL PART BODY PART DOME COVER...

  • Page 14: Camera Configuration

    Chapter 2. Overview and How to install 2.2.3 Camera configuration ①ADDRESS switch - It is to set camera ID to connect multiple cameras. - Max. 255 of camera IDs(as binary notation) are available. - Camera ID setting is as described on <Table. 5>. ②PROTOCOL switch - Protocol can be set manually or automatically.
  • Page 15 Chapter 2. Overview and How to install Protocol Auto SK-P Pelco-D [Table 1] PROTOCOL SETTING Baudrate 2400 bps 4800 bps 9600 bps 19200 bps [Table 2] BAUDRATE SWITCH Communication RS-485 RS-422 [Table 3] RS485 / 422 SETTING Termination [Table 4] TERMINATION SETTING Camera ID...
  • Page 16 Chapter 2. Overview and How to install ㆍ ㆍ The rest is omitted. [Table 5] CAMERA ID SETTING...

  • Page 17: Overview 2

    Chapter 2. Overview and How to install 2.3 OVERVIEW 2 2.3.1 Terminal configuration ①POWER TERMINAL : Use AC24V ± 10%, Max 1.5A ②AUX2 : ALARM OUTPUT(OPEN COLLECTOR) ③AUX1 : ALARM OUTPUT(RELAY) ④RX+/RX- : - T erminal for receiving the data on RS-422 com- munication.
  • Page 18 Chapter 2. Overview and How to install POWER AC 24V 24V, 1.5A) External ALARM OUT (5V, Logic) RELAY 120V, 2A DC 24V ) Half Duplex Type A(+) Rx + CONTROLLER INTERFACE RS-422 / RS-485 Rx - Controller B(-) Tx + Tx - Full Duplex Type Rx(+) Controller...

  • Page 19: How To Install

    Chapter 2. Overview and How to install 2.4 HOW TO INSTALL 2.4.1 Connecting the cable to terminal block. Please refer to [Pic. 3&4] for the connection. [Pic 5] INSTALLATION 1 2.4.2 Switch setting Please refer to [Table 1~5] for switch setting.

  • Page 20: Camera Installation

    Chapter 2. Overview and How to install 2.4.3 Camera installation 2.4.3.1 Remove the protective sheet from the inner dome. 1) Pull out the outer dome cover. 2) Remove the protective sheet from the inner dome. 3) Twist the outer dome cover clockwise. ※Remove the protective sheet of the outer dome cover before operating camera.
  • Page 21 Chapter 2. Overview and How to install 2.4.3.3 Mount the terminal part on the ceiling. 1) Make a hole of 90 ~ 110mm in diameter. 2) Using the mounting bracket as a tem- plate drill three holes in the ceiling to mount the bracket.
  • Page 22 Chapter 2. Overview and How to install 2.4.3.6 Address and Setup switch setting 1) Set the switch on the bottom of the body part. 2) Refer to [T able 1~5] for switch setup. 3) Check if D-SUB Connector"Open". D-SUB CONNECTOR POSITION CHECK [Pic 10] SWITCH SETUP 2.4.3.7 Restore the safety wire...
  • Page 23 Chapter 2. Overview and How to install 2.4.3.8 Combine the terminal part and body part 1) Place the summit of a triangle on the body part to the center of "U" groove on the terminal part. 2) Turn the body part clockwise. 3) Fasten the fixing screws on the body part.

  • Page 24: Specification

    Chapter 2. Overview and How to install 2.5 SPECIFICATION Item Specification Type 1 Type Zoom 27X Optical, 16X Digital 37X Optical, 16X Digital 1/4" COLOR SONY SUPER HAD CCD TV Type NTSC, PAL Effective Pixel 768(H) X 494(V) PIXEL(NTSC), 752(H) X 582(V) PIXEL(PAL) Resolution Color : 600 TV-Line, B/W : 700 TV-Line Min.
  • Page 25 Chapter 3. Menu configuration and operating 3.1 PTZ CONTROL ........... 3.2 TIME SET ............3.3 PRIVACY ZONE ......... 3.4 ALARM IN ............3.5 ALARM OUT ..........3.6 SETUP .............. 3.7 SYSTEM ............
  • Page 26 Chapter 3. Menu configuration and operating Not only basic function such as Pan/Tilt/Zoom but additional functions are available for this camera. Additional functions are as follow. Setting functions of speed dome such as Preset and Motion PRESET detection Setting function of speed dome such as Sequence/Random MOTION CONTROL Scan, Custom/CW/CCW Scan and Pattern/Schedule Set current time...

  • Page 27: Chapter 3. Menu Configuration And Operating

    Chapter 3. Menu configuration and operating This is first page of the OSD menu. MAIN MENU -------------------------------- Preset Motion Control Time Set Privacy Zone Alarm In Alarm Out Setup System Exit 3.1 PTZ CONTROL 3.1.1 PRESET(Path : MAIN MENU / PRESET) This function is to save, delete, or call the specific position of Pan, Tilt, Zoom or Focus by user's option.
  • Page 28 Chapter 3. Menu configuration and operating ID SETUP ------------------------------------ ABCDEFGHIJKLMNOPQRSTUVYXYZ abcd efgh i jklmn o pqrs tuv wx y z 1 2 3 4 5 6 7 8 9 0 + - 4 / ! # * ~ , . : - ~ < > [ ] $ % & <<...

  • Page 29: Motion Detection

    Chapter 3. Menu configuration and operating 3.1.2 MOTION DETECTION(Path : MAIN MENU / PRESET / MOTION DETECTION) This is the sub menu for preset. You can set eight specific zones on the screen and upon detection of motion on the zones, the camera would operate as what you set. MOTION DETECT -------------------------- AUX Active: AUX1...
  • Page 30 Chapter 3. Menu configuration and operating EDIT AREA --------------------------------- Zone Enable ├ Zone1: ├ Zone2: ├ Zone3: └ Zone4: Set Position Back 3.1.2.2 MOTION DETECTION AREA SETTING 1) Zone Enable : Select 4 Motion Detection Zones On/Off 2) Set Position : Set the position and size the selected zone.

  • Page 31: Auto Scan

    Chapter 3. Menu configuration and operating 3.1.3. AUTO SCAN(Path : MAIN MENU / MOTION CONTROL / AUTO SCAN) This function is to make the camera panning automatically at the fixed speed. "TILT" or "ZOOM" function can be set by user's option on AUTO SCAN mode. <Notice>...
  • Page 32 Chapter 3. Menu configuration and operating Move Pan To Set R. Position Move Pan To Set L. Position Press Iris Open Or Menu Press Iris Open Or Menu 4) Run Auto Scan : Start the Auto scan by user setting mode. <Notice>...

  • Page 33: Seq Scan

    Chapter 3. Menu configuration and operating 3.1.4 SEQ SCAN(Path : MAIN MENU / MOTION CONTROL / SEQ SCAN) This function is to move the camera to the memorized positions one by one. SEQ SCAN ---------------------------------- Seq Group: Run Seq Scan Back Exit 3.1.4.1 SEQ SCAN SETTING...

  • Page 34: Random Scan

    Chapter 3. Menu configuration and operating 3.1.5 RANDOM SCAN(Path : MAIN MENU / MOTION CONTROL / RANDOM SCAN) This function is to move the camera to the memorized positions randomly. RANDOM SCAN -------------------------- Random Group: Run Random Scan Back Exit 3.1.5.1 RANDOM SCAN SETTING 1) Random Group : Register up to 8 groups.

  • Page 35: Pattern Scan

    Chapter 3. Menu configuration and operating 3.1.6 PATTERN SCAN(Path : MAIN MENU / MOTION CONTROL / PATTERN SCAN) This function is to memorize the position by panning, tilting , or zooming for a while and move the camera to the memorized positions. Save up to 4 patterns . "PATTERN SCAN"...

  • Page 36: Time Schedule

    Chapter 3. Menu configuration and operating 3.1.7 TIME SCHEDULE( Path : MAIN MENU / MOTION CONTROL / TIME SCHEDULE) Schedule enables you to schedule a sequencing by day and time. Up to 8 timeline can be selected for a day. TIME SCHEDULE ------------------------- Number: Enable:...
  • Page 37 Chapter 3. Menu configuration and operating TIME TABLE -------------------------------- No Ena Start Custom 13:30 ~ 14:55 SEQ3 00:00 ~ 00:00 SEQ3 00:00 ~ 00:00 SEQ3 00:00 ~ 00:00 SEQ3 00:00 ~ 00:00 SEQ3 00:00 ~ 00:00 SEQ3 00:00 ~ 00:00 SEQ3 00:00 ~ 00:00 Press Menu To Exit...

  • Page 38: Time Set

    Chapter 3. Menu configuration and operating 3.2 TIME SET(Path : MAIN MENU / TIME SET) Customize the camera clock; you can schedule sequence actions to perform automatically. <Notice> If the time error occurs, you should replace the battery in the camera. TIME SET ----------------------------------- Time Format: Date Format:...

  • Page 39: Privacy Zone

    Chapter 3. Menu configuration and operating 3.3 PRIVACY ZONE(Path : MAIN MENU / PRIVACY ZONE) For privacy, this camera provides a function for hiding the points for which area masking is selected from screen. Area masking can be set up for up to 16 points. Setting up more than 5 points may cause masks to move slow.
  • Page 40 Chapter 3. Menu configuration and operating ① ② Decide To Mask Size Move To Adjust Position Move : P/T/Z Command INC: ↑→ DEC: ↓← ③ Decide To Mask Position Move: P/T Command...

  • Page 41: Alarm In

    Chapter 3. Menu configuration and operating 3.4 ALARM IN(Path : MAIN MENU / ALARM IN) This function is to activate alarm upon detection of sensor.. ALARM IN ---------------------------------- Sensor Num: Priority: Input Contact: Activate ├ AUX: ├ Preset: └ Dome Act: Back Exit 3.4.1 ALARM IN SETTING...

  • Page 42: Alarm Out

    Chapter 3. Menu configuration and operating 3.5 ALARM OUT(Path : MAIN MENU / ALARM OUT) To set the output against the alarm input. ALARM OUT ------------------------------- AUX1 Set ├ Mode: └ Dwell Time: AUX2 Set ├ Mode: └ Dwell Time: Back Exit 1) Mode :...

  • Page 43: Setup

    Chapter 3. Menu configuration and operating 3.6 SETUP(Path : MAIN MENU / SETUP) This is setup for camera function such as display, Pan/Tilt and etc. SETUP --------------------------------------- Language : English Camera Setup Pan/Tilt Setup Display Setup Auto Parking Back Exit : The camera supports multi-language..
  • Page 44 Chapter 3. Menu configuration and operating ㆍAuto : The picture switches automatically color to B/W as the light level changes. ㆍNight : The picture switches to B/W. ㆍColor : The picture switches to color. 3) SSDR : SSDR illuminates darker spots of an image while retaining the same light level for brighter spots to even out the overall brightness of the image with high contrast between bright and dark spots.(On/Off : Enables or disables SSDR.) ㆍRange :...
  • Page 45 Chapter 3. Menu configuration and operating - Mode : Activate / Deactivate BLC - Level : Adjust the level - Top : Determines the upper end of BLC area is to be used.(000 ~ 100) - Bottom : Determines the lower end of BLC area is to be used.(000 ~ 100) - Left : Determines the left end of BLC area is to be used.(000 ~ 100) - Right :...
  • Page 46 Chapter 3. Menu configuration and operating 8) SSNR : SSNR significantly reduces the amount of low luminance noise.(Off / Low / Middle / High) 9) Shutter : Control image brightness by adjusting shutter speed. ㆍESC : Automatic shutter speed setting.(optimal) ㆍAnti_FLK : Flicker-free mode.(NTSC : 1/100, PAL : 1/120) ㆍMANUAL :...

  • Page 47: Pan/Tilt Setup

    Chapter 3. Menu configuration and operating 3.6.2 PAN/TILT SETUP(Path : MAIN MENU / SETUP / PAN/TILT SETUP) This is to set the functions related to PAN/TIL T. PAN/TILT SETUP ------------------------- Auto Flip: Prop.Pan: Preset Freeze: Manual Stop Limit: └ Limit Set Set Front Power On Act: Tilt Offset:...
  • Page 48 Chapter 3. Menu configuration and operating 5) Set Front : To memorize the front of the camera. Move P/T/Z To Set Position Press Iris open To Set Press Iris Close To Cancel : Move P/T/Z to set front direction and then press the IRIS OPEN key to finish the setup. 6) Power On Act : Set the program to operate when the camera turns on.

  • Page 49: Display Setup

    Chapter 3. Menu configuration and operating 3.6.3 DISPLAY SETUP(Path : MAIN MENU / SETUP / DISPLAY SETUP) Set the displays of camera name, camera address, preset label or zoom label. DISPLAY SETUP -------------------------- Cam Name> SPEED.DOME.CAM Cam Name Disp: Cam ADDR Disp: Preset Label Disp: LBL+NUM Zoom Label Disp:...
  • Page 50 Chapter 3. Menu configuration and operating 7) Set Positions : Move joy stick left or right to select the position of label and press "IRIS OPEN" button to confirm. ADD SPEED.DOME.CAM P.NAME DATE DSP TIME DSP XZOOM → → : Setting a positon of ID in order of precedence(Cam Name Cam Addr Preset →...

  • Page 51: Auto Parking

    Chapter 3. Menu configuration and operating 3.6.4 AUTO PARKING(Path : MAIN MENU / SETUP / AUTO PARKING) If auto parking is set to ON, the camera runs assigned funtion automatically if there is no PTZ command during assigned dwell time. AUTO PARKING --------------------------- A.P ON/OFF A.P Dwell...

  • Page 52: System

    Chapter 3. Menu configuration and operating 3.7 SYSTEM(Path : MAIN MENU / SYSTEM) Set the camera's option. SYSTEM ------------------------------------- Reboot System Reset Password Set ├ Lock Enable: └ New Password System Information Back Exit 3.7.1 REBOOT SYSTEM Reboot system without any deletion of setting. 3.7.2 RESET Factory reset.

  • Page 53: Password Set

    Chapter 3. Menu configuration and operating 3.7.3 PASSWORD SET Password Set : To prevent from changing the setting values by other users, an user can use password to lock the camera. Factory default is "1 2 3 4". <Notice> Default password is "1234" ㆍLock Enable : Locked with password.

  • Page 54: System Information

    Chapter 3. Menu configuration and operating PASSWORD COMPARE ----------------- ABCDEFGHIJKLMNOPQRSTUVYXYZ abcd efgh i jklmn o pqrs tuv wx y z 1 2 3 4 5 6 7 8 9 0 + - 4 / ! # * ~ , . : - ~ < > [ ] $ % & <<...
  • Page 55 Chapter 3. Menu configuration and operating PELCO-D Extended Command Hot Key description for Pelco-D Protocol user. PELCO-D PROTOCOL EXTENDED COMMAND SET for 36X SPEED DOME CAMERA Preset60 Move SET PATTERN STOP Preset61 Move SET PATTERN START 1 Preset62 Move SET PATTERN START 2 Preset63 Move SET PATTERN START 3 Preset64 Move...

  • Page 56: Troubleshooting

    <Supplement> Troubleshooting [Troubleshooting] Problem Solution ㆍCheck the power cord and line connection. ㆍCheck the adaptor for the camera. Initial operation is not working. ㆍIs there no fuse or disconnected fuse? Check the current consumption and use the recommended fuse. ㆍCheck the video cable and line connection. Nothing appears on the screen.

  • Page 57: Warranty Card

    <Supplement> Warranty Card [Warranty Card] PRODUCT NAME SPEED DOME CAMERA TERM OF THE GUARANTEE MODEL NO. FOR ONE YEAR DATE OF PURCHASE AFTER THE DATE OF PURCHASE NAME CUSTOMER ADDRESS NAME SELLER ADDRESS THE HISTORY OF AFTER-SALES SERVICE PERSON IN YEAR PROBLEM CHARGE...
