For some HSI's the glideslope indicator may not be visible unless it is receiving a valid
signal from the localizer (ILS Energize is present). If this is the case, leave these signals
set to VALID following completion of the FLAG TEST in order to see the glideslope
indicator.
Press the TEST or BACK smart key to return to the Ground Maintenance Test menu.
3.3.1.1.4 Annunciator Lamp Output Test
The LAMP OUTPUT TEST page allows testing of each of the annunciator outputs. While on the TEST
menu page, press the LAMP OUTPUT TEST line select key to display the LAMP OUTPUT Page. The
LAMP OUTPUT page is shown in Figure 3-14.
Turn the large, outer knob to select the annunciator output to be tested. The currently selected lamp output
is indicated with a white box around it. Turn the small, inner knob to change the setting of the selected
annunciator lamp output – a green background indicates that the annunciator output is ON (grounded), and
a black background indicates that the annunciator output is OFF (open). Details for each annunciator lamp
output that can be tested are found in Table 3-3.
Apollo CNX80 Installation Manual
NOTE

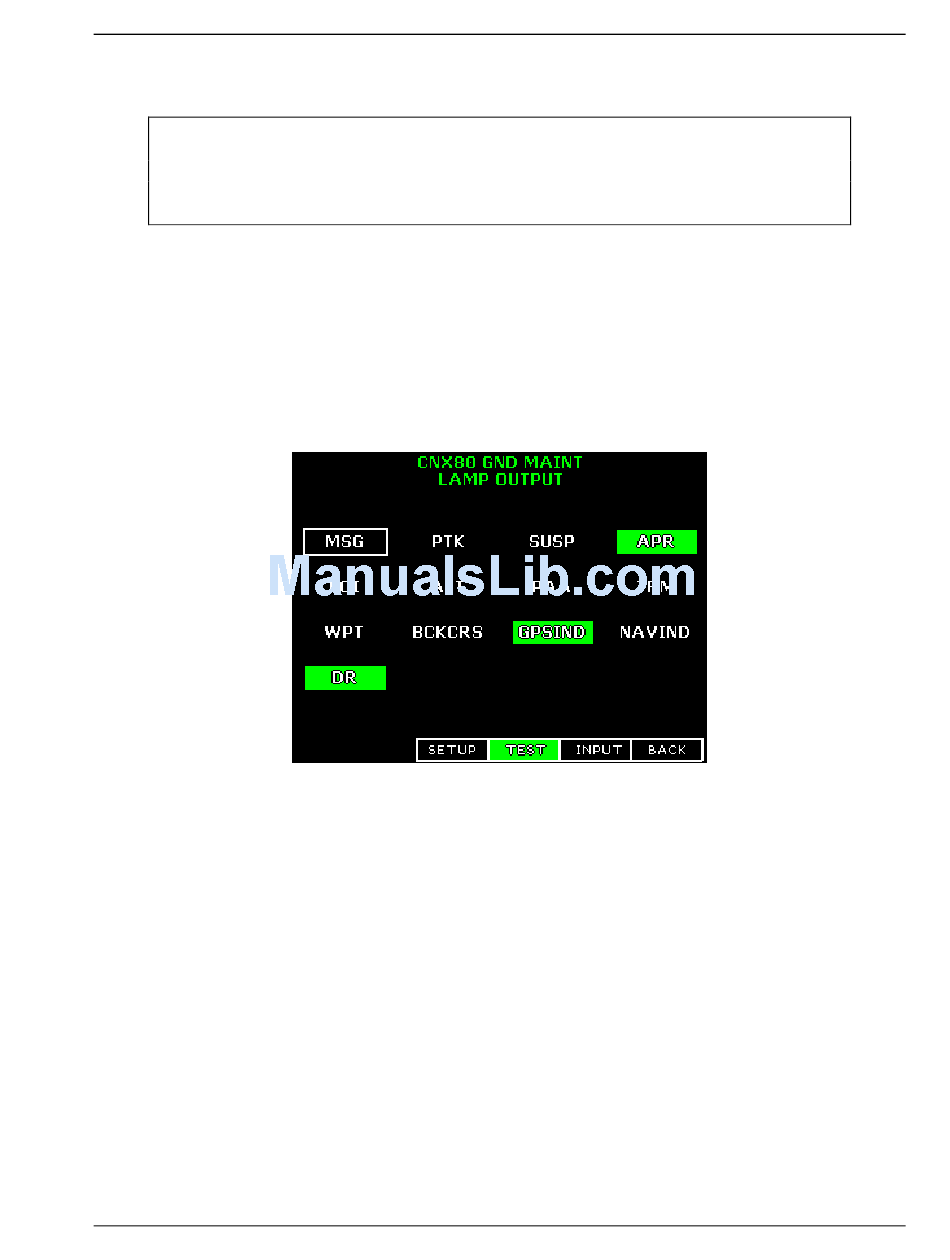

Figure 3-14 - Lamp Output Test
560-0982-00 Rev D
Post-Installation Configuration & Checkout
3-13
