Garmin Apollo CNX80 Installation Manual page 159

CNX80
3 P7
OBS_H {R Hi} 24
OBS_C {R Lo} 25
OBS_D {S1} 7
OBS_E {S3} 26
OBS_F {S4} 16
OBS_G {S2} 34
NAV+ VALID (FLAG) 10
NAV- VALID (FLAG) 29
GS+ VALID (FLAG) 28
GS- VALID (FLAG) 32
GSI+ UP 30
GSI+ DOWN 31
CDI+ L 14
CDI+ R
13
+TO (FLAG) 12
+FROM (FLAG) 11
P5
PRECISION APPR 68
P7
COMPOSITE 19
GND 37
GPS INDICATOR
17
CDI SELECT 8
P5
6
PROVISIONAL INTERFACE
A 4
ARINC 429 #1 OUT
B 24
5
A 8
ARINC 429 #2 IN
B 28
SUSPEND IN 76
P1
7
RS232 TXD2 22
SERIAL GND 2 3

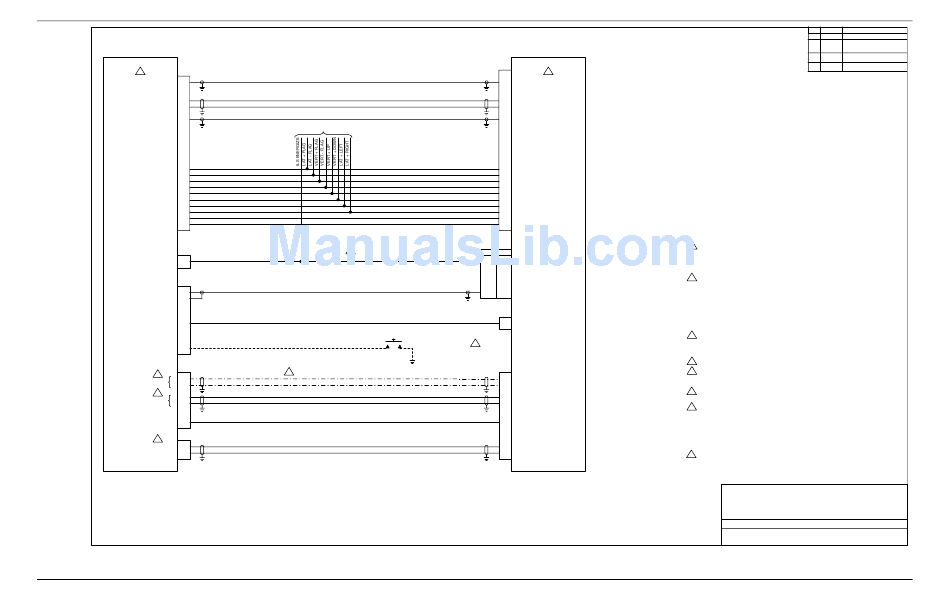

Figure D- 13 - CNX80 to Sandel SN3308 Nav Display Interconnect Diagram
Apollo CNX80 Installation Manual 560-0982-00 Rev D
TO AUTOPILOT
9
REMOTE CDI
SELECT BUTTON
(OPTIONAL)
10
SANDEL SN3308
P1
4
13 OBS RSLVR H (IN)
32 OBS RSLVR COS OUT
28 OBS RSLVR E/F (VREF)
14 OBS RSLVR SIN OUT
18 NAV + FLAG
36 NAV - FLAG
15 GS + FLAG
GS - FLAG
33
16 GS + UP
34 GS + DOWN
37 NAV + L
NAV + R
19
17 +TO
35 +FROM
P1 P1
Nav 1 Nav 2
27 8 ILS ENERGIZE
29 10 COMPOSITE IN
P2
30 GPS SELECTED (IN)
8
P3
10 429-1 IN-A
28 429-1 IN-B
11 429 OUT-A
29 429 OUT-B
2 HOLD CMD OUT
34 RS232 IN
16 RS232 GND
Appendix D - Interconnect Diagrams
Rev Date Description
- 01/26/03 Initial Release
A 05/22/03 Changed ARINC 429 In #2 to
the preferred input. Revised
flag notes. Added note 7
B 07/15/03 Changed CNX80 Precision Appr
from P7-68 to P5-68.
C 08/05/03 Corrected note 9 to change
P7-68 to P5-68.
NOTES:
1. ALL WIRES 24 AWG OR LARGER UNLESS OTHERWISE SPECIFIED.
2. AT CNX80, CONNECT SHIELD GROUNDS TO THE REAR OF THE MOUNTING
FRAME ON THE CONNECTOR PLATE -- THE SHIELD LEADS MUST BE LESS
THAN 3.0 ". CONNECT OTHER SHIELD GROUNDS TO AIRCRAFT CHASSIS
WITH AS SHORT A CONDUCTOR AS PRACTICAL.
3. CNX80 SERIAL PORT SETUP ITEMS:
SERIAL SETUP (RX / TX):
SERIAL PORT 2: XXX / MAPCOM (9600)
ARINC 429 SETUP:
CH2_IN: AHRS LOW
4. SANDEL SN3308 SETUP ITEMS:
LNAV1/2 SELECT: IIMORROW GX (RS-232 ENH)
LNAV1/2 CHANGE: ANNUN=SERIAL, COURSE=DTK, DEVIATION=ANALOG
NAV1/2: NAV-1/-2 ENABLE=YES, PORT=ANALOG, ILS=VALID LOW
RELAY MODE - SLAVE
RELAY SENSE: GPS-1/2=P2-30 (GPS 1 OR 2 AS APPROPRIATE)
THIS ALLOWS THE CNX80 TO CONTROL THE SELECTION OF THE NAV
SOURCE. REFER TO SN3308 INSTALLATION MANUAL FOR ADDITIONAL
DETAILS.
5. THE CNX80 CAN RECEIVE MAGNETIC HEADING FROM THE SN3308. ARINC
429 #1 IN (P5-7/27) MAY BE USED INSTEAD OF ARINC 429#2 IN. IF ARINC 429
#1 INPUT IS USED INSTEAD, IT MUST BE SET TO RECEIVE ADC LOW-SPEED
DATA.
6. ARINC 429 #2 OUT (P5-5/25) MAY BE USED INSTEAD OF ARINC 429#1 OUT.
7. RS232 TXD5 (P5-21/41) OR RS232 TXD1 (P1-5/23) MAY BE USED INSTEAD OF
RS232 TXD2. THE TRANSMIT PORT THAT IS USED MUST BE SET TO
XXX / MAPCOM (9600).
8. IF IMPLEMENTED, A MOMENTARY SWITCH MUST BE USED FOR THE
REMOTE COM FLIP FLOP FEATURE.
9. USE OF THE CNX80 PRECISION APPROACH DISCRETE (P5-68) WILL NOT
ALLOW THE GLIDESLOPE INDICATOR TO BE DISPLAYED ON THE SANDEL
UNLESS THE CNX80 MAIN CDI IS SELECTED TO NAV. IF IT IS DESIRED TO
HAVE THE GLIDESLOPE INDICATOR DISPLAYED WHENEVER A LOCALIZER IS
TUNED, P5-68 MUST BE DIODE-OR'D WITH THE ILS ENERGIZE DISCRETE
OUTPUT (P7-33). THIS MUST BE DONE AFTER THE CONNECTION TO THE
AUTOPILOT, SO THE ILS ENERGIZE OUTPUT CANNOT DRIVE THE
AUTOPILOT.
10
THIS PROVISIONAL ARINC 429 INTERFACE IS NOT PRESENTLY USED. IT
WILL BE UTILIZED IN A FUTURE VERSION OF THE CNX80 AND IT IS
RECOMMENDED THAT IT BE INSTALLED AT THE TIME OF CNX80
INSTALLATION.
Garmin AT, Inc
2345 Turner Road S.E., Salem, OR 97302
Phone: 503.581-8101 http://www.garminat.com
CNX80 INSTALLATION DRAWING
SANDEL SN3308 NAVIGATION DISPLAY
D-27
