General Information
1.2.2 S I
YSTEM NTERFACES
The interfaces for a typical single CNX80 avionics stack are shown in Figure 1-2, while the interfaces for a
typical dual CNX80 avionics stack are shown in Figure 1-3. The available interfaces are further described
in the following sections.

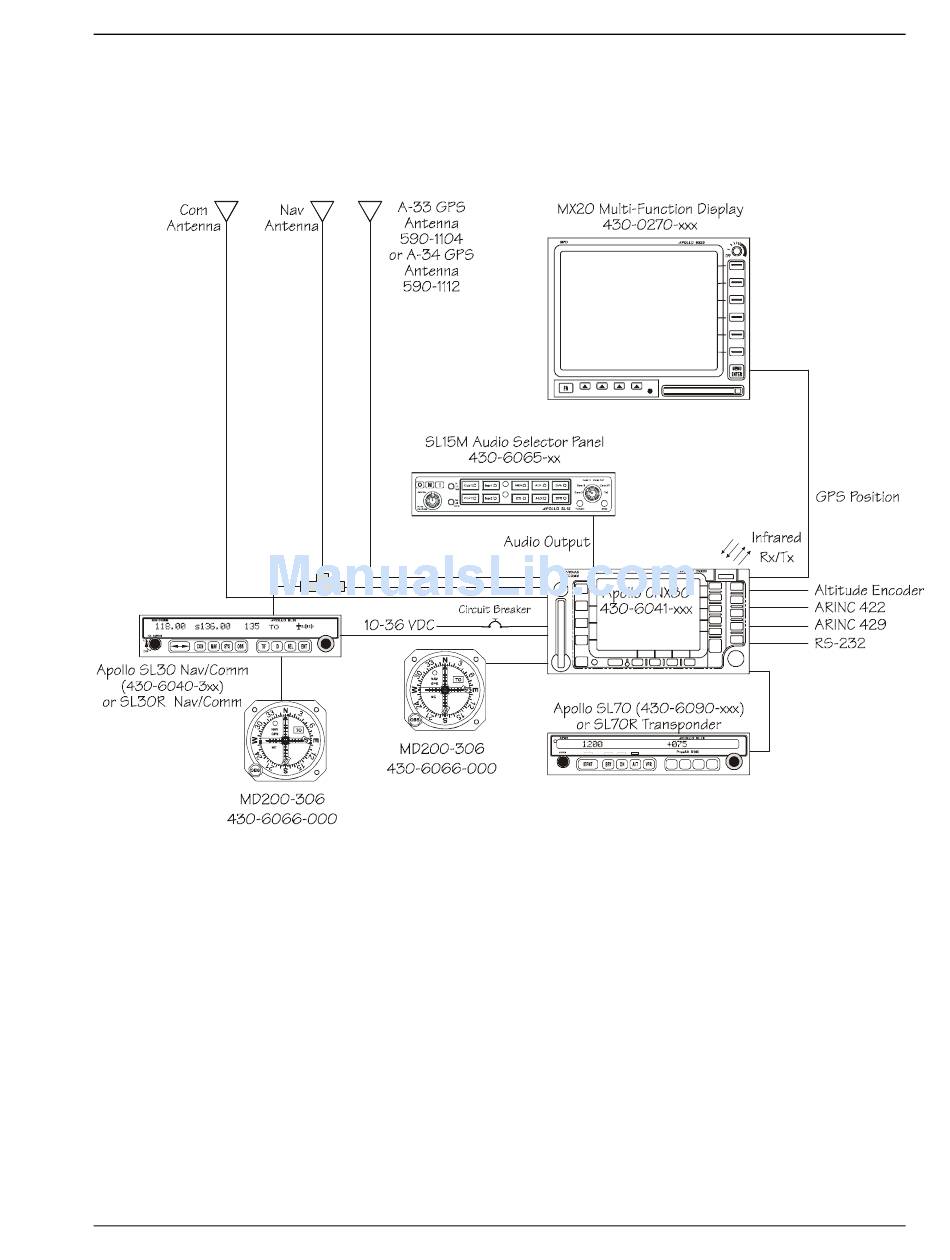

Figure 1-2 - Sample Single CNX-80 System Diagram
1-3
Apollo CNX80 Installation Manual 560-0982-00 Rev D
