D Iagram - Garmin Apollo CNX80 Installation Manual

CNX80
P5
AUX CDI + VALID 49
AUX CDI - VALID 54
AUX VDI + VALID 52
AUX VDI - VALID 55
AUX CDI +TO 47
AUX CDI +FROM 48
AUX GS + UP 50
AUX GS + DOWN 51
AUX CDI + LEFT 45
AUX CDI + RIGHT 46
P7
COMPOSITE OUT 19
COMPOSITE GND 37
ILS ENERGIZE 33

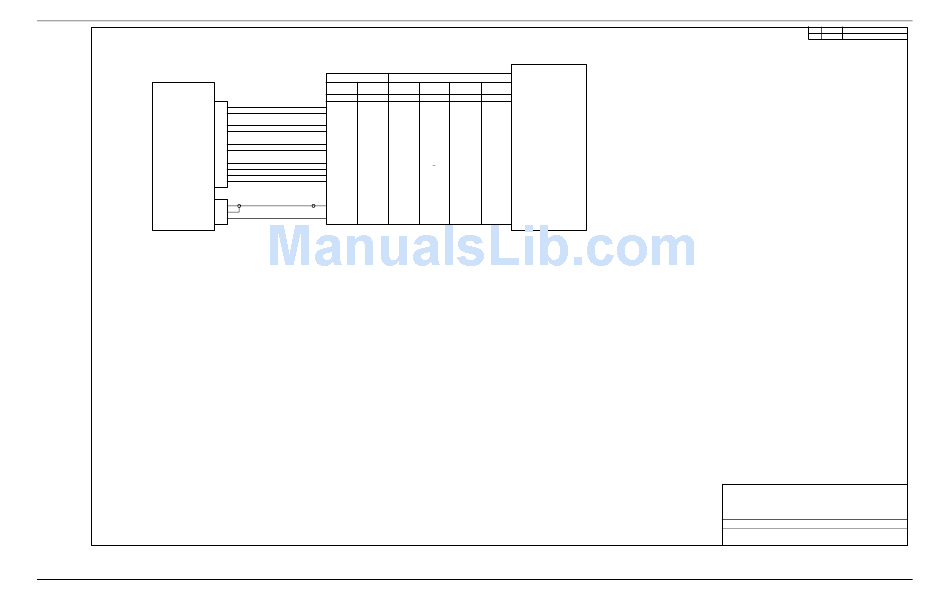

Figure D- 3 - Auxiliary CDI Interconnect Diagram
Apollo CNX80 Installation Manual 560-0982-00 Rev D
MID-CONTINENT BENDIX/KING
MD200- MD200-
KI 203 KI 207 KI 208 KI 208A
302/303 306/307
P1 P1 P2031 P2071 P2081 P208A1
7 7 - N - 48
8 8 - F - 3
- 15 - H - -
- 16 - J - -
9 9 - e - 43
10 10 - S - 42
- 13 - k - -
- 14 - m - -
11 11 - n - 20
12 12 - j - 21
- - Y - 2 6
- - K - 4 10
NAVIGATION
INDICATOR
NAV+ FLAG
NAV- FLAG
GS+ FLAG
GS- FLAG
+TO FLAG
+FROM FLAG
+ UP
+ DOWN
+ LEFT
+ RIGHT
VOR/LOC COMPOSITE IN
ILS ENERGIZE
Appendix D - Interconnect Diagrams
Rev Date Description
- 03/05/03 Initial Release
1. ALL WIRES 24 AWG OR LARGER UNLESS OTHERWISE SPECIFIED.
2. CONNECT SHIELD GROUNDS TO AIRCRAFT CHASSIS WITH AS
SHORT A CONDUCTOR AS PRACTICAL.
3. THE AUX CDI OUTPUT IS ALWAYS BASED UPON GPS DATA. THE
COMPOSITE OUTPUT IS ALWAYS BASED UPON VOR DATA.
4. OTHER EQUIVALENT PARTS MAY BE INTERFACED TO THE CNX80.
SEE APPROPRIATE INSTALLATION MANUALS FOR THAT
EQUIPMENT.
Garmin AT, Inc
2345 Turner Road S.E., Salem, OR 97302
Phone: 503.581-8101 http://www.garminat.com
CNX80 INSTALLATION DRAWING
AUX (GPS) CDI / VOR COMPOSITE
D-7
