Garmin Apollo CNX80 Installation Manual page 147

KING SERIAL DME (PANEL-MOUNTED DME)
CNX80 #1
P5
DME CLOCK BUS 14
DME DATA BUS 15
DME CHANNEL REQ 35
DME SELECT IN 34
CNX80 #2
P5
DME CLOCK BUS 14
DME DATA BUS 15
DME CHANNEL REQ 35
DME SELECT IN 34
KING SERIAL DME (REMOTE-MOUNTED DME)
CNX80 #1
P5
DME CLOCK BUS 14
DME DATA BUS 15
DME CHANNEL REQ 35
DME SELECT IN 34
CNX80 #2
P5
DME CLOCK BUS 14
DME DATA BUS 15
DME CHANNEL REQ 35
DME SELECT IN 34

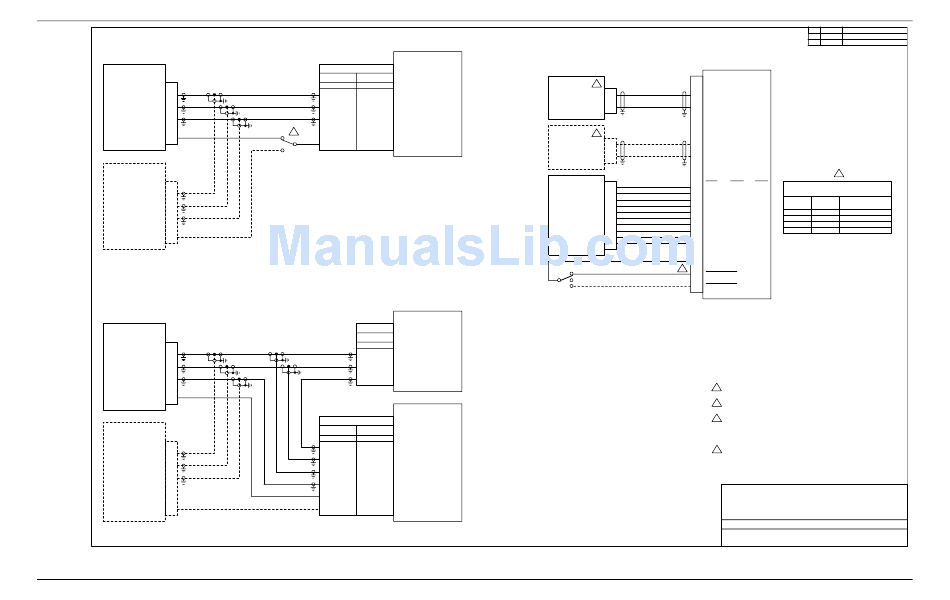

Figure D- 7 - DME Tuning Interconnect Diagram
Apollo CNX80 Installation Manual 560-0982-00 Rev D
DME TRANSCEIVER
BENDIX/KING
KN62/62A KN64
P621/P62A1 P641
14 14 CLOCK BUS
13 13 DATA BUS
L L RNAV/CHANNEL REQ
3
NAV 1
C C DME COMMON
NAV 2
NAV SELECTION SW
DME TRANSCEIVER
BENDIX/KING
KN63
P631
F CLOCK BUS
6 DATA BUS
D DME REQUEST
DME INDICATOR
BENDIX/KING
KDI 572 KDI 574
P5721 P5741
15 15 DME REQUEST
11 11 DATA BUS
12 12 CLOCK BUS
17 17 RNAV REQUEST
48 48 NAV 1 COMMON
49 49 NAV 2 COMMON
2x5, SLIP AND BCD DME TUNING WITH DB30
DB30 INTERFACE UNIT
DB78
CNX80#1 N/C 3 TxD1 (to NAV1)
4 P7
RESERVED TXD 5 2 RxD1 (from NAV1)
GROUND 3 22 SERIAL GROUND
CNX80 #2 N/C 5 TxD2 (to NAV2)
4 P7
RESERVED TXD 5 4 RxD2 (from NAV2)
GROUND 3 24 SERIAL GROUND
Shifted
BCD
DME
TRANSCEIVER
12 M8
13 M4
14 M2
15 M1
16 K800
17 K400
18 K200
19 K100
20 K50
60 NAV SELECT GROUND
6
NAV 1
40 TUNE NAV1
HOLD
N/C
NAV 2
61 TUNE NAV2
NAV SELECTION SW
NOTES:
1. ALL WIRES 24 AWG OR LARGER UNLESS OTHERWISE SPECIFIED.
2. AT CNX80, CONNECT SHIELD GROUNDS TO THE REAR OF THE
MOUNTING FRAME ON THE CONNECTOR PLATE -- THE SHIELD
LEADS MUST BE LESS THAN 3.0 ". CONNECT OTHER SHIELD
GROUNDS TO AIRCRAFT CHASSIS WITH AS SHORT A CONDUCTOR
AS PRACTICAL.
3. THE NAV SELECTION SWITCH IS NOT REQUIRED IF ONLY ONE
CNX80 IS INSTALLED.
4. THE CNX80 WILL AUTOMATICALLY TUNE THE DME STATION BASED
UPON THE VOR STATION THAT IS CURRENTLY ACTIVE.
5. THE DB30 DME TUNING FORMAT MUST BE CONFIGURED TO
MATCH THE DME TRANSCEIVER FORMAT. CONFIG A (PIN 25) USES
PIN 45 (DME CONFIG GROUND) FOR GND, AND CONFIG B (PIN 27)
USES PIN 47 (DME CONFIG GROUND) FOR GND. REFER TO THE
DB30 INSTALLATION MANUAL FOR ADDITIONAL DETAILS.
6. IF NAV 2 IS NOT USED, DB30 PIN 40 MAY BE JUMPERED DIRECTLY
TO DB30 PIN 60.
7. OTHER EQUIVALENT PARTS MAY BE INTERFACED TO THE CNX80.
SEE APPROPRIATE INSTALLATION MANUALS FOR THAT
EQUIPMENT.
Appendix D - Interconnect Diagrams
Rev Date Description
- 03/05/03 Initial Release
A 06/09/03 Added UPSAT DB30 wiring.
2x5 Slip
5
Code Code
PIN CONFIGURATION FOR
1MA M0
DISCRETE TUNING FORMATS
1ME M1
1MC M2 Config A Config B
Tuning Format
1MD M3 (pin 25) (pin 26)
.1MA K0 GND GND BCD Discrete
.1ME K1 OPEN GND Slip Code Discrete
.1MC K2 GND OPEN 2 x 5 Discrete
.01MD K3 OPEN OPEN Serial DME
.01MC K50
Garmin AT, Inc
2345 Turner Road S.E., Salem, OR 97302
Phone: 503.581-8101 http://www.garminat.com
CNX80 INSTALLATION DRAWING
DME TUNING
D-15
