Bodyworx A811 Owner's Manual

Magnetic upright bike
Hide thumbs

Advertisement

Table of Contents

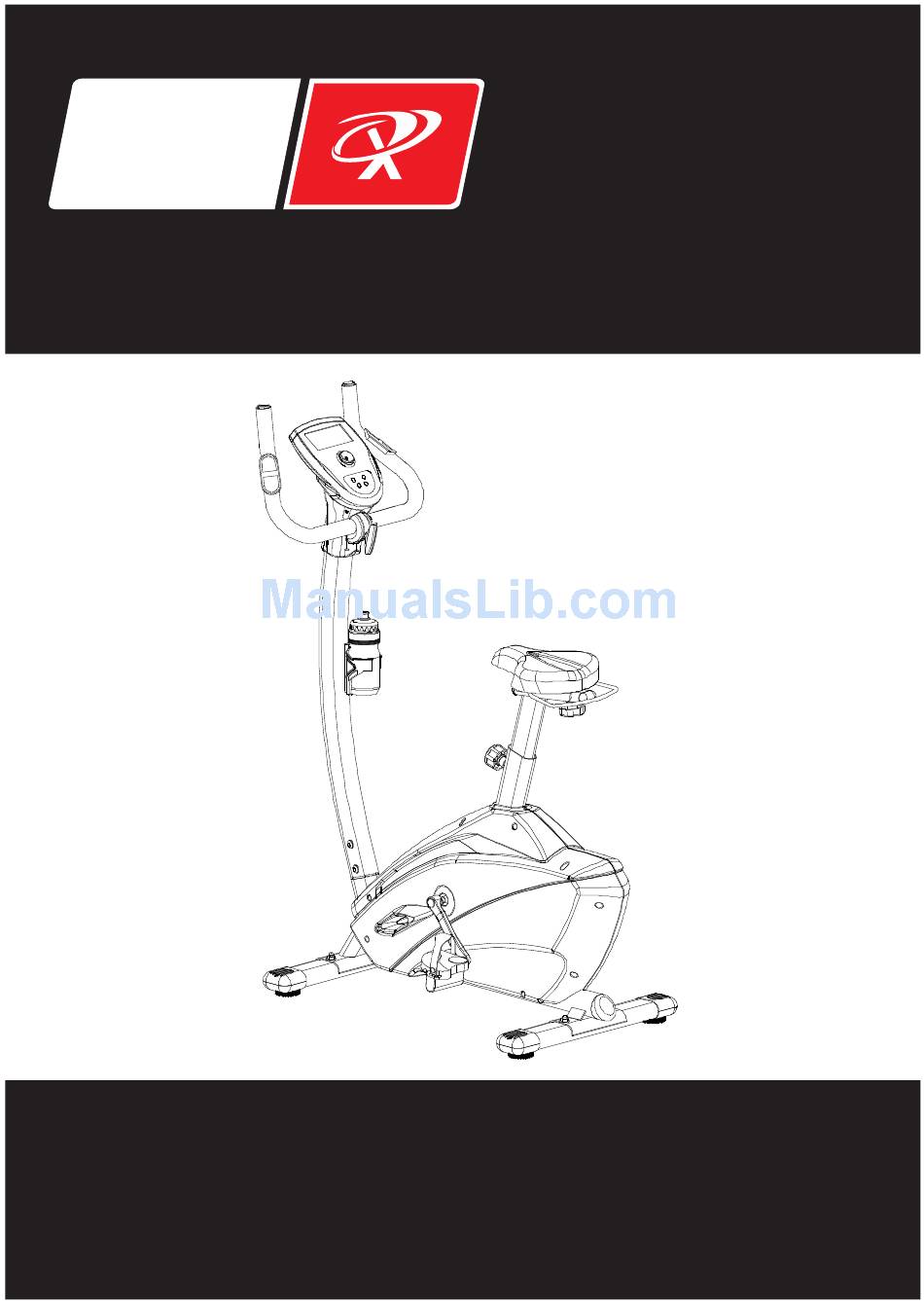

BODY WORX
BODY WORX
Retain this owner's manual for future reference
Read and follow all instructions in this owner's manual
1
Magnetic
Upright
Bike
Model No:
A811
Version A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A811 and is the answer not in the manual?

Questions and answers

Related Manuals for Bodyworx A811

Summary of Contents for Bodyworx A811

  • Page 1 Magnetic Upright BODY WORX BODY WORX Bike Model No: A811 Retain this owner’s manual for future reference Read and follow all instructions in this owner’s manual Version A...

  • Page 2: Safety Instructions

    Safety Instructions • To ensure the best safety of the exerciser, regularly check on damage and worn parts. suitable, non-slip mat under the exerciser. • If you pass on this exerciser to another person or if you allow • The general rush is that exercisers and training devices another person to use it, make sure that that person is familiar are not toys.

  • Page 3: Exploded Drawing

    Exploded drawing:...

  • Page 4: Part List

    Part list: Part No. Description Q’ty Part No. Description Q’ty Main frame Upper computer cable Front stabilizer Lower computer cable Rear stabilizer Handlebar Seat post Foam Handlebar post End cap Square neck bolt M8*1.25*60L Motor Oval foot cap Adjustable round wheel Oval cap Semicircular wheel Flat washer D25*D8.5*2T...

  • Page 5: Assembly Drawing

    Assembly drawing: Step 1 M8*1.25*60L D16*D8.5*1.2T D15.4*D8.2*2T M8*1.25*15L 1) Assemble the front stabilizer (2) and rear stabilizer (3) by the square neck bolt (6), the flat washer (11), the spring washer (12) and the domed nut (13). 2) The height of the oval foot cap (7) on the stabilizers could be adjusted up and down.
  • Page 6 Step 2 M8*1.25*8T D16*D8.5*1.2T 1) Turn over the seat (45) shown as fig. a. Assemble the adjustable tube for seat (10) at first, and then assemble the towel bracket (81). At last, assemble the flat washer (44) and the nylon nut (39) to fix the adjustable tube and the tower bracket. 2) Assemble the seat set to the seat post (4) by the flat washer (54) and the club knob (57).
  • Page 7 Step 3 M8*1.25*15L D15.4*D8.2*2T D22*D8.5*1.5T M8*1.25*15L D15.4*D8.2*2T D16*D8.5*1.2T 1) Connect the upper computer cable (47) with the lower computer cable (47A). 2) Assemble the handlebar post (5) to the main frame (1) by the flat washer (11), the curved washer (11A), the spring washer (12) and the Allen bolt (14). 3) Put the handle pulse cable (56) through the hole on the handlebar post (5).
  • Page 8 Step 4 M5*10L 9PiN 1) Assemble the pedals (16L&16R) to the cranks (15L&15R). 2) Assemble the upper computer cable (47) and the handle pulse cable (56) to the computer (60). Assemble the computer (60) to the handlebar post (5) by the screws that attach to the computer.
  • Page 9 Step 5 ST4*20L M5*12L M5*15L 1) Assemble the computer brackets (70L&70R) to the handlebar post by the bolt (71) and the screw (69). 2) Assemble the bottle holder (77) to the handlebar post by the bolt (76). And then assemble the bottle (75) to the bottle holder.

  • Page 10: Button Functions

    INSTRUCTION MANUAL OF SM7690-71 【BUTTON FUNCTIONS】 To make upward adjustment to each function data or increase training resistance. DOWN To make downward adjustment to each function data or decrease training resistance. MODE To confirm all setting. STAR/STOP To start or stop workout. RESET To reset current setting and have the monitor switch to initial training mode for selection.
  • Page 11 In the setting mode (Figure 10), press ▲ or ▼ key to adjust M (Manual), P (Program), ♥ (HRC), W (Watt), and U (User) sequentially in circulation order. Figure 10 Press ▲ or ▼ key allows user to have MANUAL (Figure 10) → PROGRAM (Figure 11) → HRC (Figure 12) → WATT (Figure 13) →...
  • Page 12 PROGRAM SETTING: Press ▲ or ▼ key to select one of the 12 PROGRAMS like PROGRAM P01, P02, P03, P04... P12. Corresponding graphics will show flashing texts (Figure 21) on LCD. Figure 21 When a PROGRAM is chosen, the value will be shown in flashing text in the LEVEL column and ready for the adjustment to be determined.
  • Page 13 (9) When WATT (Figure 34) is selected, the WATT value will be shown in flashing text waiting to be adjusted. Default = 120 will be shown on LCD (Figure 35) User can press ▲ or ▼ to set WATT value. Press the MODE button for confirmation.
  • Page 14 BODYWORX BODY WORX...
