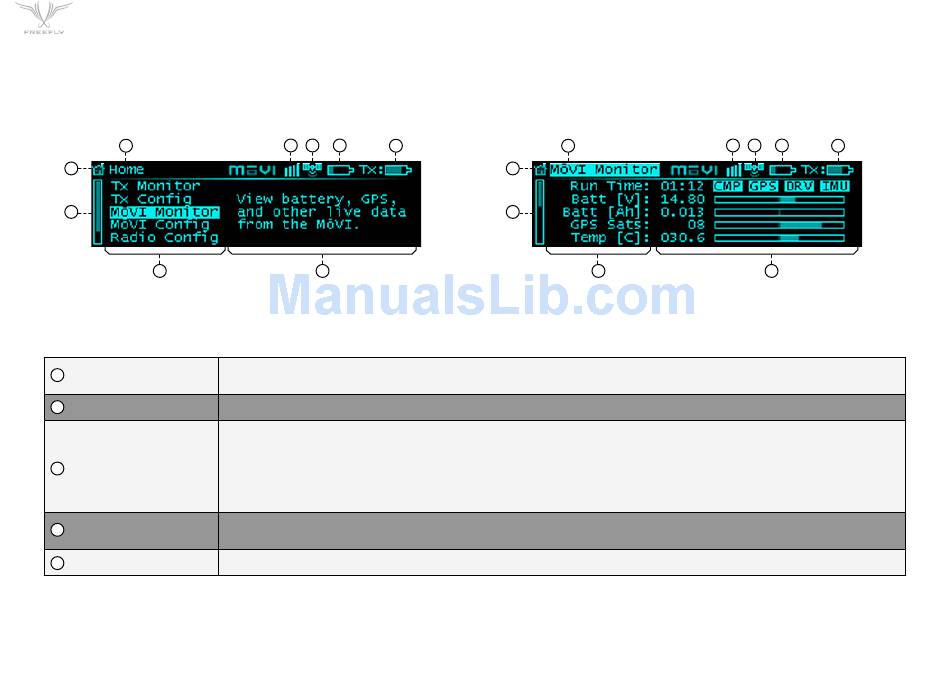

DISPLAY LAYOUT

2
1
9
8
HOME SCREEN
1
HOME ICON
2
MENU TITLE
MoVI Status
Booting
Error
3
Connected
4
GPS STATUS
MōVI BATTERY LEVEL
5
P9
3 4 5 6
7
Return to the Home menu at any time by scrolling (with the Menu Select knob) to and clicking on the Home
icon in the top left corner of the display.
The title of the currently active menu is displayed here.
When connected to a MōVI, this icon will display the MōVI Status:
The MōVI is starting up. Keep the camera stationary while this icon is displayed for the IMU to properly initilize.
The MōVI is connected, but an error has occured. Check the MōVI Monitor menu for more information on the error, or try
restarting the MōVI.
The MōVI is connected and running, and the MōVI Controller is receiving live telemetry.
When the MōVI acquires GPS lock, the GPS icon () is displayed and the GPS-based acceleration compensation
(to minimize horizon drift during high-acceleration movement) is active.
The state of charge of the MōVI battery. Check the MōVI Monitor menu for the exact battery voltage.
