FIZ CONFIG
This screen is used for general configuration of the Wedge. It contains settings that are axis-specific but not common to all axes, and other non-axis related settings.

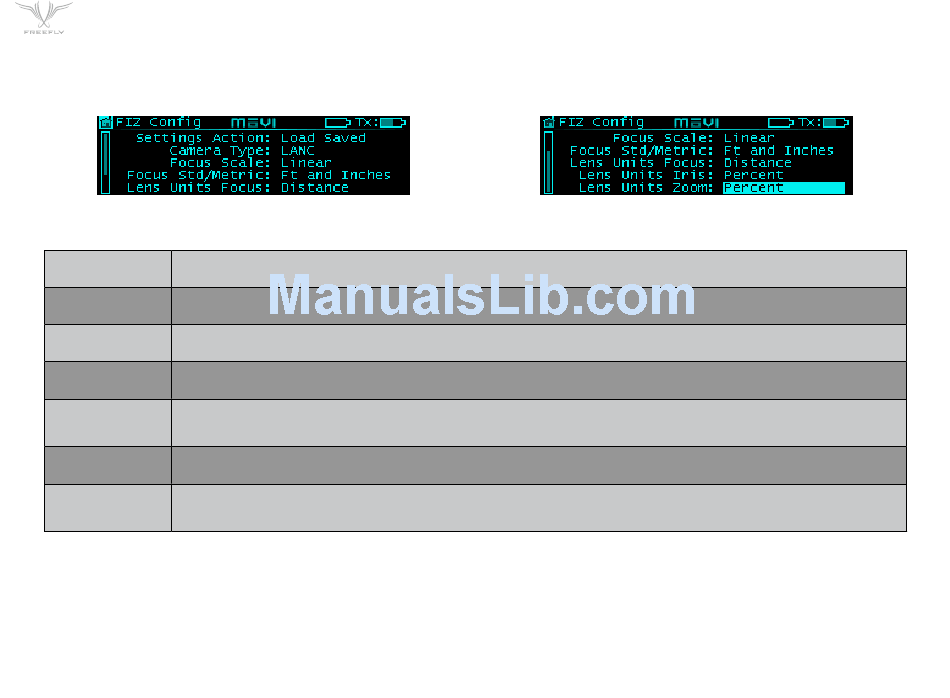

WEDGE CONFIGURATION SCREEN 1
SETTINGS
Scrolling SET allows selection of Load Defaults/Load Saved/Save. Pressing SET performs the requested option. This only affects settings
ACTION
that are persistent and not state dependent. The units and scaling are not persistent.
This selects the type of camera that the FIZ is connected to. Note that the proper cable must be used to control the camera, and this
CAMERA TYPE
setting must be set correctly.
Linear/Stretched. Setting this to Stretched causes more of the focus knob travel to be used in the longer focal distance range where the
FOCUS SCALE
scale gets compressed. This allows greater fidelity of focal point as the focal distance grows.
FOCUS STD/
Selects between Feet/Inch or Meters to be used for focus distance measurements when the selected units for the focus axis is
METRIC UNIT
Distance.
LENS UNIT FOCUS
(PERCENT/
Setting this to distance shows the Focus position in physical units or percent. A lens must be selected to show physical units.
DISTANCE)
LENS UNITS IRIS
Setting this to distance shows the Focus position in physical units or percent. A lens must be selected to show physical units.
(PERCENT/FSTOP)
LENS UNITS ZOOM
(PERCENT/FOCAL
Setting this to Focal Length shows the Zoom position in physical units or percent. A lens must be selected to show physical units.
LENGTH)
P35
WEDGE CONFIGURATION SCREEN 2
