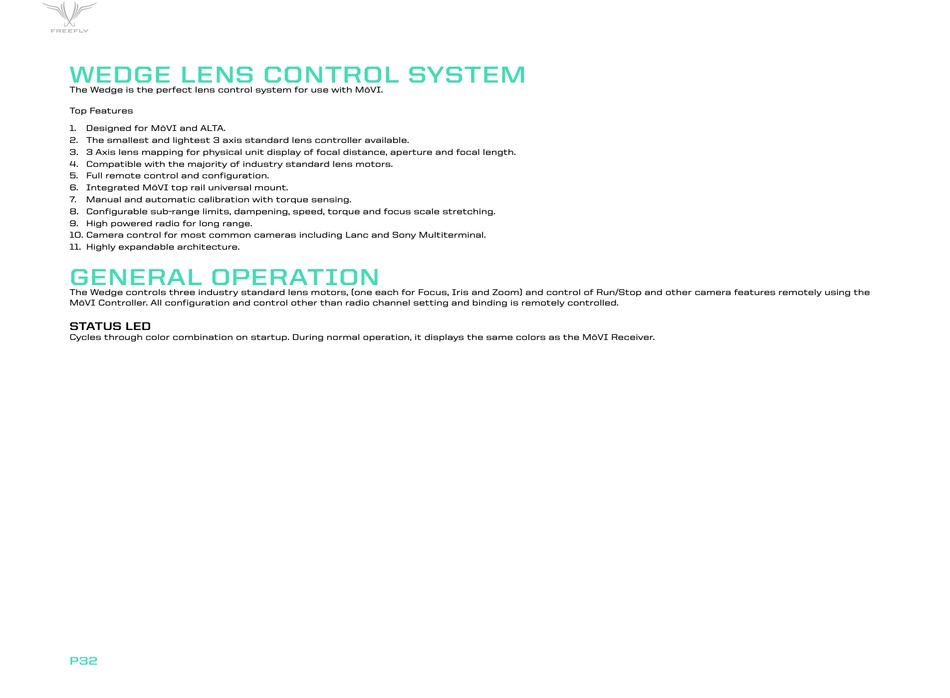

WEDGE LENS CONTROL SYSTEM
The Wedge is the perfect lens control system for use with MōVI.
Top Features
1. Designed for MōVI and ALTA.
2. The smallest and lightest 3 axis standard lens controller available.
3. 3 Axis lens mapping for physical unit display of focal distance, aperture and focal length.
4. Compatible with the majority of industry standard lens motors.
5. Full remote control and configuration.
6. Integrated MōVI top rail universal mount.
7. Manual and automatic calibration with torque sensing.
8. Configurable sub-range limits, dampening, speed, torque and focus scale stretching.
9. High powered radio for long range.
10. Camera control for most common cameras including Lanc and Sony Multiterminal.
11. Highly expandable architecture.

GENERAL OPERATION

The Wedge controls three industry standard lens motors, (one each for Focus, Iris and Zoom) and control of Run/Stop and other camera features remotely using the
MōVI Controller. All configuration and control other than radio channel setting and binding is remotely controlled.
STATUS LED
Cycles through color combination on startup. During normal operation, it displays the same colors as the MōVI Receiver.
P32
