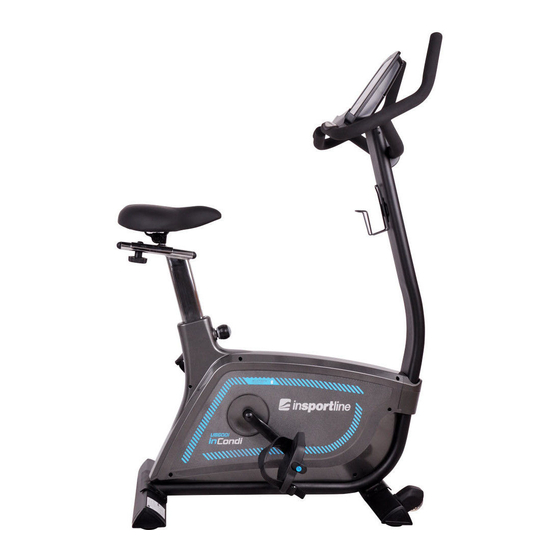

  • Page 1 USER MANUAL – EN IN 8723 Exercise Bike inSPORTline UB600i...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ............................ 3 IMPORTANT NOTES ............................3 EXPLODED DRAWING ............................4 PARTS LIST ................................4 CHECK LIST ................................8 ASSEMBLY ................................9 SM2570 iConsole+ INSTRUCTION MANUAL ....................15 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ............19...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS  To ensure the best safety of the exerciser, regularly check it on damages and worn parts.  If you pass on this exerciser to another person or if you allow another person to use it, make sure that that person is familiar with the content and instructions in these instructions.

  • Page 4: Exploded Drawing

     The general rule is that exercisers and training devices are no toys. Therefore, they must only be used by properly informed or instructed persons.  Stop your work-out immediately in case of dizziness, nausea, chest pain or any other physical symptoms.
  • Page 5 Adjustable wheel Front stabilizer Cover for wheel Tri-angle cap(left) Flat washer D16xD8.5x1.2T Spring washer D15.4xD8.2x2T Allen bolt M8x1.25x20L Seat LS-A28 Seat adjustment Fixing plate for computer Computer bracket Oval cap Flat washer D25xD8.5x2T Club knob Computer SM-2570-31 C-clip D22.5*D18.5*1.2T Bolt M5*0.8*15L Bolt M5x0.8x15L Belt Waved washer D27*D21*0.3T...
  • Page 6 Flywheel Allen bolt M8x1.25x30L Nylon nut M8*1.25*8T Fixing plate for magnet Bolt M8*52L Nylon nut M6*1*6T Nylon washer D6*D19*1.5T Flat washer D13*D6.5*1.0T Nut M6*1*6T Spring D1.0*55L BOLT M6*60L Nylon nut M8*1.25*8T Nut M8*1.25*6T Fixing plate for idle wheel Plastic cover Spring D2.2*D14*65L Plastic washer D10*D24*0.4T Flat washer D24*D16*1.5T...
  • Page 7 Anti-loosen nut 3/8"-26UNFx6.5T Adaptor Motor Screw ST4.2x1.4x15L Screw ST4.2x1.4x20L Screw ST4*1.41*12L Right pedal Right crank Bolt M5x0.8x12L Tri-angle cap(right) Round wheel Screw ST4.2*1.4*15L Chest belt...

  • Page 8: Check List

    CHECK LIST & & & M8*1.25*20L D16*D8.5*1.2T M8*1.25*50L M5*0.8*15L D15.4*D8.2*2T...

  • Page 9: Assembly

    ASSEMBLY STEP 1 M8*20 D15.4 step-1 1) Assemble the front stabilizer (4) and rear stabilizer (2) onto the main frame (1) by using the flat washer (7), spring washer (8), and allen bolt (9). 2) Adjust the proper height by turning the wheel of rear foot cap (3).
  • Page 10 STEP 2 step-2 1) Fix the seat (10) to the seat adjustable tube (11). 2) Assemble the adjustable tube onto the seat post (66) by using the flat washer (15) and club knob (16) . 3) The seat can be adjusted up and down, frontward and backward as fig b, fig c shown.
  • Page 11 STEP 3 M8*50 D15.4 step-3 1) Suggest assembling this step by two persons. 2) First, lift up the upper protective cover (28) like fig. (a), then connect the computer cable (72 & 73) like fig.(b) 3) Insert the handlebar post (29) on the main frame and tighten it by using the flat washer (7), the spring washer (8) and the allen bolt (30).
  • Page 12 STEP 4 M8*20 D15.4 M5*15 step-4 1) Through the cable from the hole on the handlebar bar cost as Fig 4-1 shown. 2) Assemble the handlebar (32) to the handlebar post (29) by using the protective cover (65), the flat washer (7), the spring washer (8), the allen bolt (9) and the bolt (20).
  • Page 13 STEP 5 M5*10 M5*15 step-5 1) Assemble the upper computer cable (72) with computer (17) and then fixing the computer (17) on the handlebar post (29) by using the bolt (64). 2) Connect the adaptor (81) to the adaptor input on the rear of the bike. 3) Assemble the water bottle holder onto the handlebar post by bolt (19).
  • Page 14 STEP 6 step-6 Fixing the pedal (62 & 88) to the crank (35 & 89).

  • Page 15: Sm2570 Iconsole+ Instruction Manual

    SM2570 iConsole+ INSTRUCTION MANUAL SUPPORT DEVICES Support iOS devices: Support Android devices: iPod touch (5th generation) Android tablet OS 4.0 or above iPod touch (4th generation) Android tablet resolution 1280X800 pixels iPod touch (3rd generation) Android phone OS 2.2 or above iPhone 5S Android phone resolution: iPhone 5C...
  • Page 16 Range 0.0 ~ 99.9 CALORIES Burned calories during workout display. Range 0 ~ 999 PULSE Pulse bpm displayed during exercise. Pulse alarm when over preset target pulse. Rotation per minute Range 0 ~ 999 WATT Workout power consumption In Watt Program mode, computer will remain preset watt value (setting range 0~350) MANUAL Manual mode workout.
  • Page 17 Press UP and Down to select workout Manual  Beginner  Advance  Sporty  Cardio  Watt MANUAL MODE Press START in main menu may start workout in manual mode. 1) Press UP or DOWN to select workout program, choose Manual and press Mode to enter. 2) Press UP or DOWN to preset TIME, DISTANCE, CALORIES, PULSE and press MODE to confirm.
  • Page 18 1) Press UP or DOWN to select workout program, choose Sporty mode and press Mode to enter. 2) Press UP or DOWN to preset TIME. 3) Press START/STOP key to start workout. Press UP or DOWN to adjust load level. 4) Press START/STOP key to pause workout.

  • Page 19: Terms And Conditions Of Warranty, Warranty Claims

    NOTE: 1. Once console is connect to tablet via Bluetooth, the console will power off. 2. Please exit iConsole app and turn off the Bluetooth from iPad, then the console will power on again. TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure.
  • Page 20 +420 556 770 190, Mobile: +420 604 853 019, servis@insportline.cz Fax: +420 556 770 192, (Service +420 556 770 191) Web: www.insportline.cz, www.worker.cz, www.worker-moto.cz INSPORTLINE, s.r.o. Bratislavska 36, 911 05 Trencin, Slovakia CRN: 36311723, VAT ID: SK2020177082 Orders: +421(0)326 526 701, +421(0)917 649 192, objednavky@insportline.sk...
