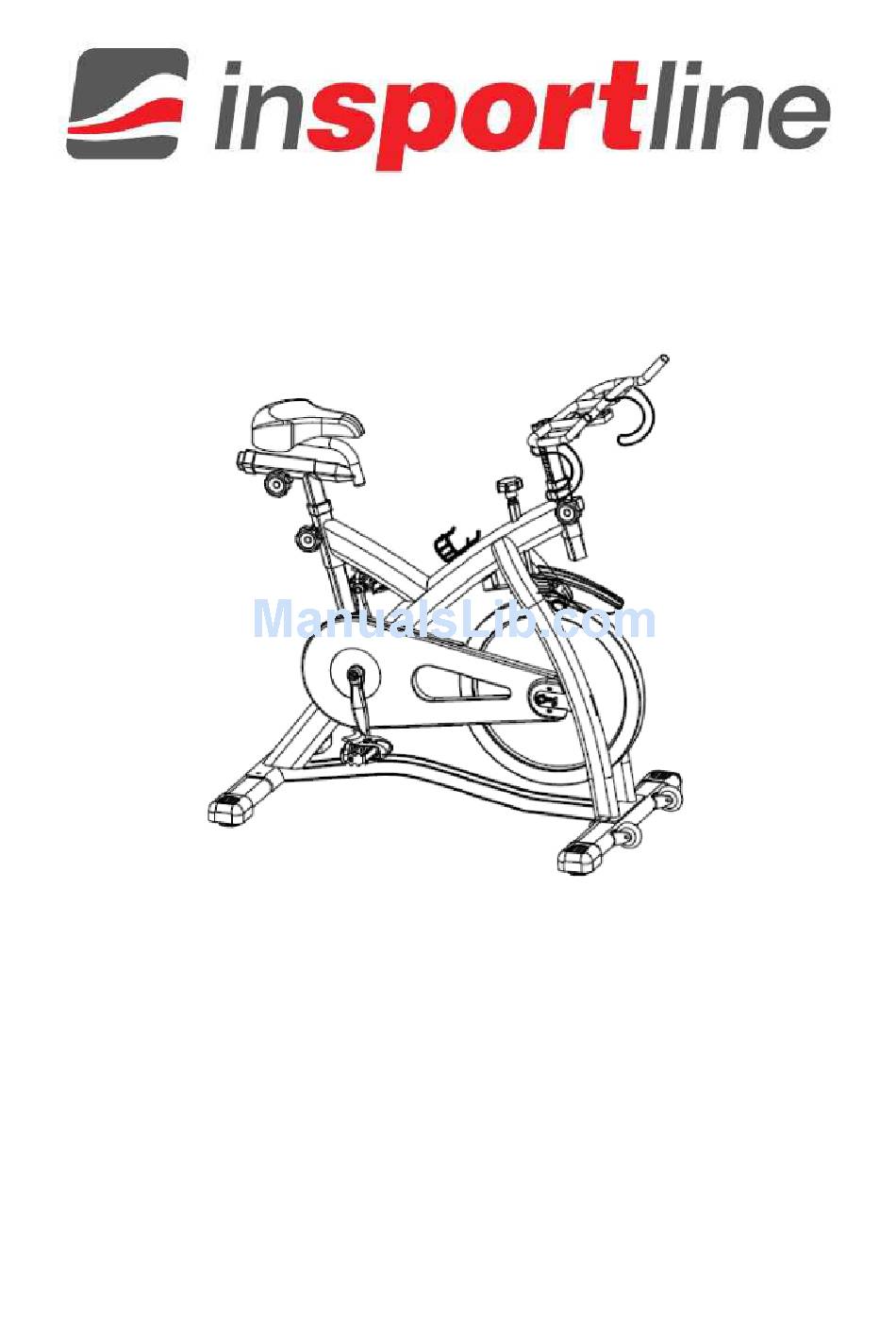

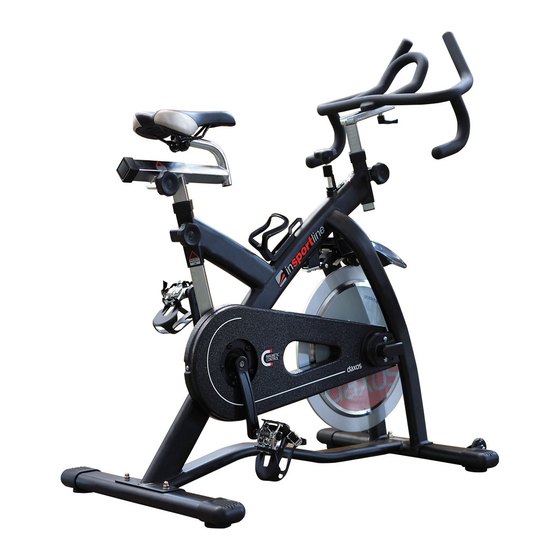

  • Page 1 USER MANUAL – EN IN 8236 Exercise Bike inSPORTline Daxos...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ............................ 3 EXPLODED DRAWING ............................4 PARTS LIST ................................5 ASSEMBLY STEPS ............................... 7 ADJUSTING THE RESISTANCE ......................... 8 USAGE INSTRUCTIONS............................8 MAINTENANCE CHART ............................. 9 ADJUSTING THE BELT TENSION ......................... 9 HOW TO REPLACE MAGNETIC HOLDER ....................10 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ............

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS • Consult your physician before starting with any exercise program to receive advice on the optimal training. • Warning: incorrect/excessive training can cause health injuries. Stop using the bike when feeling uncomfortable. • Please follow the advice for correct training as detailed in the training instructions. •...

  • Page 4: Exploded Drawing

    EXPLODED DRAWING...

  • Page 5: Parts List

    PARTS LIST Name Unit Saddle Alloy bind clamp ( R &L ) Spring for knob Knob Left crank arm Belt Right crank arm Foot tube nut Foot tube washer Foot fixing bolt Pedal Rear foot tube Front foot end cap Rear foot tube end cap Fender fixed plate Front foot tube...
  • Page 6 Flywheel adjuster bolt Knob washer Plastic washer for knob Knob fixed bolt Washer for knob Seat slider Seat post Axle bolt for moving wheel Flywheel BB bearing Belt wheel w/screw 47~49 Magnetic w/support, fixed bolt, screw, housing, nut, fixe pin 54~57 Bolt for fender Fender...

  • Page 7: Assembly Steps

    ASSEMBLY STEPS STEP 1 Attach the front (16) and rear feet (12) to the frame using the nuts (8), washer (9) and bolts (10). STEP 2 Attach the handlebar post (23) inserting into the head tube on the frame. Using knob to adjust and tighten the height in proper position.

  • Page 8: Adjusting The Resistance

    ADJUSTING THE RESISTANCE To adjust the exercising resistance on the complete spinning bike by the brake knob (31) of brake system, and then simply loosen (-) or tighten (+). The flywheel should rotate freely without resistance when you loosen (-) the brake system totally. More experienced riders may wish to increase the overall resistance by tighten (+) the brake system totally.

  • Page 9: Maintenance Chart

    9) Maintenance: It may be unsafe when loosen bolt on the parts or noise on the flywheel, please contact your supplier. Like any other mechanical cycling device, the bike should be regularly maintained. Ask your supplier for a detailed maintenance program. MAINTENANCE CHART DESCRIPTION Daily...

  • Page 10: How To Replace Magnetic Holder

    4) Make sure flywheel keeps parallel with frame. And two sides distance between flywheel and magnet must be the same. 5) After finished the above steps, screw the nut cap by both sides. Make sure the nut caps is tighten and fixedly.
  • Page 11 +420 556 770 190, Mobile: +420 604 853 019, servis@insportline.cz Fax: +420 556 770 192, (Service +420 556 770 191) Web: www.insportline.cz, www.worker.cz, www.worker-moto.cz INSPORTLINE, s.r.o. Bratislavska 36, 911 05 Trencin, Slovakia CRN: 36311723, VAT ID: SK2020177082 Orders: +421(0)326 526 701, +421(0)917 649 192, objednavky@insportline.sk...
  • Page 12 Date of Sale: Stamp and Signature of Seller:...
