Summary of Contents for Insportline EPSILON IN 174

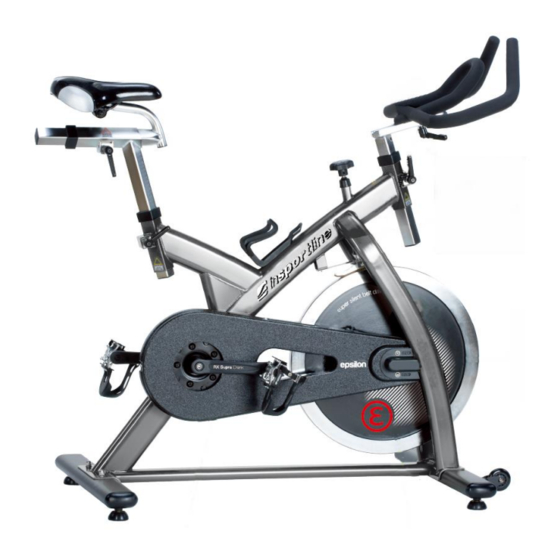

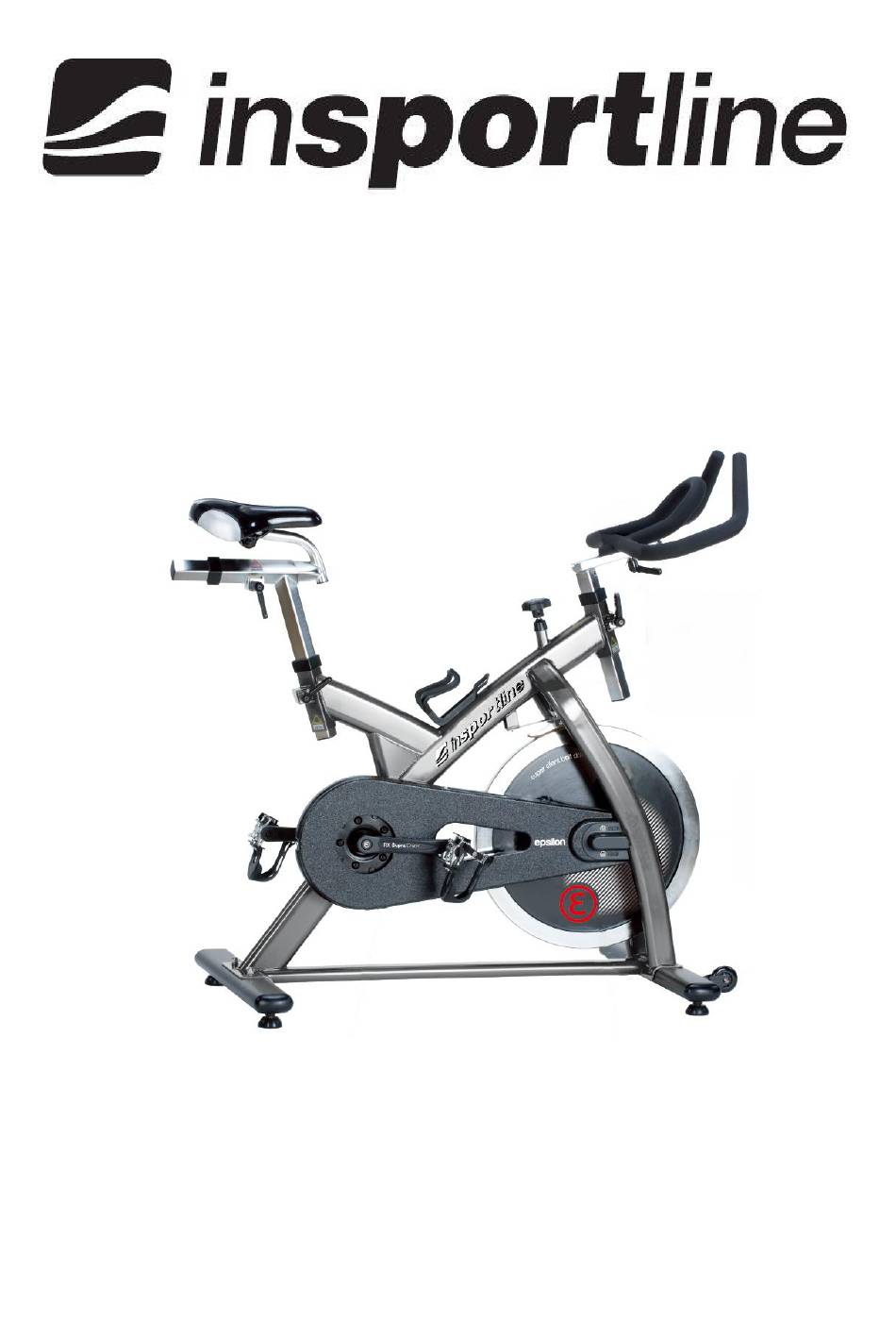

- Page 1 MANUAL - EN IN 174 EXERCISE BIKE EPSILON...
- Page 2 TABLE OF CONTENTS TABLE OF CONTENTS............................ 2 INSTRUCTION ..............................2 ASSEMBLY ..............................3 PARTS LIST ..............................5 MAINTENCE CHART ............................6 INSTRUCTION 1) This product is designed to be used as an exercise bike in fitness studios and health clubs. It has a fixed wheel driven flywheel and should only be used under professional supervision.
- Page 3 ASSEMBLY Step one Attach the front (18) and rear feet (14) to the frame using the nuts (8), washer (9) and bolts (10). Step two Attach the handlebar post (22) inserting into the head tube on the frame. Using release lever to adjusts and tightens the height in proper position.
- Page 5 PARTS LIST Name Unit No. Name Unit Saddle Bolt for bottle cage Alloy bind clamp ( L ) Bottle cage Spring for release lever Bolt for spring plate Alloy bind clamp ( R ) Spring plate Washer for release lever Brake pad holder Release lever Brake pad...
- Page 6 MAINTENCE CHART DESCRIPTION Daily Weekly Monthly Quarterly Annually Wipe machine down Spray with WD40 or similar Visual check Check security of handle bar post & seat post Check security of saddle Remove handlebar post and clean tube Remove seat and clean tube Check brake pads for wear-align Check brake adjustment Check security of all knobs &...
