USER MANUAL – EN

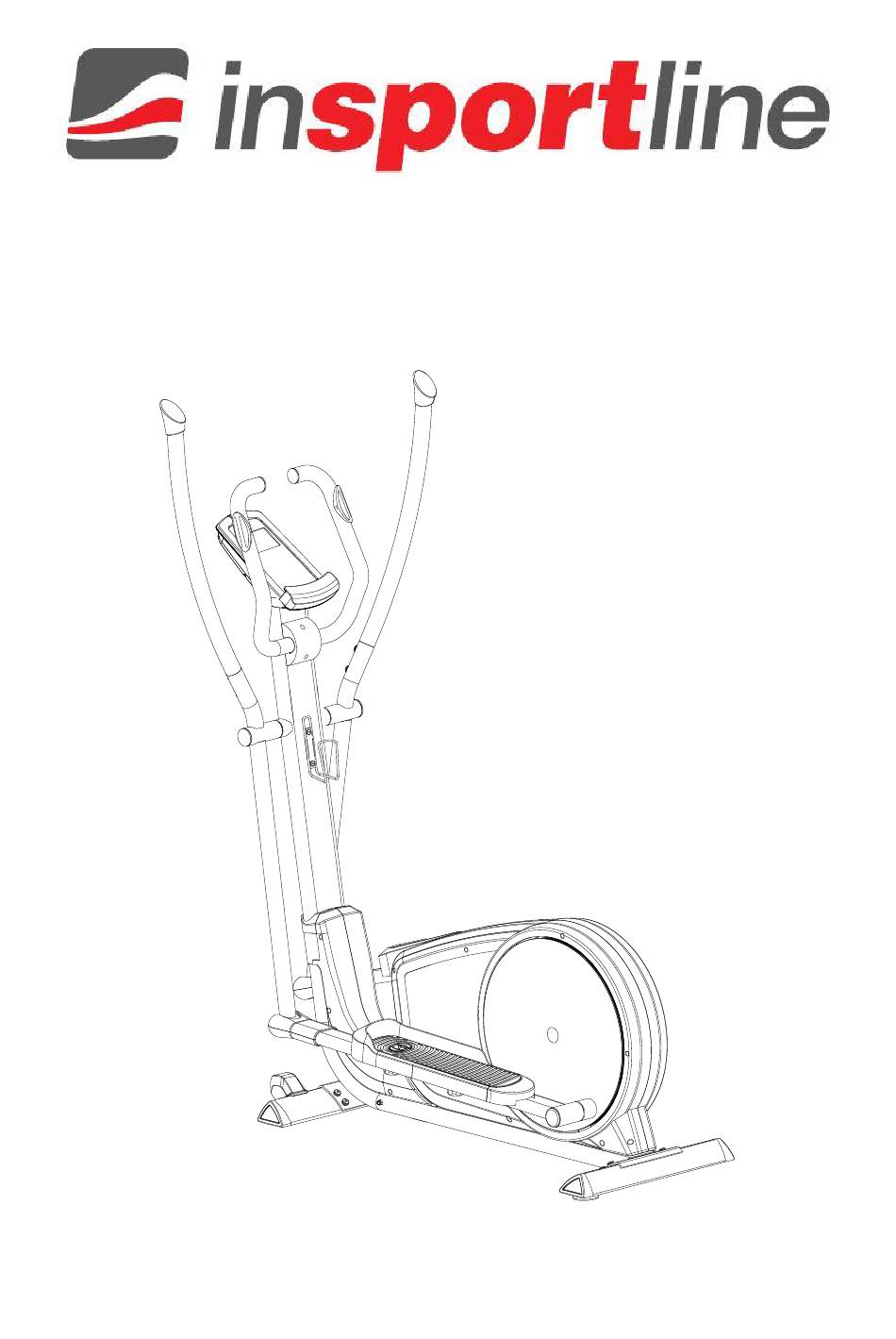

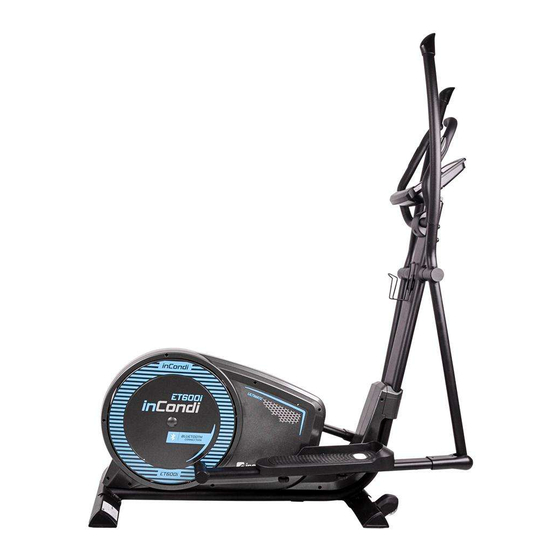

IN 8724 Elliptical Trainer inSPORTline ET600i
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the IN 8724 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Insportline IN 8724

Summary of Contents for Insportline IN 8724

  • Page 1 USER MANUAL – EN IN 8724 Elliptical Trainer inSPORTline ET600i...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ............................ 3 IMPORTANT NOTES ............................3 EXPLODED DRAWING ............................4 PARTS LIST ................................5 CHECK LIST (CONTENTS OF PACKAGE) ....................... 9 ASSEMBLY ................................. 10 SM2570 iConsole+ INSTRUCTION MANUAL ....................16 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ............20...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS  To ensure the best safety of the exerciser, regularly check it on damages and worn parts.  If you pass on this exerciser to another person or if you allow another person to use it, make sure that that person is familiar with the content and instructions in these instructions.

  • Page 4: Exploded Drawing

     The general rule is that exercisers and training devices are no toys. Therefore, they must only be used by properly informed or instructed persons.  Stop your work-out immediately in case of dizziness, nausea, chest pain or any other physical symptoms.

  • Page 5: Parts List

    PARTS LIST Part No. Description Main frame Front stabilizer Flat washer D16xD8.5x1.2T Tri-angle cap(left) Tri-angle cap(right) Decorative plate Curved washer D22xD8.5x1.5T Spring washer D15.4xD8.2x2T Round cap Allen bolt M8x1.25x20L Handlebar post Pedal support Left supporting tube for moveable bar Right supporting tube for moveable bar Bearing #2203-2RS C-clip S-40(1.80T) Half ball cap...
  • Page 6 Left crank Right crank Screw ST4.2x1.4x20L Belt Left chain cover Right chain cover Flywheel Screw ST4.0x1.41x20L Side cover Bolt M6*1.0*15L Flat washer D14*D6.5*0.8T Round cover Bearing #6004-2RS(C0) Bolt M8*52L Nylon nut M8*1.25*8T Flat washer D25xD8.5x2.0T Waved washer D21xD16.2x0.3T Flat washer D13*D6.5*1.0T Upper protective cover Plastic washer D50*D10*1.0T Spring D1.0*55L...
  • Page 7 Computer bracket Fixing plate for computer Allen bolt M12*1.75*70L Fixing plate for idle wheel Flat washer D50*D10*3T Fixing bar Flat washer D14xD6.5x0.8T Cover for connecting plate(upper) Cover for connecting plate Bolt M5x0.8x15L Club knob Adjustable wheel Buffer Screw ST3.5x1.27x15L Front decorative cover(left) Front decorative cover(right) Nylon nut M6*1*6T Allen bolt M8x1.25x30L...
  • Page 8 Bearing plate(2) Bolt M5*0.8*15L Flat washer D12*D5.2*0.8T Magnet case Magnet Round wheel Bushing D22.2*D8.2*7T Allen bolt M8*1.25*40L Nylon nut M8*1.25*8T Cover for wheel...

  • Page 9: Check List (Contents Of Package)

    CHECK LIST (CONTENTS OF PACKAGE) 52L 52R & & & 21L 21R & KH-832C2 77 D40 4pcs...

  • Page 10: Assembly

    ASSEMBLY STEP 1 (x8) M8*20 D15.4 Step-1 1) Assemble the front stabilizer (2) and rear stabilizer (19) onto the main frame (1) by using the flat washer (3), spring washer (7), and allen bolt (9). 2) Adjust the proper height by turning the wheel of rear foot cap (78). 3) Insert the cover for the wheel (113) onto the front stabilizer (2).
  • Page 11 STEP 2 (x4) Step-2 1) Assemble the left and right pedal (21L&21R) on the pedal supporting tube (11) by using the flat washer (73) and the knob (77). 2) 3 optional positions for the pedals.
  • Page 12 STEP 3 (x4) M8*50L D15.4 Step-3 1) Suggest assembling this step by two persons. 2) First, lift up the cover for handlebar post (49) like fig. (a), then connect computer cable (29 & 30) like fig.(b) 3) Insert the handlebar post (10) into the main frame and tighten it by using the flat washer (3), the spring washer (7) and the allen bolt (17).
  • Page 13 STEP 4 (x2) M12*1.75*70L (x4) ST3.5*15L (x4) M8*20 D15.4 Step-4 1) Assemble the left and right handlebar (52L&52R) on the movable handlebar support (12L&12R) by using the curved washer (6), the spring washer (7) and the allen bolt (9). 2) Connect the movable handlebar support (12L&12R) to the pedal supporting tube (11) by using the anti- loose nut (63) and the bolt (69), then assemble the connect cap (74 &...
  • Page 14 STEP 5 (x4) M8*20 D15.4 (x2) M5x15L 23 76 Step-5 1) Assemble the left and right fixed handlebar (72) on the handlebar post (10) by using the flat washer (3), the spring washer (7), and the allen bolt (9) like fig. (5-1). 2) Assemble the protective cover (23) by using the screw (76) like fig.
  • Page 15 STEP 6 M5x10L(x4) M5x15L(x2) Step-6 1) Connect the computer cable (29) and cable of handle pulse sensor (65) with the computer (64), then fix the computer (64) on the handlebar post (10) by using the screws (90). 2) Connect the adaptor (27). 3) Assemble the water bottle holder (91) onto the handlebar post by using the screws (76).

  • Page 16: Sm2570 Iconsole+ Instruction Manual

    SM2570 iConsole+ INSTRUCTION MANUAL SUPPORT DEVICES Support iOS devices: Support Android devices: iPod touch (5th generation) Android tablet OS 4.0 or above iPod touch (4th generation) Android tablet resolution 1280X800 pixels iPod touch (3rd generation) Android phone OS 2.2 or above iPhone 5S Android phone resolution: iPhone 5C...
  • Page 17 Range 0.0 ~ 99.9 CALORIES Burned calories during workout display. Range 0 ~ 999 PULSE Pulse bpm displayed during exercise. Pulse alarm when over preset target pulse. Rotation per minute Range 0 ~ 999 WATT Workout power consumption In Watt Program mode, computer will remain preset watt value (setting range 0~350) MANUAL Manual mode workout.
  • Page 18 Press UP and Down to select workout Manual  Beginner  Advance  Sporty  Cardio  Watt MANUAL MODE Press START in main menu may start workout in manual mode. 1) Press UP or DOWN to select workout program, choose Manual and press Mode to enter. 2) Press UP or DOWN to preset TIME, DISTANCE, CALORIES, PULSE and press MODE to confirm.
  • Page 19 1) Press UP or DOWN to select workout program, choose Sporty mode and press Mode to enter. 2) Press UP or DOWN to preset TIME. 3) Press START/STOP key to start workout. Press UP or DOWN to adjust load level. 4) Press START/STOP key to pause workout.

  • Page 20: Terms And Conditions Of Warranty, Warranty Claims

    NOTE: 1. Once console is connect to tablet via Bluetooth, the console will power off. 2. Please exit iConsole app and turn off the Bluetooth from iPad, then the console will power on again. TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure.
  • Page 21 +420 556 770 190, Mobile: +420 604 853 019, servis@insportline.cz Fax: +420 556 770 192, (Service +420 556 770 191) Web: www.insportline.cz, www.worker.cz, www.worker-moto.cz INSPORTLINE, s.r.o. Bratislavska 36, 911 05 Trencin, Slovakia CRN: 36311723, VAT ID: SK2020177082 Orders: +421(0)326 526 701, +421(0)917 649 192, objednavky@insportline.sk...
