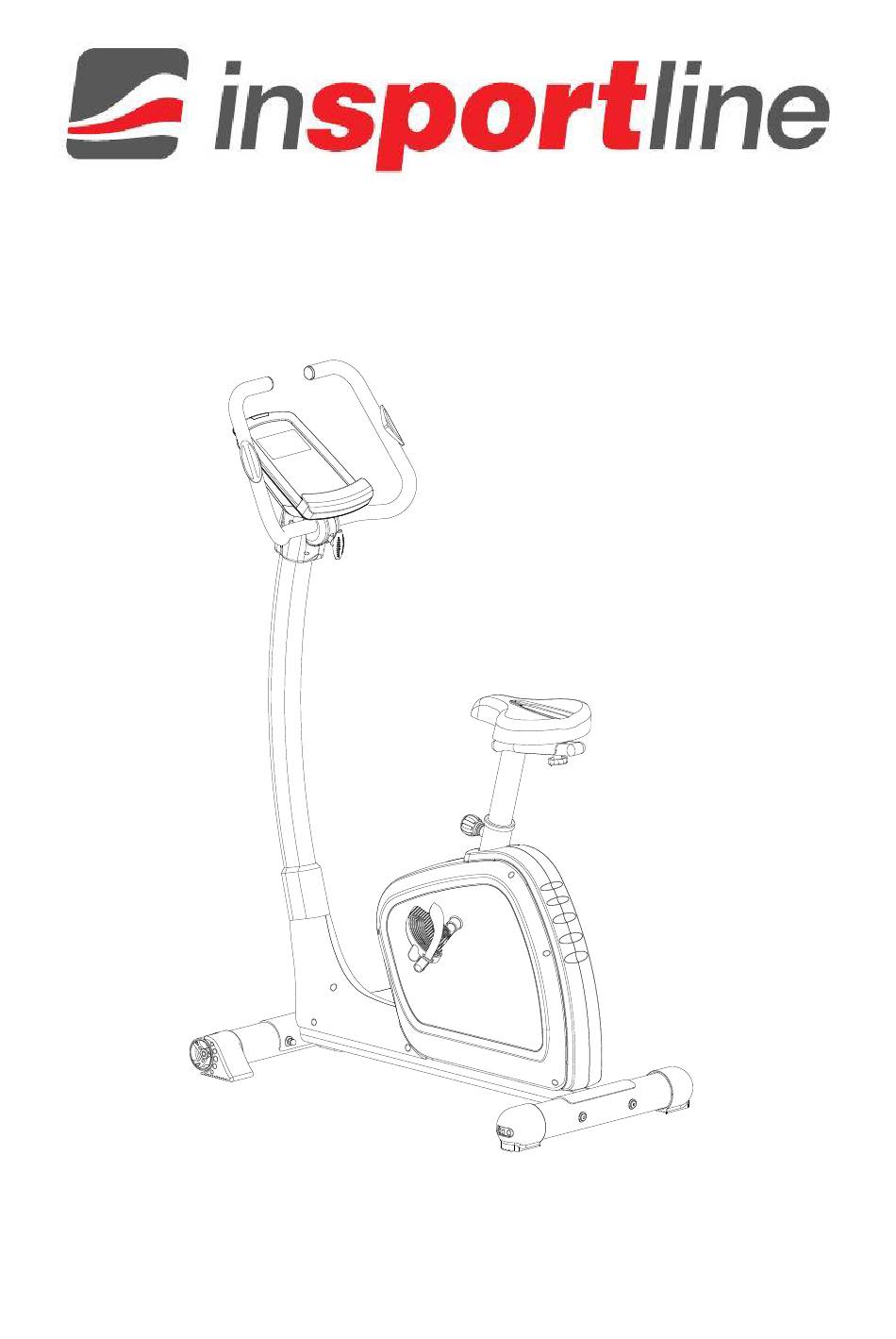

- Page 1 USER MANUAL – EN IN 8719 Exercise Bike inSPORTline inCondi UB60i...
- Page 2 CONTENTS SAFETY INSTRUCTIONS ........................3 EXPLODED DRAWING ........................... 4 PARTS LIST ............................4 CHECK LIST............................8 ASSEMBLY INSTRUCTIONS ......................... 9 SM2570 INSTRUCTION MANUAL ....................... 14 iConsole+Training APP ......................... 17 USE ............................... 18 CORRECT BODY POSTURE ....................... 19 MAINTENANCE ............................ 19 STORAGE .............................
- Page 3 SAFETY INSTRUCTIONS • To ensure the best safety of the exerciser, regularly check it on damages and worn parts. • If you pass on this exerciser to another person or if you allow another person to use it, make sure that that person is familiar with the content and instructions in these instructions. •...
- Page 4 • Children disabled and handicapped persons should use the exercise only under supervision and in presence of another person who may give support and useful instructions. • Be sure that your body parts and those of other persons are never close to any moving parts of the exerciser during its use.
- Page 5 Allen bolt M8*1.25*95L Curved washer D22xD8.5x1.5T Spring washer D15.4xD8.2x2T Front decorative cover (left) Front decorative cover (right) Oval cap Seat post Inner tube Allen bolt M8*1.25*15L Flat washer D16*D8.5*1.2T Handlebar post Club knob Flat washer D25xD8.5x2T Knob Bearing #6003ZZ Waved washer D22xD17x0.3T Flat washer D23*D17.2*1.5T C-clip S-17(1T) Spacer D22.5*D17.2*6.4T...
- Page 6 Spring washer D15.4xD8.2x2T Bushing Left chain cover Right chain cover Left crank Right crank Bolt M8x1.25x25 Screw cover D23x6.5 Left pedal set Right pedal set Anti-loosen net 3/8"-26UNF*6.5T Nut D9.5x8T(3/8"-26UNFx4T) Flywheel Screw ST4.2x1.4x20L C-clip S-10(1T) Flywheel axle Screw ST4.2*1.4*15L Upper computer cable Lower computer cable Adaptor Tension cable...
- Page 7 Fixing plate for idle wheel Plastic flat washer Nut M8*1.25*6T Nylon nut M8*1.25*8T Bolt M6*65L Spring D1.0*55L Nut M6*1*6T Fixing plate for magnet Nylon washer D6*D19*1.5T Flat washerD13*D6.5*1.0T Nylon nut M6*1*6T Bolt M8*52L Fixing ring Oval cover Bolt M5x0.8x10L Buffer Round ring for chain cover Allen spanner Spanner...
- Page 8 CHECK LIST 51L & 51R 40L & 40R...
- Page 9 ASSEMBLY INSTRUCTIONS STEP 1 (x4) M8*95L (x8) D22*8.5*1.5T (x4) D15.4*D8.2*2T (x4) M8*15L Step-1 Fix the front stabilizer (4) and rear stabilizer (2) onto the main frame (1) by using domed nut (6), allen bolt (7), curved washer (8) and spring washer (9).
- Page 10 STEP 2 (x1) D25*2T D60*32L Step-2 1) Assemble the seat (69) onto the seat post (13) by club knob (18) and flat washer (19). You can adjust the seat BACKWARD and FRONTWARD. See figure b. 2) Insert the seat post (13) into the main frame. You can adjust the seat UP and DOWN by knob (20).
- Page 11 STEP 3 (x6) M8*15L (x2) D22*8.5*1.5T (x4) D16*8.5*1.2T Step-3 1) Lift up the oval cover (98) onto the handlebar post (17) as figure a shown. 2) Connect upper computer cable (64) and lower computer cable (65) as figure b shown and then assemble handlebar post (17) with main frame by allen bolt (15), flat washer (16) and curved washer (8).
- Page 12 STEP 4 (x4) M5*10 Step-4 1) Take the handle pulse cable (34) out of handlebar post through the holes in handlebar post as arrows as figure a shown. 2) Connect handle pulse cable (34) and upper computer cable (64) with the cables attached to computer (76).
- Page 13 STEP 5 (x4) ST4*1.5L (x2) M5*12L Step-5 1) Assemble the computer bracket (left & right) (40L&R) by screw (38) and bolt (39). 2) Assemble the pedal (51L&R) with crank (48L&R). 3) Plug the adaptor (66) and turn on the computer.
- Page 14 SM2570 INSTRUCTION MANUAL SUPPORT DEVICES Support iOS devices: Support Android devices: iPod touch (5th generation) Android tablet OS 4.0 or above iPod touch (4th generation) Android tablet resolution 1280X800 pixels iPod touch (3rd generation) Android phone OS 2.2 or above iPhone 5S Android phone resolution: iPhone 5C...
- Page 15 Range 0.0 ~ 99.9 CALORIES Burned calories during workout display. Range 0 ~ 999 PULSE Pulse bpm displayed during exercise. Pulse alarm when over preset target pulse. Rotation per minute Range 0 ~ 999 WATT Workout power consumption In Watt Program mode, computer will remain preset watt value (setting range 0~350) MANUAL Manual mode workout.
- Page 16 WORKOUT SELECTION Press UP and Down to select workout Manual → Beginner → Advance → Sporty → Cardio → Watt MANUAL MODE Press START in main menu may start workout in manual mode. 1) Press UP or DOWN to select workout program, choose Manual and press Mode to enter. 2) Press UP or DOWN to preset TIME, DISTANCE, CALORIES, PULSE and press MODE to confirm.
- Page 17 SPORTY MODE 1) Press UP or DOWN to select workout program, choose Sporty mode and press Mode to enter. 2) Press UP or DOWN to preset TIME. 3) Press START/STOP key to start workout. Press UP or DOWN to adjust load level. 4) Press START/STOP key to pause workout.
- Page 18 This function requires heart rate input – we strongly recommend wearing a chest strap monitor for this function. When using hand pulse sensors: keep a firm hold of the sensors after finishing the exercise. Press RECOVERY key and immediately hold the pulse sensor again. The computer will display a 60 second countdown –...
- Page 19 the right height, keep your feet firmly in the pedals, hold the ergonomically shaped handles and exercise. It is advisable at the beginning to choose a lower load. If you exercise at regular intervals on an exercise bike, you can gradually increase the load. You can increase the load gradually over a week or two weeks.
- Page 20 IMPORTANT NOTICE • This exercise bike comes with standard safety regulations and is only suitable for home use. Any other use is prohibited and may be dangerous to users. We are not responsible for any injury caused by improper and forbidden use of the machine. •...
- Page 21 The Seller provides the Buyer a 24 months Warranty for Goods Quality, unless otherwise specified in the Certificate of Warranty, Invoice, Bill of Delivery or other documents related to the Goods. The legal warranty period provided to the Consumer is not affected. By the Warranty for Goods Quality, the Seller guarantees that the delivered Goods shall be, for a certain period of time, suitable for regular or contracted use, and that the Goods shall maintain its regular or contracted features.
