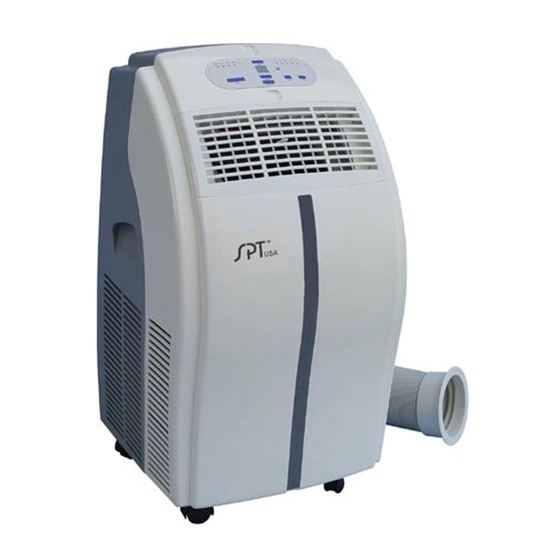

Instruction Manual

For Models WA-1010E, WA-1010H, WA-1010M

WA-1230E, WA-1230H

P O R T A B L E

Air Conditioner

It is important that you read

these instructions before

using your new purchase

and we strongly recommend

that you keep them in a safe

place for future reference.

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the WA-1010E and is the answer not in the manual?

Questions and answers

Summary of Contents for SPT WA-1010E

Page 1: Air Conditioner
Instruction Manual For Models WA-1010E, WA-1010H, WA-1010M WA-1230E, WA-1230H P O R T A B L E Air Conditioner It is important that you read these instructions before using your new purchase and we strongly recommend that you keep them in a safe...
Page 2: Thank You
Maintenance Thank You! Always unplug the unit from the mains before beginning the cleaning. Thank you for choosing the portable air conditioner from SPT , a leading Cleaning the Housing brand in indoor air treatment. We would like you to enjoy the many benefits this Use a soft, damp cloth to wipe the body clean.
Page 3: Before Use
Operation ñ Mechanical Models Before Use Important! Setting the Temperature Turn the THERMOSTAT to regulate the temperature you desire: range 6 ˚F to 90˚F. • Transport the unit in an upright position only, or leave it in an upright position for at least 2 hours before first use. Setting the Timer •...
Page 4: Installation
Installation Operation - Electronic Control Models Mounting the unit Setting The Fan Speed Press the SPEED button to choose the fan speed you require, high or low. This unit is a portable air conditioner. It can be moved from room to room so that the cooling can follow you anywhere.
Page 5: Mounting The Exhaust Pipe
Installation Operation - Electronic Control Models Control Panel Mounting the exhaust pipe 1. Automatic mode indicator 2. Cooling mode indicator 3. Fan mode indicator 4. Heating mode indicator • The supplied exhaust hose can be (For WA-1230H & WA-1010H) extended from 1 foot to 5 feet for 5.
Page 6: Setting Function / Ventilation Speed
Parts Operation - Mechanical Models WA-1010M 1. Power indicator 2. Fan operating indicator 3. Cooling operating indicator 4. Full water indicator 5. Thermostat 6. Speed switch with options for: LOW FAN, HIGH FAN, LOW COOL, HIGH COOL 7. Timer (1-8 hours) as well as ON/OFF switch 1.
Page 7: Drainage
Rubber Plug Drain Knob 7. Replace the drain knob. Timer WA-1010E: 1-12hours 1-12 hours * Do not allow the water to drip continuously into the tray, as it may easily overflow. WA-1010M: 1-8hours By Water Tube (Continuous Drainage) Thermostat °...
Page 8 Specifications Model Number WA-1230E WA-1230H Cooling Capacity 12,000BTU/hr 12,000BTU/hr Heating Capacity (1)(2) 12,000BTU/hr Power Consumption Humidity Removal Capacity 65 pts./day 65 pts./day Recommended Room Size* 400 sq. ft. 400 sq. ft. Power Supply Compressor Rotary Rotary Refrigerant R-22 R-22 Fan Speed Timer 1-12hours 1-12 hours...
Page 9: Table Of Contents
NEVER TRY TO REPAIR OR DISMANTLE THE UNIT YOURSELF Cleaning the Housing ............……………………......13 REPLACEMENT FILTERS: Cleaning the Filter ..............……………………......13 To purchase Replacement Filters for this unit, contact SPT End of Season Storage ............………………..……………....13 1-800-330-0388 and request model number WA- 1010 F &...
