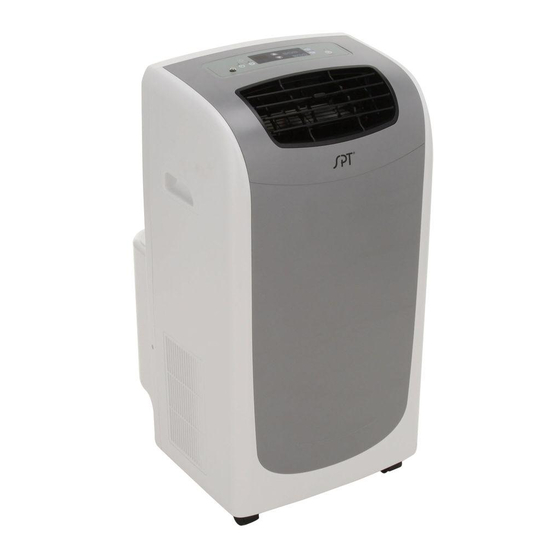

- Page 1 PORTABLE AIR CONDITIONER DUAL-HOSE SYSTEM WA-1150DE: 11,000 BTU WA-1350DE: 13,000 BTU Read and retain these instructions for future reference...
-
Page 2: Table Of Contents
Read this Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. -
Page 3: Social Remark
For the correct collection and treatment of this product, take them to the collection point for reuse of electrical and electronic equipment. Contact your local authority for the appropriate collection point in your neighborhood. SPECIFICATIONS · Model no. WA-1150DE WA-1350DE 11,000 BTU/hr 13,000 BTU/hr Cooling capacity 1120W 1340W Power consumption Air volume (max. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Safety rules To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. Your air conditioner should be used in such a way that it is protected from moisture, e.g. condensation, splashed water, etc. -
Page 5: Electrical Information
The power supply must be replaced if it fails to reset when the TEST button is pushed; or when it cannot be reset. Please contact Sunpentown. If the power supply cord is damaged, it cannot be repaired, please contact Sunpentown. -
Page 6: Parts Identification
PARTS IDENTIFICATION Check all accessories are included in the package. Refer to the installation instructions for usage. Note: all illustrations in this manual are for explanation purposes only. The actual unit and parts may be slightly different. The actual shape shall prevail Suggested tools for window kit installation Medium-sized Phillips screwdriver Tape measure or ruler... -
Page 7: Front & Back Of Unit
Front 1. Control Panel 2. Blade Control Handle (adjust manually) 3. Vertical Louver Blade 4. Handle (both sides) 5. Remote Signal Receptor 6. Caster Back 7. Air filter 8. Air Inlet 9. Drain Outlet 10. Vent Control 11. Air Outlet 12. -
Page 8: Control Panel
AIR CONDITIONER FEATURES Before you begin, thoroughly familiarize yourself with the control panel and remote controller and the functions. The unit can be controlled by either the control panel or remote controller. CONTROL PANEL 1. POWER button Press to turn unit ON or OFF 2. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS COOL mode (operating temperature range: 17-35° C/62-95° F) Press the MODE button until the COOL indicator light illuminates. Press UP ( ) or DOWN ( ) buttons to set your desired room temperature. The temperature can be set within a range of 17-30° C / 62-88° F. Press the FAN SPEED button to select desired fan speed. -
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS Location The air conditioner should be placed on a firm foundation to minimize noise and vibration. For safe and secure positioning, place the unit on a smooth, level floor strong enough to support the unit. The unit has casters to aid placement, but it should only be rolled on smooth and flat surfaces. -
Page 11: Window Kit Installation
Installation in a double-hung sash window 1. Trim foam seal (adhesive type) to the proper length and attach to window stool. (Fig.5) 2. Adjust the length of the slider kit according to the width of window. Attach window slider kit to window stool, on top of foam seal. -
Page 12: Exhaust Hose Installation
Exhaust hose installation: Install or remove the exhaust according to usage mode: COOL or AUTO mode Install FAN or DRY mode Remove 1. Install the exhaust hose to unit as depicted in Fig.12. 2. Install the exhaust adaptor to the hose as shown Fig.12 in Fig.13. -
Page 13: Care And Maintenance
Do not wash the unit directly under a tap or use a hose. May cause electrical danger. If the power cord is damaged, contact Sunpentown. Fig.16 Air Filter Clean the air filter at least once every two weeks to prevent inferior fan operation due to dust. -
Page 14: Troubleshooting Tips
Error Codes: E1 – Evaporator temperature sensor error. Unplug the unit and plug it back in. If error repeats, contact Sunpentown Customer Service. E2 – Room temperature sensor error. Unplug the unit and plug it back in. If error repeats, contact Sunpentown Customer Service. -
Page 15: Remote Controller
REMOTE CONTOLLER Handling the remote controller Use the remote within a distance of 26 ft from the appliance, pointing it towards the receiver. Reception is confirmed by a beep. CAUTION Be sure there are no barriers between the remote and the unit’s receiver (i.e. -
Page 16: Function Buttons
Function buttons 1. TEMP DOWN button Press to decrease set temperature by 1° C (2° F) incr ements to 17°C (62° F) 2. MODE button Press to select operation mode: AUTO→COOL→DRY→FAN 3. RESET button Once the recessed RESET button is pressed, all settings will be cancelled and controller will return to default settings. -
Page 17: Display Panel
Display Panel 1. TRANSMISSION indicator Indication that remote is transmitting signal to the AC unit. 2. MODE display Displays the current operation mode: AUTO, COOL, DRY or FAN. 3. LOCK indicator Symbol is displayed when the Lock button is pressed. 4. -
Page 18: Using The Remote
Using the Remote Controller AUTO operation With the AC unit plugged in: 1. Press the MODE button to select Auto. 2. Press the TEMP button to set desired temperature, between 21-28° C / 70-84° F. Each press is an increment of 1° C (2° F). 3. -
Page 19: Your Guarantee
This guarantee is subject to the following terms: Sunpentown must be notified of the fault. Proof of purchase must be presented to Sunpentown’s nominated representative. The warranty will be void if the product if modified, misused or repaired by an unauthorized person.
