SPT WA-9061H Instructions Manual

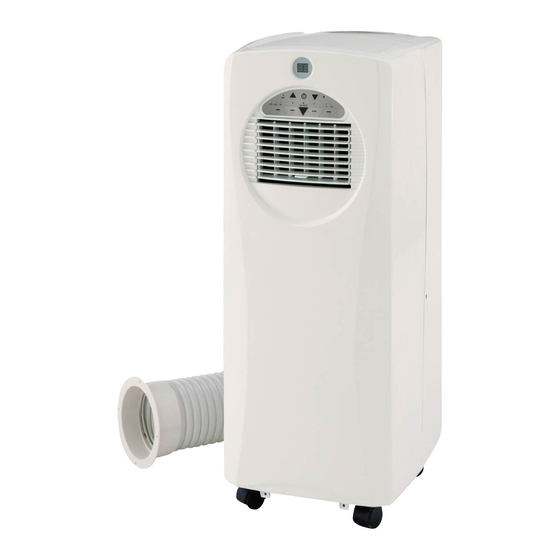

Portable air conditioner with heater
Hide thumbs Also See for WA-9061H:

Advertisement

Table of Contents

See also: Manual
www.sylvane.com 1-800-934-9194
www.sylvane.com 1-800-934-9194

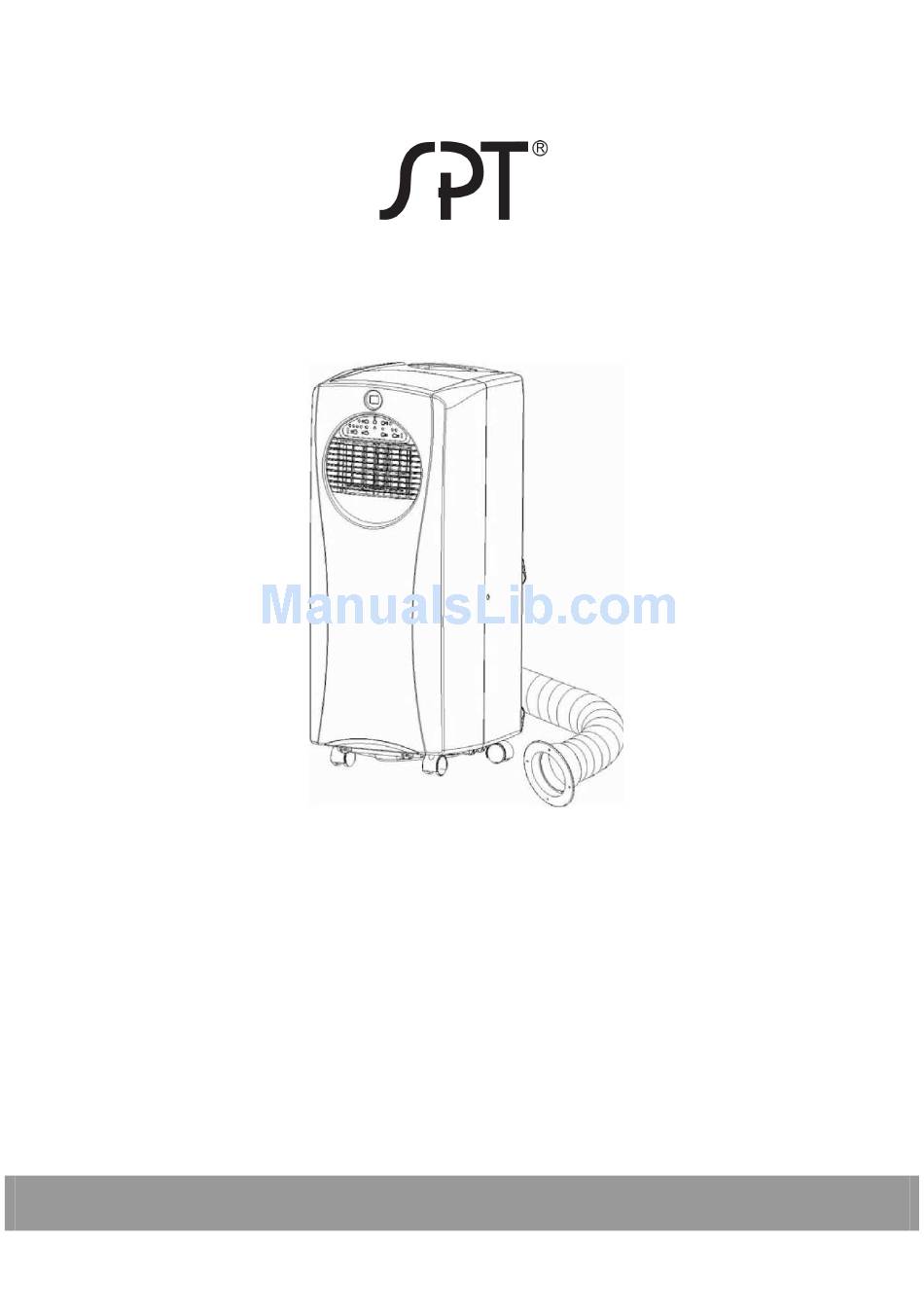

PORTABLE AIR CONDITIONER WITH HEATER
WA-9061H: 9,000 BTU
WA-1061H: 10,000BTU
☆
Read and retain these instructions for future reference
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WA-9061H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPT WA-9061H

Summary of Contents for SPT WA-9061H

  • Page 1 1-800-934-9194 www.sylvane.com 1-800-934-9194 PORTABLE AIR CONDITIONER WITH HEATER WA-9061H: 9,000 BTU WA-1061H: 10,000BTU ☆ Read and retain these instructions for future reference...

  • Page 2: Specification

    1-800-934-9194 www.sylvane.com 1-800-934-9194 SPECIFICATION · Model no. WA-9061H WA-1061H 9000 BTU/hr 10000 BTU/hr Cooling capacity 2637 W 2930 W 8500 BTU/hr 9500 BTU/hr Heating capacity 2491 watts 2783 watts 9.38 9.35 Power/Ampere consumption – Cooling* 960W / 8.29 A 1070W / 8.7 A...

  • Page 3: Before Use

    www.sylvane.com 1-800-934-9194 www.sylvane.com 1-800-934-9194 BEFORE USE GENERAL SAFETY Only use in the upright position on a flat level surface and at least 14in. from any walls or objects (fig 1 & 4). Do not place any objects on the unit or block the air inlet / outlet (fig.
  • Page 4 www.sylvane.com 1-800-934-9194 www.sylvane.com 1-800-934-9194 PARTS Front Back FIG.5 FIG.6 Display window Cord storage Control panel Air filter Air outlet Air inlet Carrying handle Exhaust air outlet Caster Air inlet Water stopper/drainage Accessories FIG.7 13. Exhaust hose 16. Plastic slider kit – piece 2 of 2 14.

  • Page 5: Installation

    www.sylvane.com 1-800-934-9194 www.sylvane.com 1-800-934-9194 INSTALLATION The unit is a portable air conditioner that may be moved from room to room. 1. Installing the plastic slider kit. Window kit FIG.8 Extend both ends of the exhaust hose by few inches. Connect hose to the back of unit by turning clockwise – do not over tighten. Connect adapter piece to hose by turning clockwise (with opening end facing you).
  • Page 6 www.sylvane.com 1-800-934-9194 www.sylvane.com 1-800-934-9194 Carbon Filter Installation 1. Remove filter frame from unit. 2. Remove the filter fixer from the filter frame. 3. Remove active carbon filter from plastic bag. 4. Insert active carbon filter to filter frame. 5. Replace filter fixer to frame. The active carbon filter is now held in between the filter frame and filter fixer.

  • Page 7: Operation

    www.sylvane.com 1-800-934-9194 www.sylvane.com 1-800-934-9194 OPERATION Control panel Mode (function) select button 10. “Temperature down” button Timer button 11. ON/OFF (power) button “Water Full” indicator 12. “Temperature up” button Sleep button 13. Timer operation indicator Fan speed button 14. Compressor operation indicator Low fan speed indicator 15.
  • Page 8 www.sylvane.com 1-800-934-9194 www.sylvane.com 1-800-934-9194 Setting fan speed 1. Press SPEED button to choose the desired fan speed, high or low. The corresponding indicator (HI or LOW) will illuminate. 2. If the unit is operating in AUTO mode, the SPEED button is invalid. Unit will automatically choose the fan speed based on the ambient temperature.
  • Page 9 www.sylvane.com 1-800-934-9194 www.sylvane.com 1-800-934-9194 Remote control All functions can also be performed with the supplied remote control. The remote control requires two (2) AAA batteries. Fig.16 Directing air flow NOTICE !
  • Page 10 www.sylvane.com 1-800-934-9194 www.sylvane.com 1-800-934-9194 DRAINAGE During the cooling process, some water will be extracted from the air into the unit. If the reservoir is full, both of Before cooling can resume, empty the water tank: Turn off the air conditioner and avoid moving it when full. eat until the unit is emptied.

  • Page 11: Maintenance

    www.sylvane.com 1-800-934-9194 www.sylvane.com 1-800-934-9194 MAINTENANCE Always unplug the air conditioner from power source before cleaning. Clean regularly to maximize the efficiency of the air conditioner. Cleaning the housing Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions.

  • Page 12: What Is Not Covered

    www.sylvane.com 1-800-934-9194 www.sylvane.com 1-800-934-9194 Your Guarantee If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge. This guarantee is subject to the following terms: Sunpentown must be notified of the fault.

This manual is also suitable for:

Wa-1061hWa-1061
