WINDOW AIR CONDITIONERS
MULTI-STEP SPEED ELECTRONIC CONTROL
Important Safety Instructions ..........................1-3
Installation Instructions......................................4-7
Normal Sounds.................................................8
WA-6022S: 6,000 BTU
WA-8022S: 8,000 BTU
WA-1022S: 10,000 BTU
WA-1222S: 12,000 BTU
TA B L E O F C O N T E N T S
Air Conditioner Features..............................8-10
Care and Cleaning......................................10
Remote Control............................................1 1-13
Troubleshooting Tip......................................14
Before using your air conditioner, please read
this manual carefully and keep it for future reference.
Advertisement
Table of Contents
Related Manuals for SPT WA-6022S
Summary of Contents for SPT WA-6022S
-
Page 1: Table Of Contents

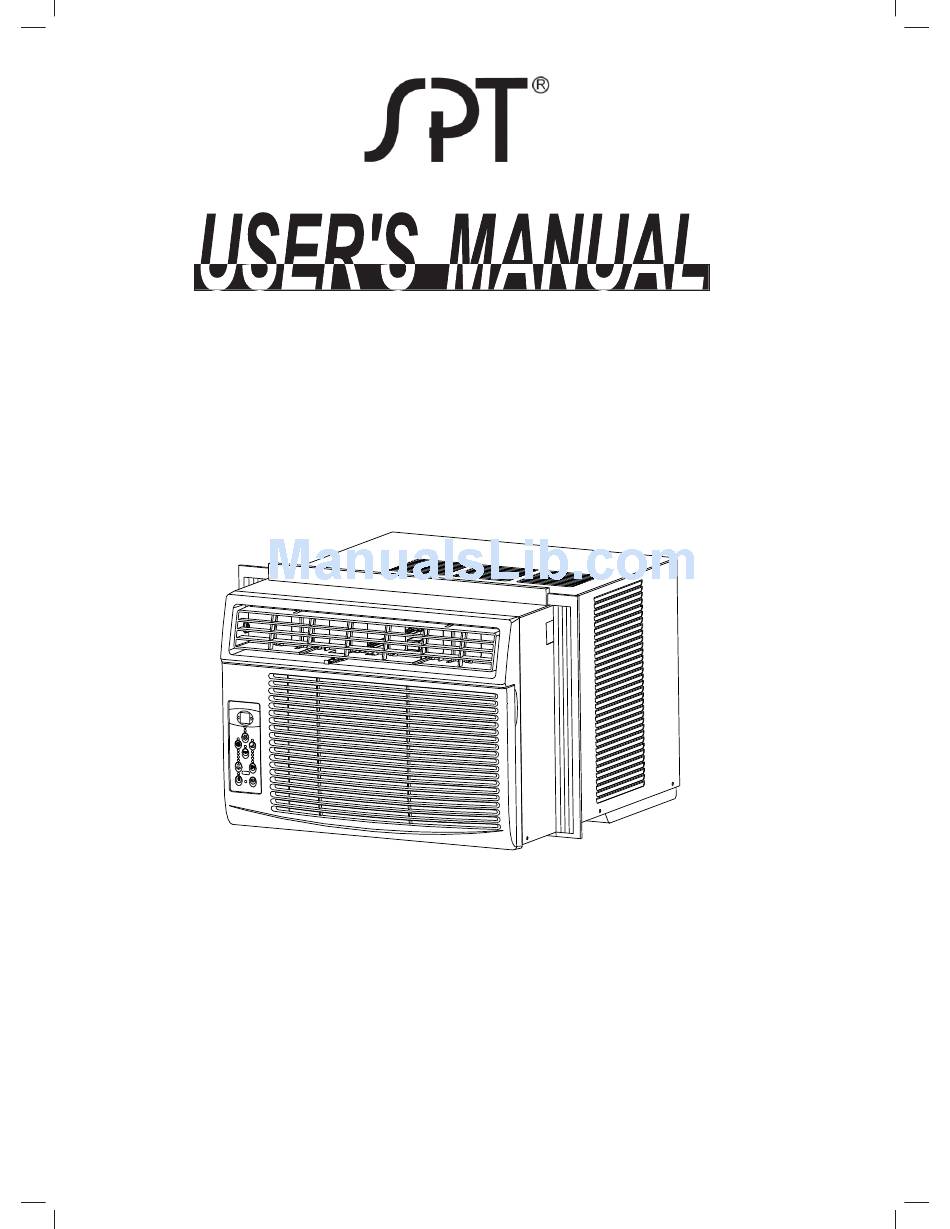

WINDOW AIR CONDITIONERS WA-6022S: 6,000 BTU WA-8022S: 8,000 BTU WA-1022S: 10,000 BTU WA-1222S: 12,000 BTU MULTI-STEP SPEED ELECTRONIC CONTROL TA B L E O F C O N T E N T S Important Safety Instructions ......1-3 Air Conditioner Features......8-10 Care and Cleaning........10... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of troubleshooting tips. - Page 3 IMPORTANT SAFETY INSTRUCTIONS CAUTION When removing and cleaning the Do not situate a pet or house Keep room well ventilated if used filter, be cautious of sharp edges plant in front of unit’s direct together with a stove, etc. air flow. and corners.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING NOTE: For Your Safety For Your Safety The power supply cord with this air Do not store or use gasoline or other flammable vapors and liquids in the vicinity conditioner contains a current detection of this or any other appliance. device designed to reduce the risk of fire.
-
Page 5: Installation Instructions
WINDOW SILL NOTE: INTERIOR WALL Save carton and these installation instructions for future reference. The carton is the best way Model WA-6022S/WA-8022S WA-1022S/WA-1222S to store unit during winter or when not in use. Min. Vertical 14” (356mm) 15.5” (394mm) Opening... -
Page 6: Mounting Hardware
(Fig.C) Fig.C TOP RAIL INSTALLATION NOTE: This step is only applicable to models WA-6022S and WA-8022S A: Remove the air conditioner from packaging and NOTE: For safety reasons, all four(4) screws MUST place on a flat surface. be securely fastened. - Page 7 (Fig.5). Carefully bring the "I" section window sash down behind the top rail. Measure from the cabinet edge WA-6022S & WA-8022S H: Approx. 3/4” to 1” WA-1022S & WA-1222S INSIDE H: Approx 1” to 1 3/8”...
- Page 8 INSTALLATION INSTRUCTIONS D. Drive 3/4” (19mm) locking screws through frame If AC is Blocked by Stor m Window holes into window sash. (Fig.8) Add wood as shown in Fig.11, or remove storm window before air conditioner is installed. If Storm Window Frame must remain, be sure the drain holes or slots are not caulked or painted shut.
-
Page 9: Normal Sounds
NORMAL SOUNDS High Pitched Chatter High efficiency compressors may have a high pitched chatter Vibration during the cooling cycle. Unit may vibrate and make noise because of poor wall or window construction or incorrect installation. Sound of Rushing Air At the front of the unit, you may hear the sound of rushing air being moved by the fan Pinging or Switching... - Page 10 AIR CONDITIONER FEATURES TO SELECT THE OPERATING MODE: CHECK FILTER FEATURE: Press Check filter button to initiate this feature. To choose operating mode, press Mode button. With This feature is a reminder to clean the Air Filter for each press of the button, the mode will cycle through more efficient operation.
-
Page 11: Care And Cleaning
FEATURES (Cont’d) CARE AND CLEANING CAUTION AUTO RESTART FEATURE If the unit breaks off unexpectedly due to power cut, Clean your air conditioner occasionally to keep it looking it will restart at the previous function automatically new. Be sure to unplug the unit before cleaning to when the power resumes. -
Page 12: Remote Control
REMOTE CONTROL Use the remote control within a distance of 20 feet and 180 degree radius to the front of the AC unit. Point the remote towards the receiver. Reception is confirmed by a beep. CAUTIONS The air conditioner will not operate if curtains, doors or other materials block the signals from ·... - Page 13 Using the remote Auto mode MODE Ensure the unit is plugged in and power is available. 1. Press the ON/OFF button to start the air conditioner. 2. Press the MODE button to select Auto. 3. Press the TEMP UP/DOWN button to set desired temperature. The temperature TIMER SPEED can be set within a range of 17 C/62 F~ 30 C/86 F in 1 C/1 F increments.
- Page 14 Timer operation (Auto-start or Auto-stop) Press the TIMER button to initiate the Auto-start and/or Auto-stop program. MODE Timer can be set up to 24 hours. 1. Press the TIMER button to program Timer-On or Timer-Off, the corresponding indicator will illuminate on unit’s control panel. TIMER SPEED 2.
-
Page 15: Troubleshooting Tip
TROUBLESHOOTING TIPS Before calling for service, review this list. It may save your time and expense. This list includes common occurrences that are not the result of defective workman-ship or materials in this appliance. Problem Solution · Wall plug disconnected. Push plug firmly into wall outlet. Air conditioner ·... - Page 16 Your Guarantee If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge. This guarantee is subject to the following terms: ·...
