SPT WA-1010E Instruction Manual

Portable
Hide thumbs Also See for WA-1010E:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
Enlarged version
Instruction Manual

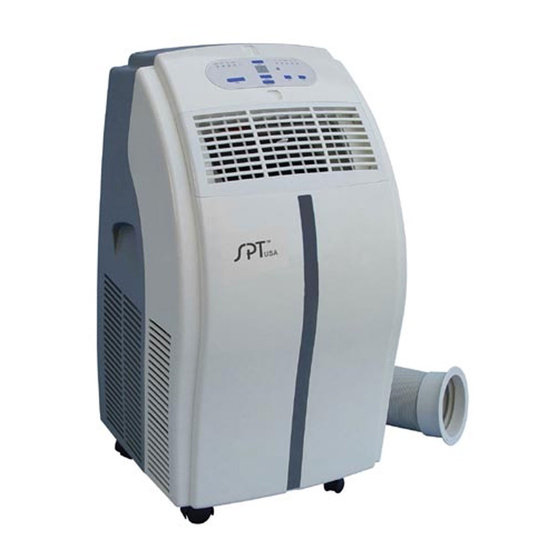

Portable Air Conditioner / Heater
For Models WA-1010E, WA-1010H, WA-1010M
WA-1230E, WA-1230H
Your Guarantee
P O R T A B L E
If this product is found to be faulty as a result of faulty materials or workmanship

Air Conditioner

within one year from date of purchase, it will be repaired or replaced free of charge.
This guarantee is subject to the following terms:
SPT
, must be notified of the fault.
USA
Proof of purchase must be presented to SPT
's nominated representative.
USA
The warranty will be void if the product is modified, misused or repaired by an
unauthorized person.
The guarantee after repair or replacement will not be extended beyond the
original one year period.
All replacement parts or units will be new or reconditioned.
Parts or units, which are replaced, become the property of SPT
.
USA
The warranty applies to the use of this product in the United States.
Warranty does not include freight charges.
This GUARANTEE is in addition to your Statutory Rights.
SUNPENTOWN Int'l Inc.
1-800-330-0388 www.spt-usa.com
It is important that you read
these instructions before
using your new purchase
Dear Customer: Please keep this warranty for your record. DO NOT return it.
and we strongly recommend
that you keep them in a safe
15
place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WA-1010E and is the answer not in the manual?

Questions and answers

Related Manuals for SPT WA-1010E

Summary of Contents for SPT WA-1010E

  • Page 1: Air Conditioner

    Instruction Manual Portable Air Conditioner / Heater For Models WA-1010E, WA-1010H, WA-1010M WA-1230E, WA-1230H Your Guarantee P O R T A B L E If this product is found to be faulty as a result of faulty materials or workmanship Air Conditioner within one year from date of purchase, it will be repaired or replaced free of charge.

  • Page 2: Cleaning The Filter

    Maintenance Always unplug the unit from the mains before beginning the cleaning. Cleaning the Housing Use a soft, damp cloth to wipe the body clean. Never use strong chemicals, oil-based products, detergents, chemically treated cloths or other cleaning solutions. These could possibly damage the cabinet. Important! Clean the exhaust air intake area (located on the side, near bottom) with a vacuum to remove dust accumulation.

  • Page 3: Before Use

    Operation ñ Mechanical Models Setting the Temperature Turn the THERMOSTAT to regulate the temperature you desire: range 64˚F to 90˚F. Setting the Timer Set the TIMER to the desired operating time (1 to 8 hours). When the set time has elapsed, the machine will shut off automatically. Regulating the Airflow Direction Turn the roller on the air vent to control the airflow direction from the vertical louvers.

  • Page 4: Parts

    Operation - Electronic Control Models Setting The Fan Speed Press the SPEED button to choose the fan speed you require, high or low. The indicator of high or low fan will light up at the same time. If the unit is in AUTO mode, it will select the fan speed automatically according to the ambient temperature (the related indicators, cool, fan or heat will light up), at this time the fan speed switch is invalid.

  • Page 5: Mounting The Exhaust Pipe

    Installation Mounting the exhaust pipe The supplied exhaust hose can be extended from 1 foot to 5 feet for mounting. It is recommended that you use the shortest possible length of hose. Take care to prevent any kink or bend in the middle of the exhaust hose, as this will trap hot exhaust air, which will radiate back into the room.

  • Page 6: Setting Function / Ventilation Speed

    Parts 1. Control Panel 5. Air Filter 2. Cooling Air Outlet 6. Air Inlet 3. Handle 7. Exhaust Air Outlet 4. Castors 8. Cord Hanger 9. Water Stopper (Rubber Plug Inside) Accessories 10. Adaptor - for insertion over the hose and into the back of the air conditioner.

  • Page 7: Drainage

    300 sq. ft. Power Supply 120V / 60H / 1 Phase Compressor Rotary Refrigerant R-22 Fan Speed Timer WA-1010E: 1-12hours WA-1010M: 1-8hours Thermostat 64°F - 90°F 63 lbs Net Weight Dimensions 17"W x 17"D x 30"H Working Temperature Cooling: 64°F to 110°F REMARKS: 1.
  • Page 8 Specifications Model Number WA-1230E Cooling Capacity 12,000BTU/hr Heating Capacity (1)(2) Power Consumption 950W / 9A Humidity Removal Capacity 65 pts./day Recommended Room Size* 400 sq. ft. Power Supply 120V / 60H / 1 Phase Compressor Rotary Refrigerant R-22 Fan Speed Timer 1-12hours Thermostat...

  • Page 9: Table Of Contents

    Table of Contents THANK YOU...……………...…………..1 Energy Saving Tips...……………………...………...1 SPECIFICATIONS ...…………………………...…………..2 WA-1010E, WA-1010M and WA-1010H ……………………………………………………..2 WA-1230E and WA-1230H .…………………………………………………………………...3 BEFORE USE ...…………………………...……………4 PARTS ...…………………………...………..….5 Accessories...………...5 INSTALLATION ...……………………...……………6 Mounting the Unit ...…………...6 Mounting the Exhaust Pipe...……...7 Installation of the Carbon Filter ...……………...…...7 OPERATION - ELECTRONIC CONTROL MODELS ...………...…..8...
