Service Questions: Contact Sunpentown at (800)-330-0388
Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com
Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just
a little preventative care on your part can save you a great deal of time and money over the life of
your air conditioner. Before operating this product, please read the instructions carefully and save this
manual for future use.

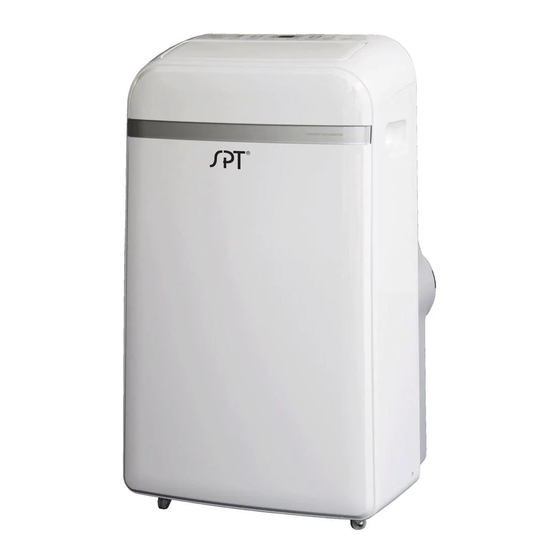

WA-1240E: 12,000 BTU Cooling only
WA-1240H: 12,000 BTU Cooling and Heating
WA-1420E: 14,000 BTU Cooling only
WA-1420H: 14,000 BTU Cooling and Heating
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SPT WA-1240E
Summary of Contents for SPT WA-1240E
- Page 1 Service Questions: Contact Sunpentown at (800)-330-0388 Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com WA-1240E: 12,000 BTU Cooling only WA-1240H: 12,000 BTU Cooling and Heating WA-1420E: 14,000 BTU Cooling only WA-1420H: 14,000 BTU Cooling and Heating Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventative care on your part can save you a great deal of time and money over the life of your air conditioner.
-
Page 2: Table Of Contents
CONTENTS SOCIABLE REMARK Sociable remark..........................2 SAFETY PRECAUTIONS Safety rules ............................3 Operating condition ...........................3 Electrical information .........................4 IDENTIFICATION OF PARTS Accessories ............................4 Names of parts...........................5 AIR CONDITIONER FEATURES Electronic control operating instructions ...................6 OPERATING INSTRUCTIONS Operating instructions ........................7 INSTALLATION INSTRUCTIONS Location ............................9 Window kit installation ........................9 Exhaust hose installation ........................12 Though-the-wall connection ......................12... -
Page 3: Sociable Remark
SOCIABLE REMARK DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities: A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user. -
Page 4: Safety Precautions Safety Rules
SAFETY PRECAUTIONS Safety rules To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. Always do this Never do this Your air conditioner should be used in such a way ... -
Page 5: Electrical Information
IDENTIFICATION OF PARTS WARNING For your safety Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Avoid fire hazard or electric shock. Do not use an extension cord or an adaptor plug. Do not remove any prong from the power cord. -
Page 6: Names Of Parts
IDENTIFICATION OF PARTS NAMES OF PARTS Front Control panel Horizontal louver blade (swings automatically) Caster Carrying handle (both sides) Fig.1 Rear Upper air filter (Behind the grille) Upper air intake Air outlet Drain outlet (Heating models only) Power cord outlet Power cord bracket (for storage purposes only) Bottom tray drain outlet... -
Page 7: Air Conditioner Features
AIR CONDITIONER FEATURES ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin, thoroughly familiarize yourself with the functions of the control panel and remote controller, then follow the symbol for the functions you desire. The unit can be controlled by the unit control panel alone or with the remote controller . OPERATION PANEL OF THE AIR CONDITIONER Fig.3 MODE select button... -
Page 8: Operating Instructions Operating Instructions
OPERATING INSTRUCTIONS Error codes and protection code: AUTO operation E1- Room temperature sensor error- When you set the air conditioner in AUTO Unplug the unit and plug it back in. mode, it will automatically select cooling, If error repeats, call for service. heating (for heating models only), or E2- Evaporator temperature sensor error- fan mode, depending on set temperature... - Page 9 OPERATING INSTRUCTIONS SLEEP operation - If unit is running in COOL mode when SLEEP function is activated, unit will automatically increase set temperature by 1°C/2°F after 30 minutes. After another 30 minutes, unit will again increase temperature by 1°C/2°F. - If unit is running in HEAT mode (heating models only) when SLEEP function is activated, unit will automatically decrease set temperature by 1°C/2°F after 30 minutes.
-
Page 10: Installation Instructions Location
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS Location The air conditioner should be placed on a firm foundation to minimize noise and virbration. For safe and secure positioning, place the unit on a smooth, level floor strong enough to support the unit. The unit has casters to aid placement, but it should only be rolled on smooth, flat surfaces. - Page 11 INSTALLATION INSTRUCTIONS Installation for a double-hung sash window 1. Trim foam seal (with adhesive) to the proper length and Foam seal A (adhesive type) attach to window stool (Fig.8) 2. Adjust the length of the slider kit according to the width of the window.
- Page 12 INSTALLATION INSTRUCTIONS Installation for sliding sash window 1. Trim foam seal (with adhesive) to the proper length Foam seal A (adhesive type) and attach to window frame (Fig.12). 2. Adjust the length of the slider kit according to the height of the window.
-
Page 13: Exhaust Hose Installation
INSTALLATION INSTRUCTIONS Exhaust hose installation: The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. COOL, HEAT (heating models only) Install or AUTO mode Fig.16 Remove FAN or DEHUMIDIFY mode Opening 1. Attach both adaptors A and B to exhaust hose. Extend each Hook end of the hose by couple inches and turn the adaptors as shown in Fig.16. -
Page 14: Water Drainage
INSTALLATION INSTRUCTIONS Water drainage: Continuous Drainage - COOL/DRY modes Remove the upper drain plug from back of unit. Attach drain connector (5/8” universal female mender) to a 3/4” hose (not included, purchase from any hardware store). Connect to spout. ... -
Page 15: Care And Maintenance
CARE AND MAINTENANCE CARE AND MAINTENANCE 1) Be sure to unplug the unit before cleaning or servicing. 2) Do not use gasoline, thinner or other chemicals to clean the unit. 3) Do not wash the unit directly under a tap or spray with water hose. -
Page 16: Troubleshooting Tips
TROUBLESHOOTING TIPS TROUBLE SHOOTING TROUBLES POSSIBLE CAUSES SUGGEST REMEDIES 1. Unit will not start - P1 appears in the display window Drain the water in the bottom tray. - Room temperature is lower than Adjust the set temperature. the set temperature.(Cooling mode) - The windows or doors in the room Make sure all the windows and are not closed. -
Page 17: Handling The Remote Controller
HANDLING THE REMOTE CONTROLLER Location of the remote controller. Use the remote controller within a distance of 26 feet from the appliance, pointing it towards the receiver. Reception is confirmed by a beep. 26’ CAUTIONS The air conditioner will not respond if curtains, doors or other barriers block the signal from the remote controller to the unit. -
Page 18: Function Buttons
HANDLING THE REMOTE CONTROLLER Function buttons SET TEMPERATURE( C) AUTO HIGH COOL HEAT TEMP ON/OFF MODE FAN SPEED SWING TIMER ON ECONOMY TIMER OFF RESET LOCK DISPLAY TEMP DOWN Button TIMER ON Button Press to activate Auto-on timer. Each press Push this button to decrease set temperature, in increases the timer setting by 30-minutes, up increments of 2°F (1°C). -
Page 19: Indicators On Lcd
HANDLING THE REMOTE CONTROLLER Indicators on LCD MODE display Indicates the current selected mode: AUTO, COOL, DRY or HEAT (heating models only). Transmission Indicator This transmission indicator lights up whenever remote controller is transmitting signals to the AC unit. Temp./Timer display Displays the set temperature (62°F to 88°F / 17°C to 30°C) or timer setting (0~24h). -
Page 20: Using The Remote Controller
HANDLING THE REMOTE CONTROLLER Using the remote controller SET TEMPERATURE( C) Auto operation AUTO COOL HIGH Ensure the unit is plugged in and power is available. HEAT 1. Press the MODE button to select Auto. TEMP 2. Press the TEMP up/down button to set desired temperature, between 62°F to 88°F (17°C to 30°C). - Page 21 HANDLING THE REMOTE CONTROLLER SET TEMPERATURE( C) Swing operation AUTO Use the SWING button to adjust the Up/Down airflow direction. COOL HIGH 1. When the button is quickly pressed once, the louver is adjusted by 6°. HEAT Keep pressing the button to adjust louver to desired angle. TEMP 2.
- Page 22 HANDLING THE REMOTE CONTROLLER TIMER OFF (auto-off operation) The TIMER OFF feature is useful when you want the unit to automatically turn off, say after you go to bed. TIMER OFF Example: To have the AC unit turn off after 10 hours: 1.
-
Page 23: Your Guarantee
Service Questions: Contact Sunpentown at (800)-330-0388 Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com Your Guarantee If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge. This guarantee is subject to the following terms: ...
