Summary of Contents for SPT WA-1061H

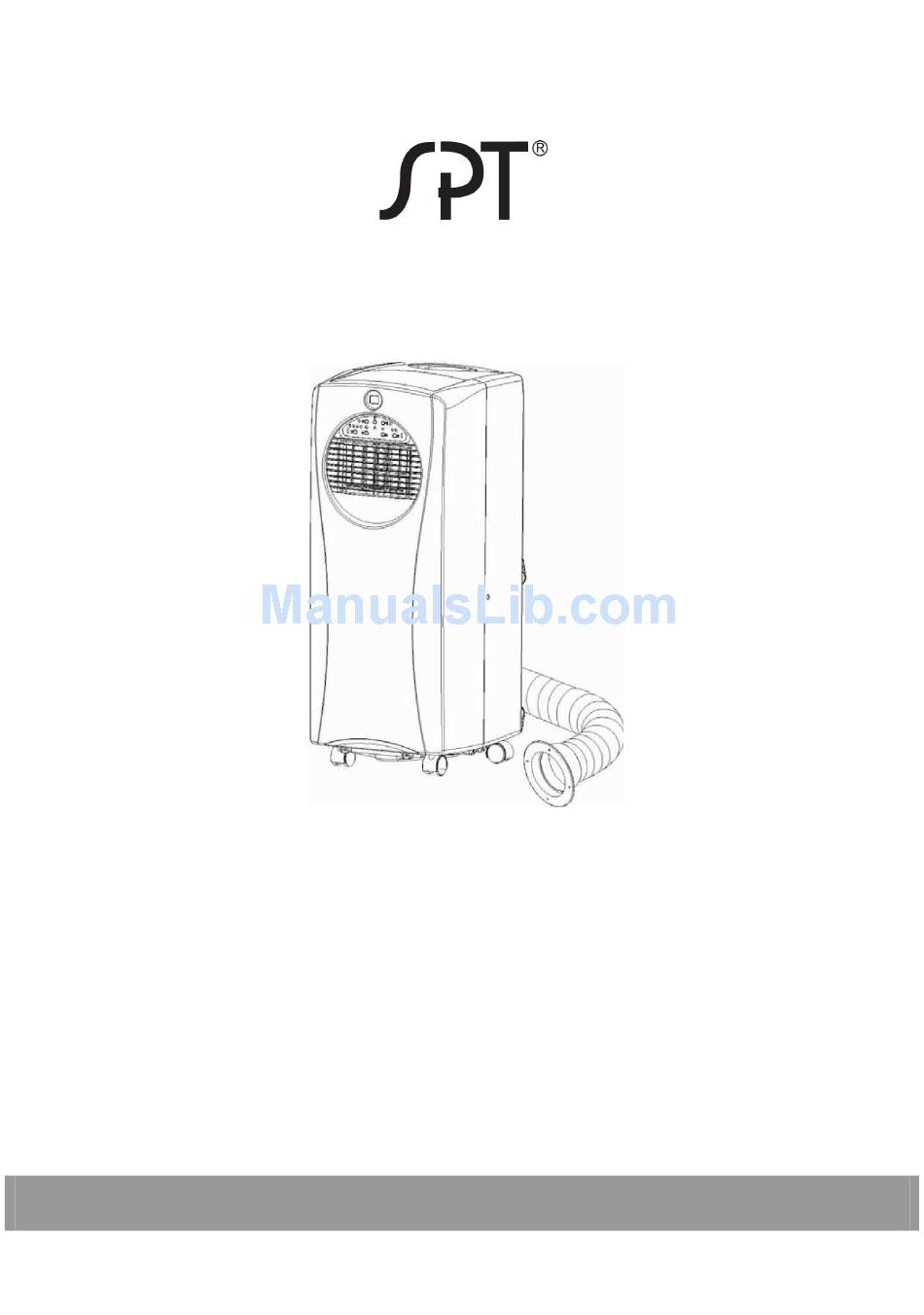

- Page 1 PORTABLE AIR CONDITIONER WITH HEATER WA-9061H: 9,000 BTU WA-1061H: 10,000BTU ☆ Read and retain these instructions for future reference...
-
Page 2: Specification
1~ 12 hours Cooling: 64~90° F (18~32°C) Heating: 45~77° F (7~25° C) 45 ~ 95° F 5 x 59 in 47.4 lbs 12W x 15D x 29.61H in WA-1061H 10000 BTU/hr 2930 W 9500 BTU/hr 2783 watts 9.35 1070W / 8.7 A 950W / 8.18 A... -
Page 3: Before Use
Set unit to maximum cooling on high initially and once room has reached the desired conditions, reduce temperature and fan speed settings. It is recommended to turn on the air conditioner when ambient temperature reaches 75° F. Do not wait until the room is excessively hot. - Page 4 PARTS Front Display window Control panel Air outlet Carrying handle Caster Accessories 13. Exhaust hose 14. Slider kit adapter – connects exhaust hose to slider kit. 15. Plastic slider kit – piece 1 of 2 Back FIG.5 Cord storage Air filter Air inlet Exhaust air outlet Air inlet...
-
Page 5: Installation
INSTALLATION The unit is a portable air conditioner that may be moved from room to room. 1. Installing the plastic slider kit. Extend both ends of the exhaust hose by few inches. Connect hose to the back of unit by turning clockwise – do not over tighten. - Page 6 Carbon Filter Installation 1. Remove filter frame from unit. 2. Remove the filter fixer from the filter frame. 3. Remove active carbon filter from plastic bag. 4. Insert active carbon filter to filter frame. 5. Replace filter fixer to frame. The active carbon filter is now held in between the filter frame and filter fixer.
-
Page 7: Operation
OPERATION Control panel Mode (function) select button Timer button “Water Full” indicator Sleep button Fan speed button Low fan speed indicator High fan speed indicator Receiver for remote control Sleep operation indicator Turning ON/OFF 1. Press ON/OFF button and unit will start automatically. If ambient temperature is: Above 74°... - Page 8 Setting fan speed 1. Press SPEED button to choose the desired fan speed, high or low. The corresponding indicator (HI or LOW) will illuminate. 2. If the unit is operating in AUTO mode, the SPEED button is invalid. Unit will automatically choose the fan speed based on the ambient temperature.
- Page 9 Remote control All functions can also be performed with the supplied remote control. The remote control requires two (2) AAA batteries. Fig.16 Directing air flow NOTICE !
- Page 10 If the reservoir is full, both of Before cooling can resume, empty the water tank: Turn off the air conditioner and avoid moving it when full. emptied. Continuous drainage (if you wish to operate the unit without the need to empty the water tank): Remove the drain knob and rubber plug and retain for future use.
-
Page 11: Maintenance
MAINTENANCE Always unplug the air conditioner from power source before cleaning. Clean regularly to maximize the efficiency of the air conditioner. Cleaning the housing Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions. -
Page 12: What Is Not Covered
This guarantee is subject to the following terms: Sunpentown must be notified of the fault. Proof of purchase must be presented to Sunpentown’s nominated representative. The warranty will be void if the product if modified, misused or repaired by an unauthorized person.
