Setting Function / Ventilation Speed - SPT WA-1010E Instruction Manual

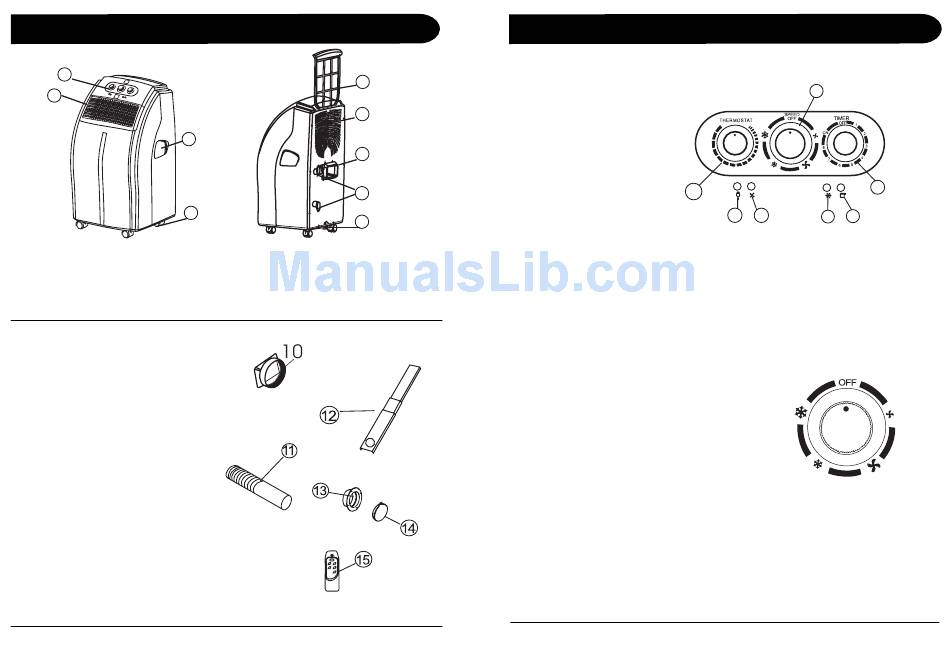

Parts
1
2
3
4
1. Control Panel
2. Cooling Air Outlet
3. Handle
4. Castors
Accessories
10. Adaptor - for insertion over the hose and
into the back of the air conditioner.
11. Exhaust Hose
Length: 14"-60"
Diameter: 4.75"
12.
Plastic slider kit - for filling the open window space,
with circular opening for inserting the hose & round
connector. One set is 3pcs
(forms up to 58.5"L x 6.5W)
13. Round Connector - to be used between
hose and window kit or between hose and
wall.
14. Cap for Round Connector
Remote Control
15.
(Electronic control models only)
5
6
7
8
9
5. Air Filter
6. Air Inlet
7. Exhaust Air Outlet
8. Cord Hanger
9. Water Stopper (Rubber Plug Inside)
5
Operation - Mechanical Models
1. Power indicator
2. Fan operating indicator
3. Cooling operating indicator
4. Full water indicator
5. Thermostat
6. Speed switch with options for:
LOW FAN, HIGH FAN, LOW
COOL, HIGH COOL
7. Timer (1-8 hours) as well as
ON/OFF switch
Turning ON/OFF
Set TIMER to ON for continuous operation (the unit will operate as long as it is not
turned off). Power indicator comes on.
To turn off the unit, turn the TIMER to the OFF position.

Setting Function / Ventilation Speed

WA-1010M
Turn the speed switch to select the required setting:
LOW FAN, HIGH FAN, LOW COOL, HIGH COOL,
SPEED OFF
WA-1010M
6
5
1 2
4
3
SPEE
High Cool
Low Cool
10
7
Low Fan
High Fan
