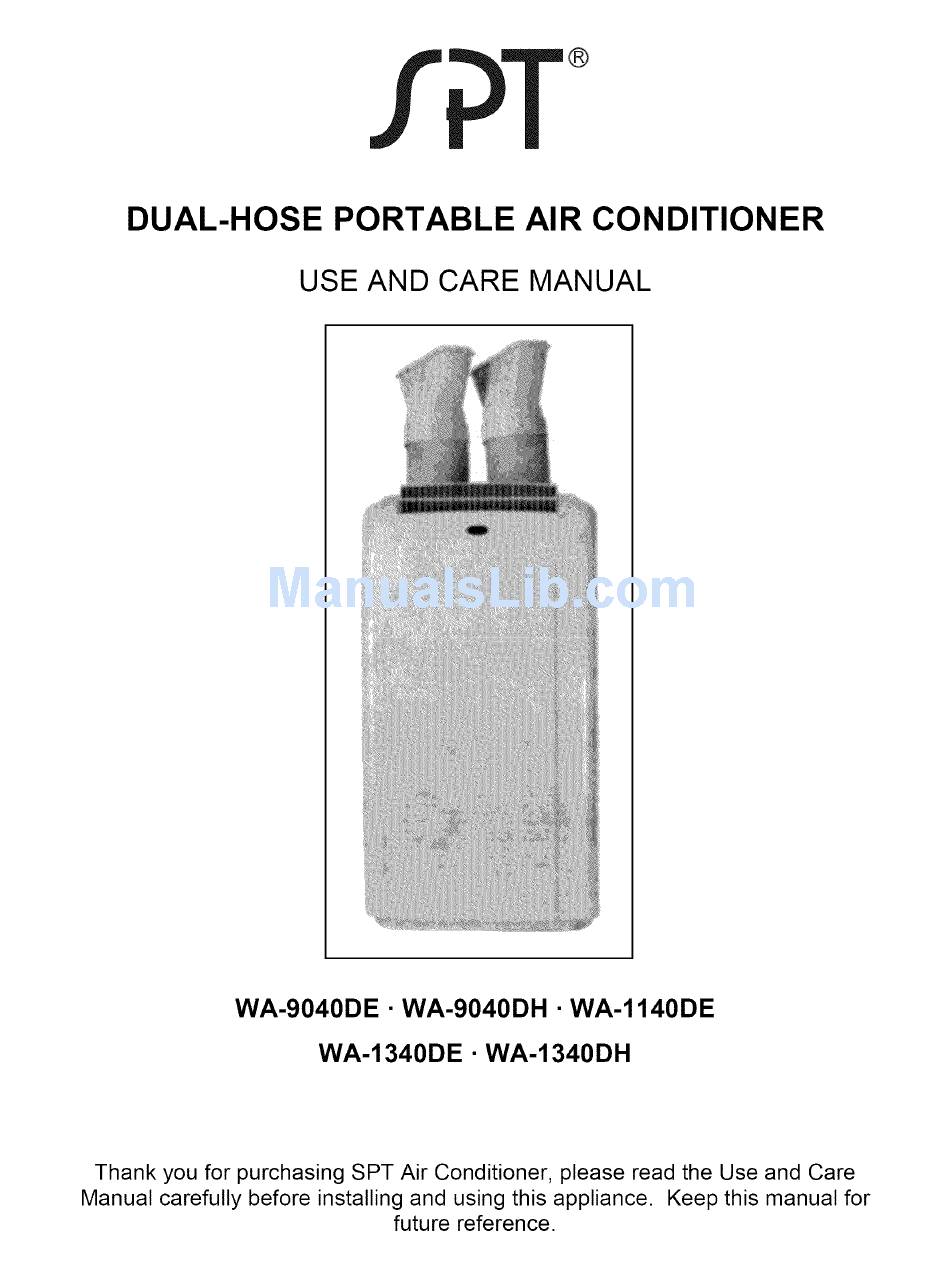

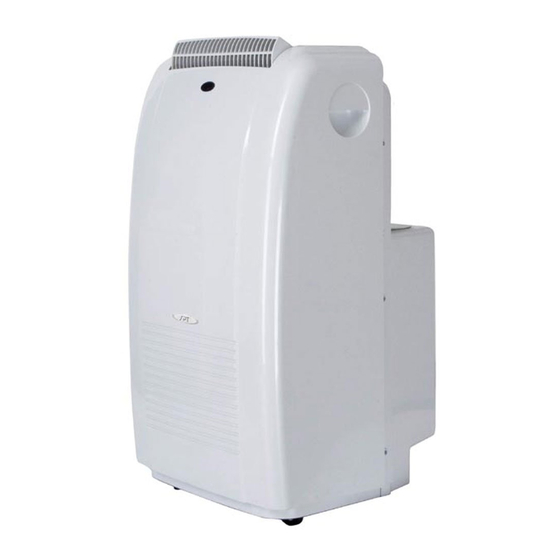

- Page 1 DUAL-HOSE PORTABLE AIR CONDITIONER USE AND CARE MANUAL WA-9040DE • WA-9040DH • WA-1140DE WA-1340DE • WA-1340DH Thank you for purchasing SPT Air Conditioner, please read the Use and Care Manual carefully before installing and using this appliance. Keep this manual for...
-
Page 2: Table Of Contents
CONTENTS Table of Contents Introduction Features Identification of Parts Unit Accessories and Window Installation Instructions Control Panel Remote control Operating Instructions Operating modes Cooling Smart mode Timer settings Setting the clock Super and Heater Protection Features Maintenance Troubleshooting Specifications Warranty Info Notes... -
Page 3: Introduction
Introduction Thank you for choosing this portable air conditioner. It will provide you and your family with all of the "Home Comfort" requirements for your home, cottage or office. This appliance can be moved from room to room within your home and set-up in just minutes. Electrical Specifications All wiring must comply with local and national electrical codes and be installed by a qualified... -
Page 4: Features
Features This unit is equipped with the following features: • Re-Start IC: Should there be a power outage, when power returns, unit will resume operating at last setting / mode. • Self-Evaporating Technology: Recycles the condensed water and evaporates it out with the exhaust air, for added cooling efficiency as well as energy efficiency. -
Page 5: Accessories And Window Kit
Accessories Installation Accessories Windowipatio door slider kit PART & DESCRIPTION QUANTITY 1. Air inlet hose Extends from 17 3/4" to 70 5/8" Air outlet hose Extends from 17 ¾" to 70 5/8" Window exhaust adapter 2pcs Adapter 2pcs Window/patio door slider kit 1 set (3pcs) From 28 3/8"... -
Page 6: Installation Instructions
Installation Instructions Selecting the best location • Best to place the unit near a window, patio door or French window. The shorter you can keep the intake/exhaust hoses, the more efficient the unit will run. • Keep a minimum space of 20 inches between the back of the unit to the wall or other obstacles. -
Page 7: Control Panel
Control Panel ON/OFF button: to start or stop the appliance. MODE button: to select the operating mode. (Smart -->Cooling --> Dry --> Fan only) C. FAN button: • Selects the fan speed. (Auto --> High --> Low) • Press and hold to start or stop auto-swing of louvers. D. -
Page 8: Remote Control
Remote Controller The remote controller transmits signals to the main unit. ON/OFF BUTTON To turn the unit ON or OFF MODE BUTTON Used to select the operating mode FAN BUTTON Used to select fan speed, in sequence: Auto, High, Low TEMPERATURE SETTING BUTTONS •... -
Page 9: Remote Control
How to Insert Batteries ,, Remove the battery cover according to the arrow direction. • Insert new batteries making sure the (+) and (-) match accordingly, • Slide the cover back in position. Note: * Use 2 AAA (1.5 volt) batteries. * Replace batteries with new ones of the same type when the display becomes dim. -
Page 10: Operating Instructions
Operating Instructions Operatinq modes MODE Selection Each time the MODE button is pressed, unit's operating mode is changed in sequence: UNIT: Smart _ Cooling _ Dry _ Fan only REMOTE: Cooling _ Dry _ Fan only FAN Selection Each time FAN button is pressed, the fan speed is changed sequence:... -
Page 11: Cooling
COOLING mode To lower the room's ambient temperature, operate the unit as follows: Press MODE button to select COOLING mode. Press FAN button to select desired fan speed. Press the temperature • or • button to set desired temperature. NOTE: •... -
Page 12: Dry
DRY mode To use the unit as a dehumidifier (remove moisture), operate the unit as follows: • Press MODE button to select DRY mode. • You can also select DRY mode while unit is powered off. Once DRY is selected, press the POWER button and unit will start in DRY mode. -
Page 13: Smart Mode
SMART mode Press the SMART button to enter smart mode (fuzzy logic operation). In this mode, the temperature is automatically set based on the room's ambient temperature. If unit is OFF, pressing the SMART button will turn the unit on and operate in SMART mode. -
Page 14: Timer Settings
Timer-ON and Timer-OFF settinqs iiii iiii Timer-ON and Timer-OFF are convenient features for those who would like the unit to start and stop after a certain time. you can set the unit to turn ON After 5-hours. When you return, your home will have achieved a comfortable temperature. -
Page 15: Super And Heater
SUPER mode SUPER mode (applicable for Cooling only models) SUPER mode is used to start or stop fast cooling. Press SUPER and unit will operate at high fan speed and automatically changing the current set temperature to 18°C (641=). SUPER mode can be entered while unit is in operation or off. You can adjust airflow direction and set timer in SUPER mode. -
Page 16: Protection Features
Protection Features Operating Conditions and Protection Features The protective device may trip and stop the unit in the following cases: Mode Situation Reason Action When outdoor temperature Compressor Remove air intake hose and is over 43°C (1091=) overheat use unit as single hose COOLING When ambient temperature Cooling coils... -
Page 17: Maintenance
Maintenance Cleaning the AC unit Cleaning the Air Filter Turn off unit and remove power source. It is necessary to clean the air filter after approximately 100 hours of usage, or whenever the filters appear dirty. Turn appliance off before Turn off unit. -
Page 18: Troubleshooting
Troubleshooting The following cases may not always be a malfunction. Please check the following suggestions before asking for service. Problem Possible cause and resolution • Check if the protector trip or fuse is blown. Unit does not run • Please wait 3~5 minutes before restarting - delay- protection may be preventing the unit to run. -
Page 19: Specifications
Specifications WA-9040DE WA-9040DH WA-1140DE WA-1340DE WA-1340DH Cooling capacity (BTU/hr) 9,000 9,000 11,000 13,000 13,000 Heating capacity (BTU/hr) 4,100 4,100 Power supply 115V / 60Hz 115V / 60Hz 115V / 60Hz 115V / 60Hz 115V / 60Hz Amperage 8.5 A 8.5 A 10.9 A... -
Page 20: Warranty Info
The warranty after repair will not be extended beyond the original one-year period. • All replacement parts will be new or reconditioned. • Parts, which are replaced, become the property of Sunpentown. • The warranty applies for the use of the product in the USA only. What is NOT COVERED: •...
