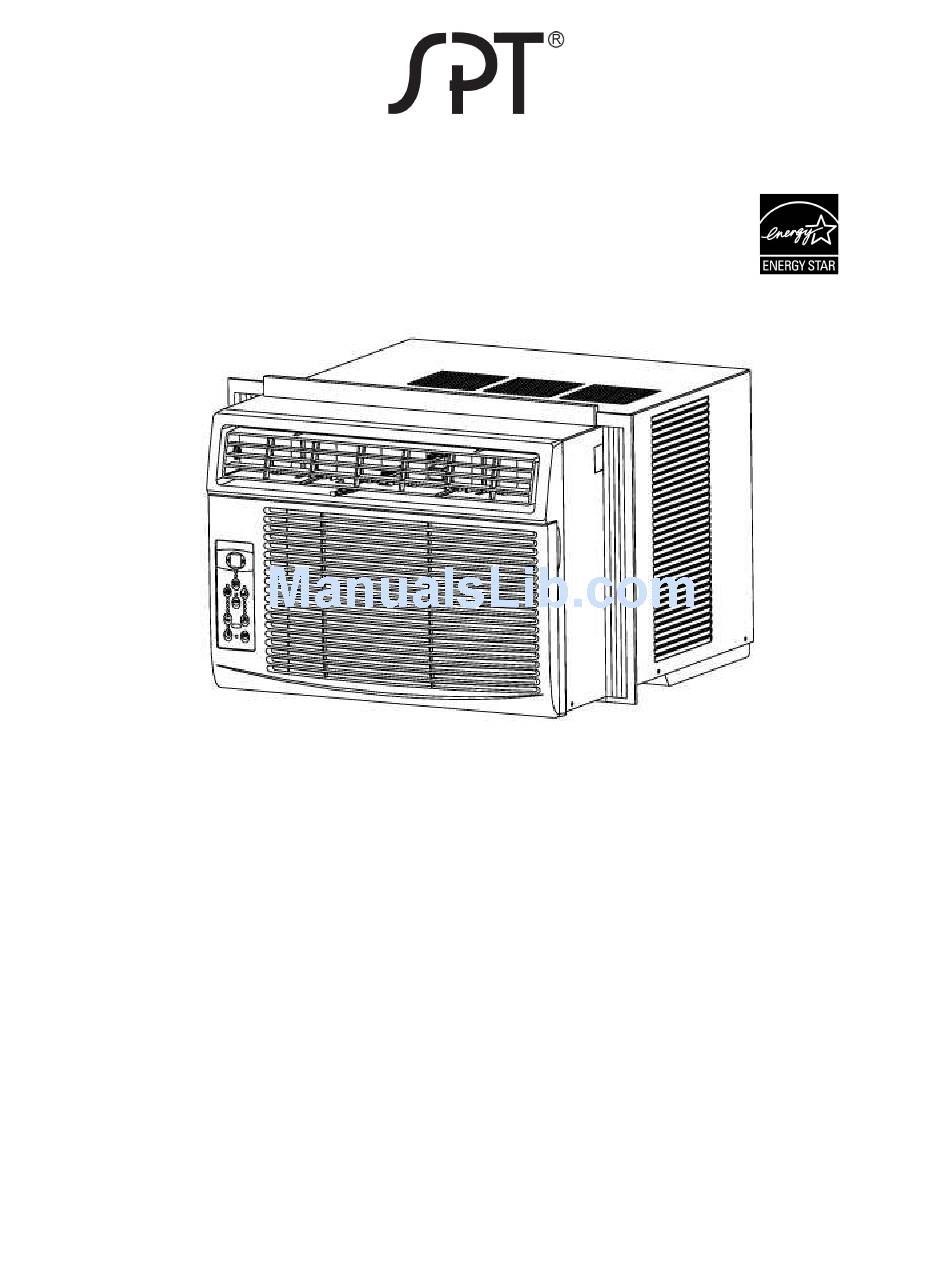

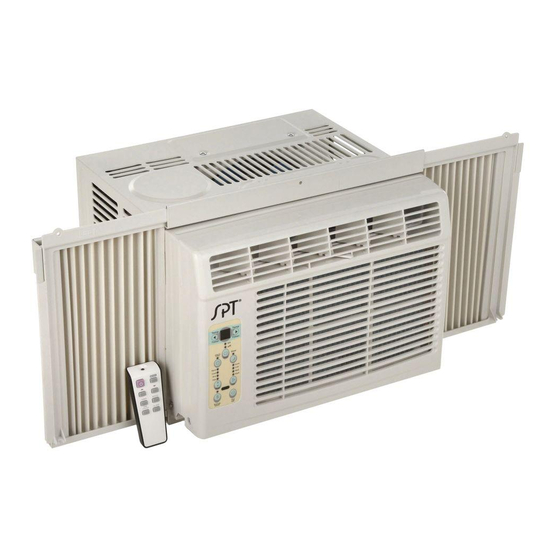

- Page 1 WINDOW / WALL-TYPE ROOM AIR CONDITIONER WA-6011S: 6000 BTU WA-8011S: 8,000 BTU WA-1011S: 10,000 BTU WA-1211S: 12,000 BTU Thank you for your purchase. Before using your air conditioner, please read this manual carefully and keep it for future reference.
-
Page 2: Table Of Contents
READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. -
Page 3: Safety Precautions
Always turn unit off and unplug power source before cleaning and maintenance. Do not expose pet or plant in direct airflow of the unit. Not intended for special purposes. Do not use this air conditioner to preserve precision devices, food, pets, plants and art objects. May cause deterioration of quality. -
Page 4: Operation Of Current Device
The power supply must be replaced if it fails to reset when TEST button is pushed or when it cannot be reset. A new one can be obtained from the product manufacturer. NOTE: This air conditioner is designed to operate under condition as follows: Outdoor temp... - Page 5 Sound of Rushing Air At the front of the unit, you may hear the sound of rushing air being moved by the fan. Gurgle / Hiss “Gurgling” or “hissing” noise may be heard due to refrigerant passing through evaporator during normal operation. ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin, thoroughly familiarize yourself with the control panel and remote as shown below and all its functions, then follow the symbol for the functions you desire.
-
Page 6: Air Conditioner Features
AIR CONDITIONER FEATURES (CONTINUED) NOTE: The following instruction represent the Unit Controls, the same instructions can be used for the Remote Control. TO TURN UNIT ON: TO CHANGE TEMPERATURE SETTING: TO ADJUST FAN SPEEDS: DO THIS: Press to select appropriate fan... -
Page 7: To Select The Operating Mode
AUTO mode: When the air conditioner is set in AUTO mode, unit will automatically select Cooling or Fan operation, depending on set and ambient temperature. Set temperature range is 62~86° F. -
Page 8: Sleep Feature
AIR CONDITIONER FEATURES (CONTINUED) SLEEP FEATURE: DO THIS: Press Sleep button. TIMER: AUTO START/STOP FEATURE: DO THIS: Press Timer button. CHECK FILTER FEATURE: DO THIS: Press Check Filter button. DISPLAYS: Display SLEEP feature: When selected in conjunction with COOL mode: Unit will operate at set temperature for 30 minutes. -
Page 9: Additional Things You Should Know
The LCD is capable of displaying temperature in ° F or ° C. To switch the temperature scale, press and h old both UP and DOWN buttons simultaneously for 3 seconds. Fresh Air Vent Control (WA-1011S and WA-1211S models only) Air Directional Louvers The Fresh Air Vent allows the air conditioner to: Circulate indoor air –... -
Page 10: Installation Instructions
Your air conditioner is designed install in standard double hung windows with opening widths of 23 to 36 inches (584mm to 914mm) (See Fig.1) Lower sash must have sufficient vertical opening for installation (Table 1). Side and rear of unit needs to be clear of obstacles to allow airflow through condenser. -
Page 11: Installation
(Fig.2 and Fig.3) With a firm grip on the air conditioner, carefully place the unit into the window opening. The bottom of the air conditioner frame should sit against the windowsill. (Fig.5) Carefully bring the window sash down behind the top rail. - Page 12 Unscrew and remove Sash Lock and Frame Lock. Slide side panels into frame. Keeping a firm grip on the air conditioner, raise window sash and carefully tilt unit backwards to drain any water condensation. Carefully lift unit from window opening. Store...
- Page 13 Clean your air conditioner occasionally to keep looking new. Be sure to unplug the unit before cleaning to prevent chock or fire hazards. CAUTION Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary. Trapped particles in the...
-
Page 14: Care And Cleaning
Noise when unit is cooling Window vibration – poor installation. Refer to installation guide or check with installer. Improper installation. Tilt air conditioner slightly toward the outside to allow water Water dripping INSIDE when unit is cooling drainage. Refer to installation instructions or check with installer. -
Page 15: Specifications
LCDI 5-15P, 13A 19.13 x 12.8 x 15.75 22 x 14.5 x 18 46/55 23 / 36 in. 14 in. R410A 60.5/57.3/53.2 250 hours Left-Right / Up-Down Tilt-out WA-1011S WA-1211S 10000 12000 10.8 10.8 115V~, 60Hz 115V~, 60Hz 10.2 1110 6 ft... -
Page 16: Handling The Remote Controller
Reception is confirmed by a beep. CAUTIONS The air conditioner will not operate if curtains, doors or other materials block the signals from the remote controller to the indoor unit. Prevent any liquid from falling into the remote controller. Do not expose the remote controller to direct sunlight or heat. - Page 17 Auto Operation Ensure the unit is plugged in and power is available. 1. Press the ON/OFF button to start the air conditioner. 2. Press the MODE button to select AUTO. 3. Press the TEMP UP/DOWN button to set desired temperature.
- Page 18 Cooling and Fan Operation Ensure the unit is plugged in and power is available. 4. Press the ON/OFF button to start the air conditioner. 5. Press the MODE button to select COOL or FAN mode. 6. In COOL mode, press the TEMP UP/DOWN button to set desired temperature.
- Page 19 You can program both Timer-On and Timer-Off simultaneously AUTO OFF → AUTO START This feature is useful when you want to stop the air conditioner after you go to bed and start it again in the morning or when you return home from work.
-
Page 20: What Is Not Covered
This guarantee is subject to the following terms: Sunpentown must be notified of the fault. Proof of purchase must be presented to Sunpentown’s nominated representative. The warranty will be void if the product if modified, misused or repaired by an unauthorized person.
