Top unit removal

1.
Open the top unit, and remove the top cover and face-down guide assembly.
2.

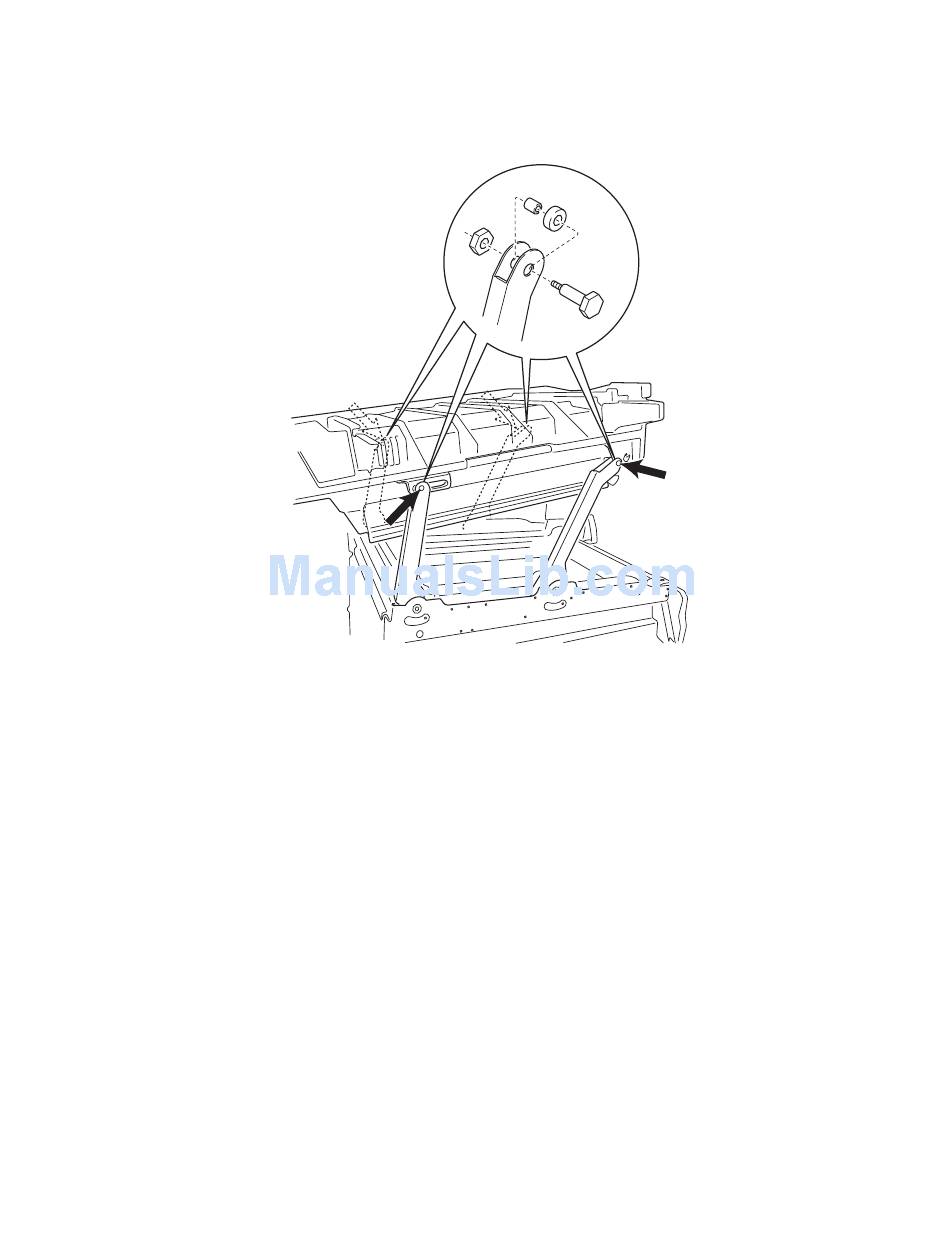

Remove the screws, and remove the top unit.

Transfer belt removal

Transfer belt removal has been simplified with a redesign of the changing shaft linkage to the belt up / down
clutch. The supplies menu no longer needs to accessed to remove the transfer belt unit.
Note: If the operator panel is inoperable, or if you have an unrecoverable error code, this procedure can still be
used.
1.
Turn the printer off, along with any optional devices connected to the printer.
2.
Open the front cover and top unit.
Warning:
Do not touch, drop, or place anything on the transfer belt. Touching the surface of the transfer belt
or placing items on the belt may cause damage.
5056-XXX
4-43
Repair information
