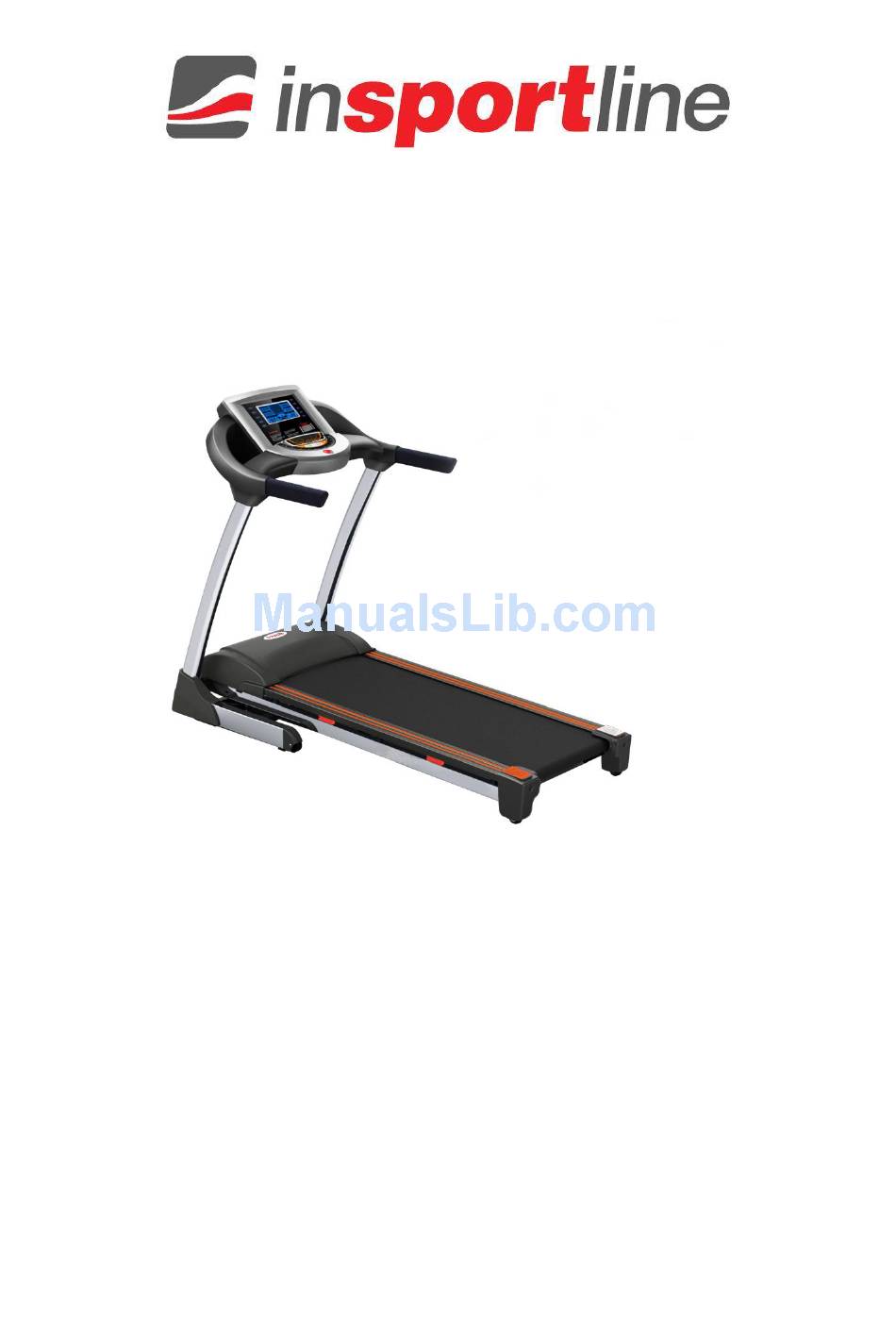

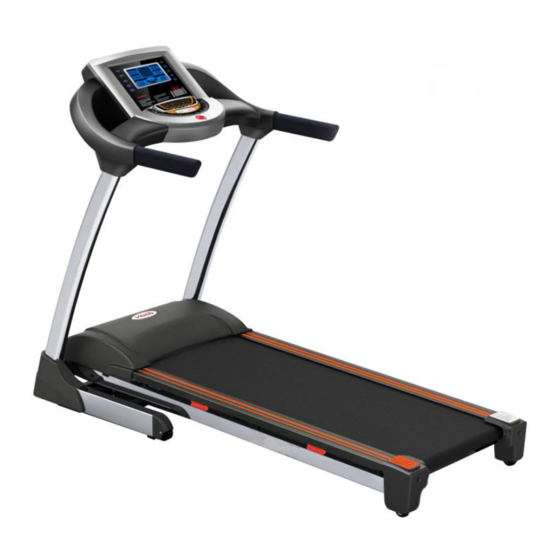

- Page 1 USER MANUAL – EN IN 9126 Motorized Treadmill inSPORTline T60i...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ............................ 3 PACKING DETAILS ............................. 4 EXPLODED VIEW ..............................5 LIST OF COMPONENTS ............................5 TREADMILL STRUCTURE ..........................6 ASSEMBLY INSTRUCTIONS ..........................7 USAGE ................................... 8 POWER SWITCH .............................. 8 SAFETY KEY ..............................8 FOLDING & UNFOLDING ..........................9 INSTRUCTION FOR CONSOLE ........................ -
Page 3: Safety Instructions
Special tips: Before installation and operation, please read this operation manual carefully and save this manual for future reference. SAFETY INSTRUCTIONS We have considered more for safety when we design and produce this item. However, in case of any unhappiness, please pay attention to these tips. We don’t assume responsibility if any accident cased by follow tips. -
Page 4: Packing Details
Before cleaning, moving and maintaining the machine, please pull off the plug for the socket. Warning: If don’t pull off, it will cause injury or damage for the machine. PACKING DETAILS Warning: Carefully install the product, avoid to make any damage. Notice: 1) Carefully read the instructions before installation. -
Page 5: Exploded View
EXPLODED VIEW These are all the components used in installation. All components are listed in the following form. LIST OF COMPONENTS No. Component Quantity Component Quantity Base frame Long bumper Frame Locating pad for decorative bead Left pillar accessory Rubber wheel Right pillar accessory Upper cover of meter Dashboard frame... -
Page 6: Treadmill Structure
Back roller Safety key Motor Sponge sheath Heart rate sensor Incline motor Upper control board Running belt Loudspeaker Running board Photoelectric line Multislot belt Upper line of communication Upper cover of motor Lower line of communication Decorative bead Red connecting line Left running belt adjustor Red connecting line Right running belt adjustor... -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Step 1: Set meter tube on the base frame a) Make the communication line through the right meter tube. b) Set meter tube on the base frame. Use 2 pcs of Screw M8*20 with 2 pcs of washer and 2pcs of Screw M8*60 with 2 pcs of washer, 2 pcs of nut to solid the meter tube. -
Page 8: Usage
Use 4 pcs of Screw M4*20 to solid left and right decorating cover at base. Step4: Disassemble connecting screw for base frame USAGE POWER SWITCH Insert the power plug into the socket and switch on the machine. The switch light will be on and you will hear a voice “Di”. -
Page 9: Folding & Unfolding
FOLDING & UNFOLDING Folding: Folding will help to save space. Before folding, please switch off and pull off the plug. Use your hand to lift the running board until it has been locked. Unfolding: Step on the supporting tube and pull running board with your hands. The running board will fall to the ground slowly. -
Page 10: Instruction For Console
INSTRUCTION FOR CONSOLE TECH INFO Time 00:00-99:59 Min Speed 1.0-20.0 km/h Incline 0-20% Distance 0.00-99.9 km Calorie 0-999 KCAL Heart rate 50-200 / Min Preset Program P1-P99 Program Body Fat Test Sexuality 01/02 (men/women) - Page 11 PANEL KEYS START Key: Press "Start" key, there will be 3 seconds countdown displayed on the window! After countdown, the machine will run at the speed of 1.0km/h. STOP Key: Under running condition, press “Stop” key, it will slow down then stop. Reset: Press "Stop"...
- Page 12 SPEED Direct Key: Use these keys, you could set speed for 5km/h, 10km/h, 15km/h directly. INCLINE Direct Key: Use these keys, you could set incline for 5%, 10%, 15% directly. DISPLAYED WINDOW Display running distance Display program picture Display running time Display running speed Display calorie Display heart rate...
-
Page 13: Detailed Instructions
DETAILED INSTRUCTIONS Quick start (for manual mode) Turn on power switch, put safe key in the right position. Press “START” key, there will be 3 seconds countdown displayed on the window! After countdown, the machine will run at the speed of 1.0km/h. ... -
Page 14: Maintenance
Body fat test Under ready condition, press “PROG.” key continuously to come into FAT. Press “MODE” key, you could find F-1, F-2, F-3, F-4, F-5 (F-1-- SEG , F- 2-- AGE , F-3-- HEIGHT, F-4-- WEIGHT, F-5-- FAT displayed on the window. - Page 15 b) Turn the both tension screws located at the end of the treadmill on the right and left sides, half a turn clockwise using the Allen key. (Diagram1 and Diagram 2) c) After adjustment, running belt still slips; please repeat the steps as above. Loosen the running belt (Diagram 2) Tighten the running belt (Diagram 1) The adjustment steps for running belt deflection...
-
Page 16: Cleaning
CLEANING a) Please power off and pull the plug out before cleaning. b) Wipe out the dust stuck on the surface and running board frequently. c) Please clean the surface of frame and running belt with a soft cloth dipped with suds, don’t use things like eradicator and naphtha. - Page 17 belt deflection” for reference. Displayed E0 on the Safety key problem Check the safety key or Reed pipe screen for safety key. Displayed E01 on the No sensor signal Check sensor wire, whether it is screen been connected well or whether it is broken.
-
Page 18: Instruction Manual For Irunning
If you still can’t solve the problems after taking the solutions above, we hope that you can contact our dealer or company as soon as possible. INSTRUCTION MANUAL FOR IRUNNING+ 1. Download iRunning to tablet APP name: [iRunning+] on Google play/iTune Store 2. - Page 19 User may adjust the treadmill incline by pressing UP/DOWN key or hot keys. Adjust range: 0~15 3.1.2 Speed adjustment drawing: User may adjust training speed by pressing UP/DOWN key or hot keys. Adjust range: 1~18 Warning: During any exercise, if turn on the safety switch, treadmill will pause immediately and show the Warning page;...
- Page 20 Setting page: User can set target Time/Distance/Calories by manual. After setting, press to start. During exercise, user can adjust Speed\Incline by pressing console buttons. After exercise, user can share workout information with Facebook or Twitter or else go back to Homepage. 3.4 User Program Setting page Program cluster...
- Page 21 Warm up Reminder When exercise start, there is 2 minutes Warm up time. If no hand pulse input, system will alarm and remind user to grip handlebar. Without pulse input for 30 seconds, console will stop. 4. Personal Setting Setting page Personal data User may set personal profile by entering [Setting] and select Metric or Imperial.
- Page 22 Select to plan training route. Set Start location by first long press and End location by second long press. After planning the route, press to start training. Start location End location Training page During exercise, user may click to choose monitor routes by Map view/Satellite view/Street view mode.
-
Page 23: Terms And Conditions Of Warranty, Warranty Claims
7. APP Supported Devices 7.1 Supported mobile devices: Android: 1280*752 Android 4.0 tablet (only for 10 inch above) i-OS: 5.0 or above, iPad4, iPad3, iPad2, iPad, iPad Mini 7.2 Work with machine type: SD8710 console and treadmill TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure. - Page 24 The Buyer is obliged to check the Goods delivered by the Seller immediately after taking the responsibility for the Goods and its damages, i.e. immediately after its delivery. The Buyer must check the Goods so that he discovers all the defects that can be discovered by such check. When making a Warranty Claim the Buyer is obliged, on request of the Seller, to prove the purchase and validity of the claim by the Invoice or Bill of Delivery that includes the product’s serial number, or eventually by the documents without the serial number.
