USER MANUAL – EN
IN 6923 Treadmill inSPORTline Borra Pro
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN 6923 and is the answer not in the manual?

Questions and answers

Summary of Contents for Insportline IN 6923

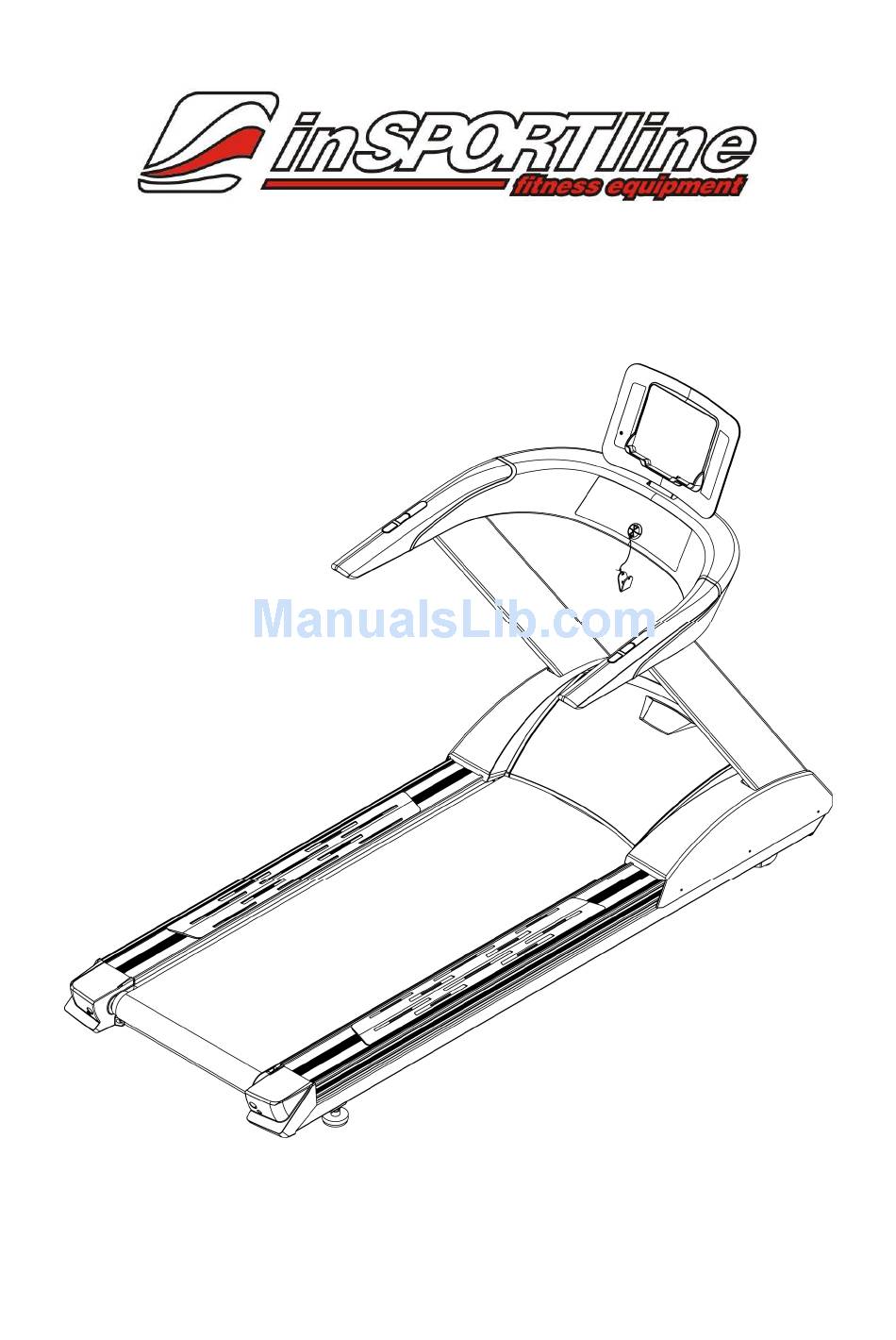

  • Page 1 USER MANUAL – EN IN 6923 Treadmill inSPORTline Borra Pro...
  • Page 2: Table Of Contents

    CONTENTS FITTINGS CHECKING ..........................3 OVERVIEW DRAWING ..........................4 Wire Rod and Power Switch........................5 Running Belt and Lateral Incline Base ....................6 IMPORTANT SAFETY INSTRUCTIONS ....................7 Power Requirement ..........................7 Add Lubricant ............................8 Level Adjustment ..........................9 Power Switch ............................
  • Page 3: Fittings Checking

    1. FITTINGS CHECKING Check the following fittings after opening the box. If there is anything missing, please contact with the local dealer.
  • Page 4: Overview Drawing

    2. OVERVIEW DRAWING...
  • Page 5: Wire Rod And Power Switch

    2.1 Wire Rod and Power Switch Wire Rod: Twist the power cord round the wire rod. Note: Don’t carry the treadmill by the wire rod. Pulling it by force will result in distortion. Power Switch: Circuit Breaker If the current excesses rated current, the circuit breaker will bounce. Press it back after 10 minutes.
  • Page 6: Running Belt And Lateral Incline Base

    2.2 Running Belt and Lateral Incline Base Running Belt: Don’t touch the running belt by hand to avoid danger while the treadmill is running. Lateral Incline Base: The hand shouldn’t be close to the incline base to avoid danger while the treadmill is ascending or falling.
  • Page 7: Important Safety Instructions

    3. IMPORTANT SAFETY INSTRUCTIONS When using this product, basic precautions should always be followed, including the following: Please read the instruction carefully before starting to use this product. Danger – To reduce the risk of electric shock: : : : Always unplug this product from the electrical outlet immediately after using and before cleaning the treadmill.
  • Page 8: Add Lubricant

    240+ 50/60 Wirings should be transported according to the electric law of the local country. High pressure wires, low pressure wires and underground wires should be transported separately and can’t connect with or twist other wires. Improper connection of the grounding plug can result in the risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the products are properly grounded.
  • Page 9: Level Adjustment

    Add SILICONE from the center of the running board to the running belt’s the left and right side which should minus 6 cm. 3.3 Level Adjustment The treadmill will wobble during workout and the incline angles will be affected if it is placed on uneven ground.
  • Page 10 Turn the right button 90°clockwise and contrarotate the left button (A) 90°. You will find the treadmill return to the center position automatically. If the running belt is moving towards the left side: : : : Turn the left button 90°clockwise and contrarotate the right button 90°. You can also find the treadmill return to the center position automatically.
  • Page 11: Assembly Instructions

    4. ASSEMBLY INSTRUCTIONS Ready the operation instructions carefully before use, then choose a flat position to assemble. This treadmill also can use other way to account the HRC. When in fitness, user can wear the chest pulse belt and the HRC will show in Pulse windows. 4.1 Pre-Assembly Check List ITEM Description...
  • Page 12: Hardware Pack

    4.2 Hardware Pack ITEM Description Allen bolt SK-470 Truss hex screw M8xP1.25x15 Hex head screw M8xP1.25x20 Stainless Steel Washer Ø8xØ19x3.0t Spring Washer M8 Truss hex screw M8xP1.25x30 Sucker Bushing Wrench + Screwdriver T-shaped Wrench 8mm x 200mm Hex Wrench + Screwdriver 5mm x 70mm x 70mm Hex Wrench 6mm x 80mm x 80mm...
  • Page 13: Assembly Steps

    4.3 Assembly Steps STEP 1 Two persons are required to finish the assembly steps. Caution!! Please follow exactly the assembly steps below to avoid injury. Remove the motor cover from frame (C), then slightly fix Upright (D, E) with screw (a, c) and washer (d, e). Note:...
  • Page 14 2. Fastening Uprights (D, E) tightly on Frame (C). Finally, put the motor cover back to Frame (C) and tighten it with Philips screws. Note: : : : (1) When tightening the screws, pay attention whether the control wire in the tube is hooked or pressed. (2) When connecting the control wires, pay attention whether the corresponding color is right, red matches with red and white matches with white.
  • Page 15: Pulse Detection System

    When you want to use I PAD, you can take out the sucker attached in parts package and stick it on the suitable place of computer(as left figure), then put your I PAD on supporter and use sucker to suck up your I PAD to avoid the I PAD falling down.
  • Page 16: Computer Operation Instructions

    6. COMPUTER OPERATION INSTRUCTIONS 6.1 Subject Instruction This computer is 10.1”TFT-LCD Window. Display functions include BPM, SPEED, DISTANCE, KCAL, INCLINE, PACE, TIME, CHANNEL, VOLUME, PROGRAM figure. 1. SPEED/INCLINE/DISTANCE:Indicate the value of speed, inclination angle and distance during the workout. 2. KCAL:Unit of calories consumption while workout(kcal). 3.
  • Page 17 4. BPM:Unit of heart rate(times/min). 5. CHANNEL: Under digital TV mode, channel quantity will show on movie screen. 6. VOLUME:Display the volume under AV/ DTV/MP3 or iPod mode. PROGRAM profile: Goals mode: This program consists of Time, Distance and Calories goals to select. programs mode:There are six exercise programs to choose, such as interval exercise program, stable exercise program and so on.
  • Page 18 2. If you like to use the default settings, directly press to return to start/ready status. • The purpose of setting weight is that built-in program calculates calorie burn based on weight, so you are required to set your weight when re-start the treadmill or every time plug back the safety key. 3.
  • Page 19: Key Functions (Any Effectively Key Should Create One Sound)

    6.2 Key Functions (Any effectively key should create one sound) Under start/ready status, motor will with the lowest speed of 0.8 kph (0.5 mph) and the incline automatically returns to 0%. Under program control menu--motor will start with the preset value. Press this key to stop the treadmill during your workout, and in the same time, to stop counting for all of values.
  • Page 20: General Operation And Instructions

    1. ON:Touch this key to turn on multimedia function (DTV、AV、MP3 or iPod mode),press again to turn off(OFF). 2. TV:Touch this key to switch among DTV、AV、MP3 mode (circularly) 3. START:Function as key. 4. STOP: Function as key. 5. MODE:Press this key to set 1-32 levels under USER mode. 6.
  • Page 21: Exercise Program Summary

    • During level adjustment, bar chart displays INCLINE and SPEED in 1-32 stages. Press to adjust the level intensity L1~L10 (Refer to attached pages). • The total workout time to run a PROGRAM is divided by 32 stages. 13. Under Pause state, program will be over after 1 minute, or during workout, press key, the count up value window will display and after 20 seconds, it will jump back to Start/Ready menu.(User can press...
  • Page 22 5. Press Key when motor is running, then the speed of motor will decrease to stop and the angle of incline motor will not change. Center window will display ”PAUSE”. If press key again, the motor will restart and speed up slowly to the previous speed, incline maintains the preset height before stop.
  • Page 23 2. After sub-program is selected, press key to adjust the workout level. There are total 10 levels of intensity. 3. After selected LEVEL, press key, at this time you can press key to adjust TIME (Default: 20 min, Range: 20-99min). 4.
  • Page 24 FEMALE DISTANCE ≧1.65 <20 <0.95 <1.15 <1.35 <1.65 ≧1.65 <30 <0.95 <1.15 <1.35 <1.65 ≧1.55 <40 <0.85 <1.05 <1.25 <1.55 ≧1.45 <50 <0.25 <0.95 <1.15 <1.45 ≧1.35 >=50 <0.65 <0.85 <1.05 <1.35 RESULT HRC (need to wear wireless chest belt) The purpose of this program is self-training based on heart rate.
  • Page 25 Preset L Preset L Preset L Preset L 113 49 113 50 112 51 112 52 111 53 110 54 110 55 109 56 109 57 108 58 107 59 107 60 106 61 106 62 105 63 104 64 104 65 103 66 User mode...
  • Page 26: Error Signal

    6. While setting parameters, if you want to cancel the previous parameter, press key to turn to the first item to reset or press key to return to Start/Ready menu. Race 1. When editing, user should set objective distance (0.1、0.4、1.0、2.0、5.0、10.0 km/mile) and estimate the time to finish the target value.
  • Page 27 (1)Nike+iPod Exercise Function After user connect iPod connective wire with iPod sets, right lower corner of screen’s Nike+iPod typeface will change from silver to red color, it means under connection, when Nike+iPod turn from red to gold color means successful connection (remark 1) Press START or procedure controlling start, screen will show the individual training information that user set in iPod sets, as ages, weight and so on, confirm and press ENTER.
  • Page 28 1. User can start multimedia during iPod sets connecting condition, original mp3 mode change to iPod mode (remark 3) 2. iPod mode have music and videos total 2 kinds of functions for using, music functions can read the MP3 music in iPod sets, videos functions can read MP4 movie in iPod sets. 3.
  • Page 29: Project Mode

    6.7 Project Mode When you first use this computer, please enter into this mode to adjust TV system setting and other items are not allowed to change by non-engineer. Entering method: Under start/Ready mode, press key once and then press key at once.
  • Page 30 +/-key:Portrait item select key;ENTER:Confirmation key;CLEAR key:Cancel installation or return to the last option menu. CHANNEL↑/↓Key:Portrait item select key;VOLUME +/- key:Transverse item select key; 4. After setting the country, press ENTER key again and it will display ”Do you want to install?”,please select ”Yes”0.
  • Page 31 11. Then ”Do you want to perform factory default?” will display, choose Yes. 12. Repeat step 3. P.S. You can just change Factory Default of Main Menu and the rest can’t be changed.
  • Page 32 E7 incline function malfunction trouble shooting : Remove Safety key and then insert back it, incline motor will calibrate automatically and return to normal ADC value after several seconds. If problem still can’t be solved, press STOP key to enter into start/ready mode. Press ENTER key and don’t release it, then press MODE key to enter into configuration mode.
  • Page 33 (Picture 2) (Picture 1) E6 incline function malfunction trouble shooting 1. Please remove the motor cover in front of the running board. Check whether the power cord and signal wire of the incline motor are off or not.(Please refer to Fig E1 B-b). 2.
  • Page 34: Program Diagrams

    7. PROGRAM DIAGRAMS...
  • Page 42 AEROBIC...
  • Page 43 FAT BURN...
  • Page 44: Parts List

    8. PARTS LIST q'ty item no. Description needed /set HTF229FE-C computer console SOC8 nylon nut M8xP1.25 RD-25-001 film keyboard 25 keys BAE0300-300-10 rubber pad 30mmx30mmx1.0t single side tape black JTFD002 computer shelf w/ handrail tube assembly SDA8-15 truss hex screw M8xP1.25x15 P-3182 hand grip pulse plastic base NO-4994...
  • Page 45 SDA8-30I truss hex screw M8xP1.25x30 SHA6-12N counter sink philips screw M6XP1.0X12(ni) SAK3-8 round head philips self-tapping screw(flat end ø3x8 XL-1251 middle control wire 24#12C (2x6) XL-1250 upper control wire 24#12C (2x6) XL-836B lower control wire 24#12C (2x6) XEK-028-260 hand grip pulse board SCE5-10 truss philips screw(cutted end) M5xP0.8x10 XHB-RE06 5K...
  • Page 46 SPA030-080-05 Washer ø3xø8x0.5t SAA5-10GZ Round Head Philips Screw M5xP0.8x10 (Galvanization) SAE5-12 Round Head Philips Screw M5xP0.8x12 P-1720 Plastic Washer XEB-009 Filter BAE-001 Rubber Pad XRB-023-017C Transducer (2.0Hp,220V) RM5LDH Note: Transducer must be bought with XLT027,XLT029 Extension Wire *1 XEH-003-001 Power Cord Socket XEA-A001 Power Switch XLZ-TM...
  • Page 47 P-1927 Assistant Wheel T4B003E00095 Bushing ø10.5xø15.8x9.5(Post) SGA10-35I CKS Hex Screw M10xP1.5x35 CB00041 Running Belt NRL-005E Front Roller SGA10-100I CKS Hex Screw M10xP1.5x100 121A SPA100-200-10 Flat Washer ø10xø20x2t SPD10 Inner Toothed Washer M10 SOA10 Hex Nut M10xP1.5 XLT044 Extension Wire(Kelly)14AWGx450x2R NRL-005F Rear Roller 126A SGA10-80I...
  • Page 48 XLT032 Extension Wire(White) 14AWGx450x2t XHA-T34 Chest Belt Pulse Emitter POLAR T34 PEC-UC-0.5 Wire Clip Knob SEA8-20I Allen Bolt M8xP1.25x20 SPA080-190-30 Washer ø8xø19x3.0t XLT027 Extension Wire(White) 14AWGx260x2t XLT029 Extension Wire(Black) 14AWGx260x2t XL-955B TV Cable set(lower) (RG-6/U) XEL-10-002 10.1"TFT-LCD digit panel (contain touch screen) BAA0150-165-10 Foam Sticker 15mmx165mmx1.0t XL-931...
  • Page 49: Exploded View

    9. EXPLODED VIEW...
  • Page 50: Terms And Conditions Of Warranty, Warranty Claims

    10. TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 40/1964 Coll. Civil Code, Act No. 513/1991 Coll., Commercial Code, and Act No.
  • Page 51 +420 556 770 190, Mobile: +420 604 853 019, servis@insportline.cz Fax: +420 556 770 192, (Service +420 556 770 191) Web: www.insportline.cz, www.worker.cz, www.worker-moto.cz INSPORTLINE, s.r.o. Bratislavska 36, 911 05 Trencin, Slovakia CRN: 36311723, VAT ID: SK2020177082 Orders: +421(0)326 526 701, +421(0)917 649 192, objednavky@insportline.sk...
