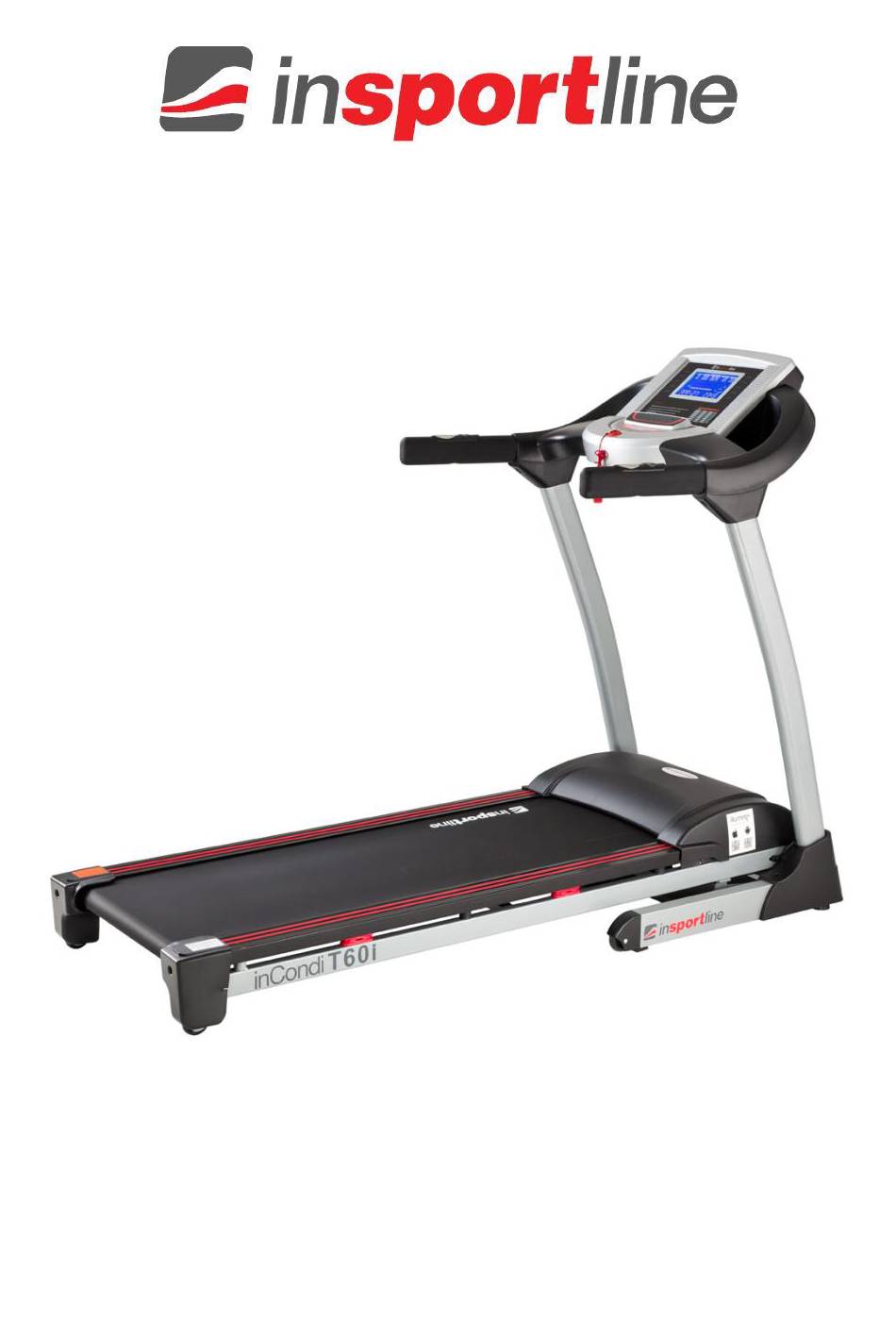

- Page 1 USER MANUAL – EN IN 9126 Treadmill inSPORTline inCondi T60i...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 EXPLODED DIAGRAM ........................... 5 LIST OF COMPONENTS ........................6 TREADMILL STRUCTURE ........................7 ASSEMBLY ............................. 8 Step 1 ..............................8 Step 2 ..............................8 Step 3 ..............................9 USAGE ..............................10 POWER SWITCH ..........................10 SAFETY KEY ............................. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • Always clip the safety key to your clothes or belt before starting exercising. • Move naturally, forward. Do not look on your feet. Only for one person can use the product on the same time. • Speed increase regularly, not immediately. •... - Page 4 • Category: HA according to EN 957 • WARNING: The heart rate monitoring system may not be accurate. Overloading during training can cause serious injury or death. If you experience nausea, stop the exercise immediately!
-
Page 5: Exploded Diagram
EXPLODED DIAGRAM... -
Page 6: List Of Components
LIST OF COMPONENTS Name Base frame Frame Left pillar accessory Right pillar accessory Dashboard frame Incline frame Pressure rod Motor stator Front roller Back roller Motor Incline motor Running belt Running board Multislot belt Upper cover of motor Left cover Right cover Right running belt adjustor Safety brace for base frame and frame... -
Page 7: Treadmill Structure
Surface paster Safety key Sponge sheath Heart rate sensor Upper control board Loudspeaker Photoelectric line Upper line of communication Lower line of communication Red connecting line Red connecting line Green connecting line Power connector Reed pipe for safety key MP3 module Power switch Overload protector Chest belt sensor... -
Page 8: Assembly
ASSEMBLY • Read this manual before assembly. • Check the hardware. • Ensure that you have the right tools. • Prepare an area to assemble. • Follow the instruction accordingly. • Do not use force for assembly. • Periodically tighten the treadmill. •... -
Page 9: Step 3
• Put decorating cover for meter on meter tube. • Make sure that communication lines are connected correctly, in case they are connected in reverse. • Put meter on the meter tube. Use 4 pcs of Screw M8*20 with 4 pcs of washer, 2 pcs of nut to solid the meter. -
Page 10: Usage
USAGE POWER SWITCH Insert the power plug into the socket and switch on the machine. The switch light will be on and you will hear a voice “Di”. You will find the meter light will also be on. SAFETY KEY The machine can work only when you put safety key at the appointed position. -
Page 11: Instruction For Console
INSTRUCTION FOR CONSOLE TECH INFO Time 00:00-99:59 Min Speed 1.0-20.0 km/h Incline 0-20% Distance 0.00-99.9 km Calorie 0-999 KCAL Heart rate 50-200 / Min Preset Program P1-P99 Program Body Fat Test Sexuality 01/02 (men/women) - Page 12 PANEL KEYS START Key: Press "Start" key, there will be 3 seconds countdown displayed window! After countdown, the machine will run at the speed of 1.0km/h. STOP Key: Under running condition, press “Stop” key, it will slow down then stop. Reset: Press "Stop"...
- Page 13 SPEED Direct Key: Use these keys, you could set speed for 5km/h, 10km/h, 15km/h directly. INCLINE Direct Key: Use these keys, you could set incline for 5%, 10%, 15% directly. DISPLAYED WINDOW Display running distance Display program picture Display running time Display running speed Display calorie Display heart rate...
-
Page 14: Detailed Instructions
DETAILED INSTRUCTIONS Quick start (for manual mode) • Turn on power switch, put safe key in the right position. • Press “START” key, there will be 3 seconds countdown displayed on the window! After countdown, the machine will run at the speed of 1.0km/h. •... -
Page 15: Maintenance
Calorie (cal) 10-999 0-999 Body fat test Under ready condition, press “PROG.” key continuously to come into FAT. Press “MODE” key, you could find F-1, F-2, F-3, F-4, F-5 (F-1-- SEG , F- 2-- AGE , F-3-- HEIGHT, F-4-- WEIGHT, F-5-- FAT displayed on the window. - Page 16 • Frequent use (more than 5 hours per week) – every 3 months • Always use silicon oil inSPORTline. The steps are as follows: 1. Please unplug power supply for the treadmill and loosen the belt (belt tension screws located at the end of the treadmill).
-
Page 17: Cleaning
4. Stop the treadmill and start to walk on it at 5km/h. Lastly fine tension both screws until it’s running smoothly with your weight on. CLEANING a) Please power off and pull the plug out before cleaning. b) Wipe out the dust stuck on the surface and running board frequently. c) Please clean the surface of frame and running belt with a soft cloth dipped with suds, don’t use things like eradicator and naphtha. - Page 18 connected reconnect it. Running belt runs Unadjusted Readjust it. faster or slower than what has been displayed Please read point “Maintenance: Running belt slips Running belt is not tight enough The adjustment steps for poly V- belt/running belt” for reference. Please read point “Maintenance: Running belt is The running belt is unadjusted...
-
Page 19: Instruction Manual For Irunning
change the PCB in turn to check! Displayed E09 on Overheat protector Stop the machine and make it to the screen be cold. If it happens when in normal temperature, then replace PCB. Displayed E10 on Overvoltage protector Check the voltage, whether it is the screen normal! Displayed E12 on... - Page 20 Start Stop Workout information Start exercise directly. During exercise, user can adjust Speed\Incline by pressing console buttons (Speed/Incline adjustment as following). After exercise, user can share workout information via Facebook or Twitter or else go back to Homepage. 3.1.1 Incline adjustment drawing: User may adjust the treadmill incline by pressing UP/DOWN key or hot keys.
- Page 21 User can select from P1 to P20 for training. After selection, set training time and press to start. During exercise, user can adjust Speed\Incline by p pressing console buttons. After exercise, user can share workout information via Facebook or Twitter or else go back to Homepage.
- Page 22 In this mode, user can choose: 55%, 65%, 75%, custom for different heart rate training. For example, user chooses 55%, system will self-calculate Heart Rate: (220-Age)*55%=103.4 BPM. After selection, double click the icon to enter to enter the program. Then set time and press to start.
- Page 23 From the Information center, user can review history workout record. 6. GYM Center – i-Route Select to plan training route. Set Start location by first long press and End location by second long press. After planning the route, press to start training. Start location End location Training page...
-
Page 24: Exercise Instructions
i-Route multiple turning points: Method: Firstly set Start and End location. Then get the first turning point by one click. You can totally set 8 turning points. System will plan the route again after your setting. 7. APP Supported Devices 7.1 Supported mobile devices: •... -
Page 25: The Cool Down Phase
Hamstring stretched Sit and outstretch your right leg. Rest the sole of your left foot against the inside of your right tight. Stretch out your right arm along your right leg as far as you can. Hold for 15 seconds and relax. Repeat all with your left leg and left arm. - Page 26 According to valid legal regulations it depends whether the Buyer is the End Customer or not. “The Buyer who is the End Customer” or simply the “End Customer” is the legal entity that does not conclude and execute the Contract in order to run or promote his own trade or business activities. “The Buyer who is not the End Customer”...
- Page 27 The Seller shall settle the Warranty Claim within 30 days after the delivery of the defective Goods, unless a longer period has been agreed upon. The day when the repaired or exchanged Goods is handed over to the Buyer is considered to be the day of the Warranty Claim settlement. When the Seller is not able to settle the Warranty Claim within the agreed period due to the specific nature of the Goods defect, he and the Buyer shall make an agreement about an alternative solution.
