Summary of Contents for Ekofires eko 5070

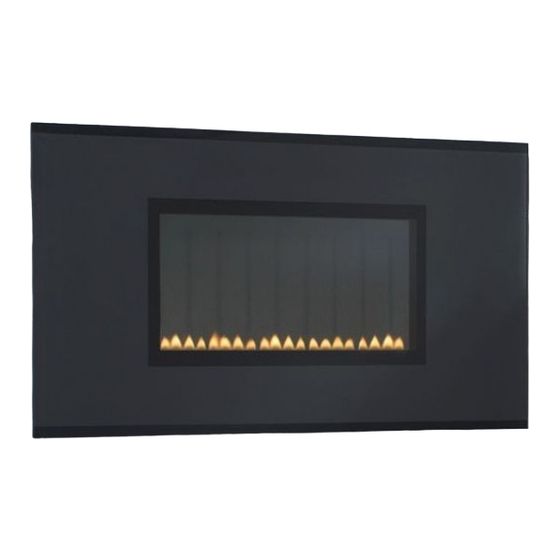

- Page 1 All instructions must be handed to user for safekeeping Revision A - 06/09 Country(s) of destination - GB/IE eko 5070 high efficiency flueless gas fire...
- Page 2 eco 5070...
-
Page 3: Installation Instructions
Tel: 01202 588 638 Fax: 01202 588 639 www.ekofires.co.uk e-mail: sales@ekofires.co.uk [1] GB - Gas Safe registered operatives (Northern Ireland only- CORGI registered operatives) are the only class of person considered as competent by the HSE under the Gas Safety (Installation and Use) Regulations 1998. -
Page 4: Table Of Contents
Section Contents Page No. Section Contents Page No. Important Notes Testing and Commisioning Appliance Data Operating the Appliance Installation Requirements Spark Failure 3.1 Room Sizing Setting pressure Site Requirements Fitting the Decorative Frame 4.1 Ventilation Briefing the customer Unpacking the Appliance 10.0 Servicing 5.1 Component Checklist... -
Page 5: Appliance Data
APPLIANCE DATA APPLIANCE DATA Natural gas models LPG models Gas Group Gas Group G20 Natural Gas CAT I2H G31 Propane CAT I3P Inlet Pressure Inlet Pressure 20 mbar (+/- 2.0mbar) 37 mbar (+/- 2.0mbar) Regulator Pressure 25 mbar Max Energy Input Gross 2.6 kW Max Energy Input... -
Page 6: Ventilation
SITE REQUIREMENTS (continued) Clearances to non-combustibles Non combustible surfaces are defined as brick, metal, marble, concrete etc. and also a number of man-made mate- rials impervious to flame. If in doubt refer to the material manufacturer for further information before proceed- ing with installation. -
Page 7: Unpacking The Appliance
VENTILATION (continued) Any ventilation fitted must comply with BS 5871 part 4 and BS 5440 part 2. Ventilation fitted under, or within immediate vicinity of the appliance must not be used as it may adversely effect performance of the ODS system. The appliance MUST NOT be installed in a bedroom, bathroom or any sleeping area. For Republic of Ireland, see relevant rules in force. -
Page 8: Fixing The Appliance
FIXING THE APPLIANCE Figure 3 Remove protective film coatings from fin- ished/decorative surfaces of the appliance. After having select- ed the final mounting position of the appliance, taking into account the requirements as specified in sections 3 and 4 of these instructions, the integrity of the wall, and WARNING... -
Page 9: Testing And Commissioning
TESTING AND COMMISSIONING Turn on and test the gas supply up to the fire for any leaks, in accordance with the current edition of BS 6891 (natural gas installations) or the current edition of BS 5482 pt1 (propane installations). For Republic of Ireland, reference should be made to the current edition of IS813 (the relevant standards governing installation). -
Page 10: Fitting The Decorative Frame
2mm gap (shown in figure 9). Simply hang the facia panel onto the outer casing (figure 8) ensuring that the corresponding keyhole shaped holes engage the screwheads fully. Figure 8 Eko 5070 Models Figure 9 © 2009 Focal Point Fires plc. -
Page 11: Briefing The Customer
BRIEFING THE CUSTOMER All instructions must be handed to the user for safekeeping. Show the customer how to light and control the fire. After commissioning the appliance, the customer should be instructed on the safe use of the appli- ance and the need for regular servicing. Frequency of service depends on usage, but MUST be carried out at least once annually. -
Page 12: Pilot Assembly
10.2 PILOT ASSEMBLY Clean the pilot assembly with a soft brush and blow through. Check the aeration holes are free of any dirt or lint. Clean thoroughly internally, the connection can be removed from the base of the pilot unit using two spanners to make cleaning easier. -
Page 13: Troubleshooting Guide
11.0 TROUBLESHOOTING GUIDE Fire sparks but pilot does not light • No gas to fire, check isolators are open and gas supply is on. • Pipework blockage, clean out. • Air not fully purged, re purge supply or wait longer. •... -
Page 14: User Instructions
USER INSTRUCTIONS Section Content Page No Important Notes Clearances to Combustibles Ventilation & Room Size Operating Instructions Combustion Monitoring System Cleaning Servicing List of Replacement Parts IMPORTANT NOTES • The installation and Servicing of this fire MUST only be carried out by a competent person in accordance with local Codes and/or Regulations, Building Regulations and the manufacturer's instructions.Failure to comply with the above could lead to prosecution and invalidate the appliance warranty. -
Page 15: Operating Instructions
CLEARANCES TO COMBUSTIBLES - continued Clearances to combustible materials Combustible materials are defined as wood, fabrics, or other materials likely to combust if exposed to flame. Generally, any material, which is likely to discolour, melt or misshape when exposed to moderate heat, should be considered as a combustible material or surface. -
Page 16: List Of Spare Parts
COMBUSTION MONITORING SYSTEM This fire is fitted with a combustion monitoring safety device (ODS). If the appliance shuts down during use for no apparent reason then several reasons may be suspected. If a door or window has been opened cre- ating a draught, then pilot disturbance could be the problem and removal of the draught should resolve this.
