Instruction Manual
installation and user instructions
All instructions must be handed to user for safekeeping
Revision A - 07/11
Country(s) of destination - GB/IE
BS EN 14829 : 2007
KM579167

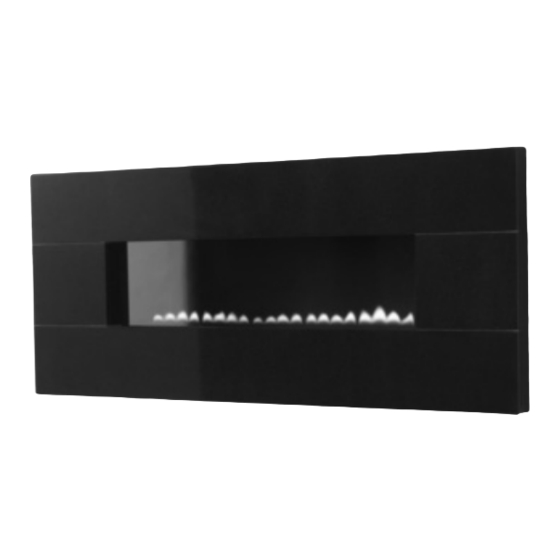

eko 5090
high efficiency flueless gas fire
IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE
Advertisement
Table of Contents
Related Manuals for Ekofires eko 5090
Summary of Contents for Ekofires eko 5090
- Page 1 All instructions must be handed to user for safekeeping Revision A - 07/11 Country(s) of destination - GB/IE BS EN 14829 : 2007 KM579167 eko 5090 high efficiency flueless gas fire IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE...
- Page 2 5090 Please note : Except where otherwise stated, all rights, including copyright in the text, images and layout of this book- let is owned by Focal Point Fires plc. You are not permitted to copy or adapt any of the content without the prior writ- ten permission of Focal Point Fires plc.
-
Page 3: Installation Instructions
Read all these instructions before commencing installation. Manufactured by : Focal Point Fires plc. Christchurch, Dorset BH23 2BT Tel: 01202 588 638 Fax: 01202 588 639 www.ekofires.co.uk e-mail: sales@ekofires.co.uk © 2011 Focal Point Fires plc. -
Page 4: Table Of Contents
Section Contents Page No. Section Contents Page No. Important Notes Testing and Commisioning Appliance Data Operating the Appliance Installation Requirements Spark Failure 3.1 Room Sizing Burner pressure Site Requirements Fitting the Decorative Frame 4.1 Ventilation Briefing the customer Unpacking the Appliance 10.0 Servicing 5.1 Component Checklist... -
Page 5: Appliance Data
APPLIANCE DATA Natural gas models Gas Group G20 Natural Gas CAT I2H Inlet Pressure 20 mbar (+/- 2.0mbar) Regulator Pressure Max Energy Input Gross 2.6 kW 2.35 kW Max Gas Rate 0.25 m3/h Min Energy Input Gross 1.5 kW 1.35 kW Pilot Energy Input Gross 166 W... -
Page 6: Ventilation
SITE REQUIREMENTS (continued) Clearances to non-combustibles Non combustible surfaces are defined as brick, metal, marble, concrete etc. and also a number of man-made mate- rials impervious to flame. If in doubt refer to the material manufacturer for further information before proceed- ing with installation. -
Page 7: Unpacking The Appliance
VENTILATION (continued) Any ventilation fitted must comply with BS 5871 part 4 and BS 5440 part 2. Ventilation fitted under, or within immediate vicinity of the appliance must not be used as it may adversely effect performance of the ODS system. The appliance MUST NOT be installed in a bedroom, bathroom or any sleeping area. For Republic of Ireland, see relevant rules in force. -
Page 8: Fixing The Appliance
FIXING THE APPLIANCE Remove any protective film coatings from the finished/decora- tive surfaces of the appliance. After having selected the final mounting position of the appliance, taking into account the requirements as specified in sections 3 and 4 of these instruc- tions, the integrity of the wall, and the feasi- WARNING... -
Page 9: Testing And Commissioning
TESTING AND COMMISSIONING Turn on and test the gas supply up to the fire for any leaks, in accordance with the current edition of BS 6891. For Republic of Ireland, reference should be made to the current edition of IS813 (the relevant standards governing installation). -
Page 10: Fitting The Decorative Frame
FITTING THE DECORATIVE FRAME ASSEMBLY Remove the glass facia panel from any protective packaging. The glass facia panel is supported by four M6 screws which protrude from the front of the outer casing. Ensure each screw is unscrewed approximately one turn from the fully screwed in position in order to cre- ate a 2mm gap (shown in figure 9). -
Page 11: Briefing The Customer
BRIEFING THE CUSTOMER All instructions must be handed to the user for safekeeping. Show the customer how to light and control the fire. After commissioning the appliance, the customer should be instructed on the safe use of the appli- ance and the need for regular servicing. Frequency of service depends on usage, but MUST be carried out at least once annually. -
Page 12: Pilot Assembly
10.2 PILOT ASSEMBLY Clean the pilot assembly with a soft brush and blow through. Check the aeration holes are free of any dirt or lint. Clean thoroughly internally, the connection can be removed from the base of the pilot unit using two spanners to make cleaning easier. -
Page 13: Troubleshooting Guide
11.0 TROUBLESHOOTING GUIDE Fire sparks but pilot does not light • No gas to fire, check isolators are open and gas supply is on. • Pipework blockage, clean out. • Air not fully purged, re purge supply or wait longer. •... -
Page 14: User Instructions
USER INSTRUCTIONS Section Content Page No Important Notes Clearances to Combustibles Ventilation & Room Size Operating Instructions Combustion Monitoring System Cleaning Servicing List of Replacement Parts IMPORTANT NOTES • The installation and Servicing of this fire MUST only be carried out by a GAS SAFE registered person in accordance with local Codes and/or Regulations, Building Regulations and the manufacturer's instruc- tions.Failure to comply with the above could lead to prosecution and invalidate the appliance warranty. -
Page 15: Operating Instructions
CLEARANCES TO COMBUSTIBLES - continued Clearances to combustible materials Combustible materials are defined as wood, fabrics, or other materials likely to combust if exposed to flame. Generally, any material, which is likely to discolour, melt or misshape when exposed to moderate heat, should be considered as a combustible material or surface. -
Page 16: List Of Spare Parts
COMBUSTION MONITORING SYSTEM This fire is fitted with a combustion monitoring safety device (ODS). If the appliance shuts down during use for no apparent reason then several reasons may be suspected. If a door or window has been opened cre- ating a draught, then pilot disturbance could be the problem and removal of the draught should resolve this.
