Summary of Contents for Ekofires Eko 3020

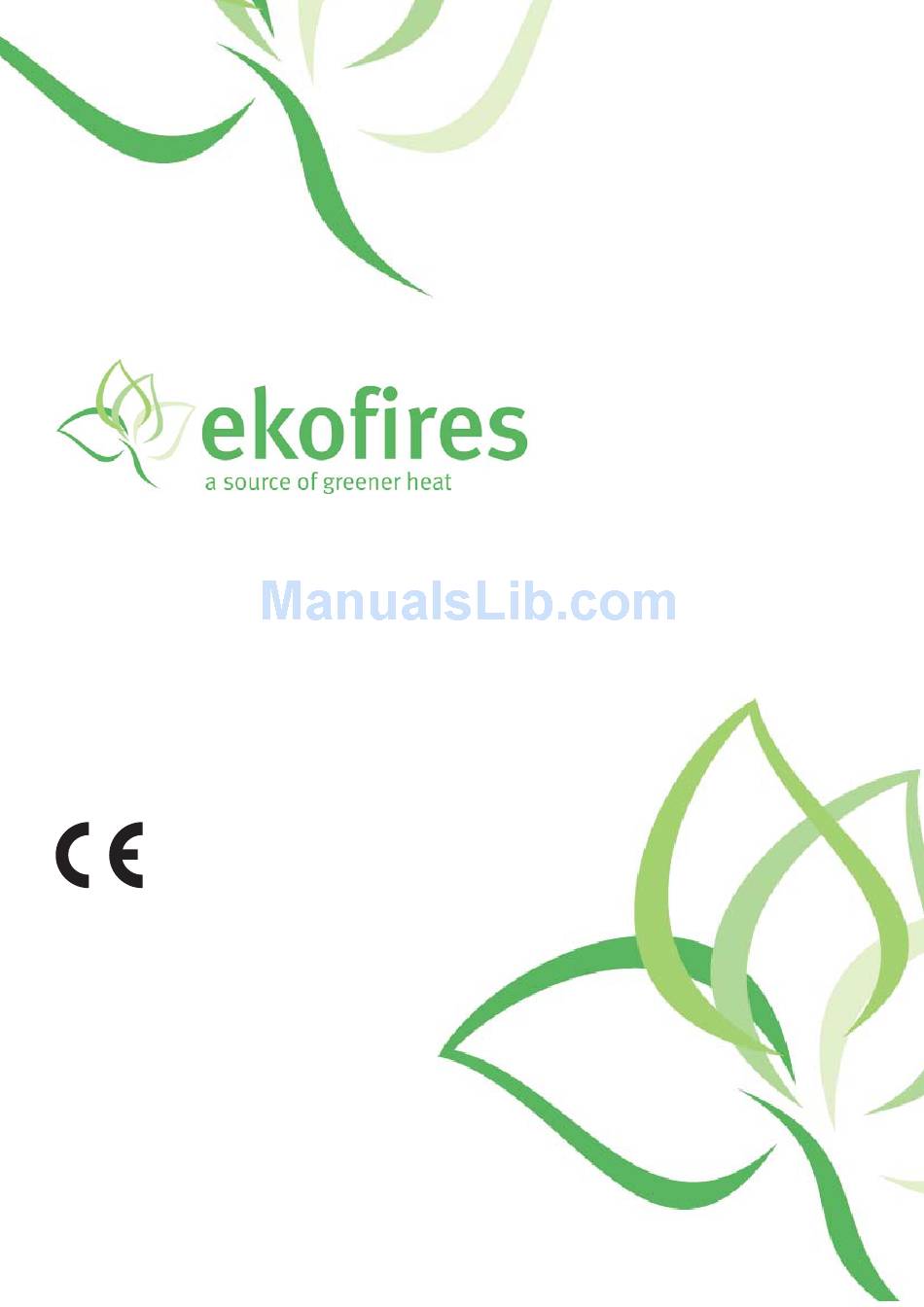

- Page 1 All instructions must be handed to user for safekeeping Revision A - 06/09 Country(s) of destination - GB/IE eko 3010 - eko 3020 fuel effect gas fire manual - remote control...
- Page 2 Eko 3010 Eko 3020 Please note : Except where otherwise stated, all rights, including copyright in the text, images and layout of this booklet is owned by Focal Point Fires plc. You are not permitted to copy or adapt any of the content without the prior written permission of Focal Point Fires plc.
-
Page 3: Installation Instructions
Tel: 01202 588 638 Fax: 01202 588 639 www.ekofires.co.uk e-mail: sales@ekofires.co.uk [1] GB - Gas Safe registered operatives (Northern Ireland only- CORGI registered operatives) are the only class of person considered as competent by the HSE under the Gas Safety (Installation and Use) Regulations 1998. -
Page 4: Table Of Contents
Page No. Section Contents Section Contents Page No. Important Notes Fitting the Burner Tray Appliance Data Gas connection Installation Requirements Fuel Bed Layout (coal effect models) Site Requirements Fuel Bed Layout (pebble effect models) Debris Collection Space 10.0 Fitting the Fireframe Ventilation 11.0 Testing and Commissioning... -
Page 5: Appliance Data
APPLIANCE DATA Manual Control Version Manual Control Version Remote Control Version Gas Group G20 Natural Gas CAT I2H G31 Propane CAT I3P G20 Natural Gas CAT I2H Inlet Pressure 20mbar (+/-2.0mbar) 37mbar (+/-2.0mbar) 20mbar (+/-2.0mbar) Max Energy Input (gross) 6.2kW 6.2kW 6.2kW Min Energy Input (gross) -
Page 6: Site Requirements
DEPTH should be 168mm (180mm - Eko 3020 models) or greater for a flue which has previously been used for a solid fuel or oil burning appli- ance. -
Page 7: Debris Collection Space
DEBRIS COLLECTION SPACE The mounting depth of this appliance is 108mm (120mm - Eko 3020 models). In accordance with BS 5871 part 2, minimum debris collection volumes are required behind the installed appliance. These are shown in the table below and as dimension X on the fireplace diagram shown previ- ously. -
Page 8: Component Checklist
Note: DO NOT install or use the appliance without this seal in place. If the hole is inadvertently opened, reseal with an intact grom- Eko 3020 met. Failure to fit this seal correctly will cause the flue suction to act upon the area under the burner resulting in poor per- formance. -
Page 9: Gas Supply Routing
PREPARING THE OPENING (continued) Cable fixing: For fixing the fire by the cable method, see relevant section. Fixing by screw: Mark and drill the fireframe or base, and relevant points in the opening or on the wall. Rawlplugs will be required. NOTE: Plastic rawlplugs are not suitable for this application. Gas supply: Following preparation for the fixing method, the concealed gas supply (if required) can now be put into place. -
Page 10: Fitting The Burner Tray
FITTING THE BURNER TRAY Temporarily fit the burner tray and ensure a suitable gas route can be achieved. Place the burner tray into the firebox making sure that the rear lugs locate properly on to the ledge in the firebox. Fit the two securing screws through the tray legs to secure the assembly. -
Page 11: Fuel Bed Layout (Pebble Effect Models)
FUEL BED LAYOUT (continued) The coals may be rotated slightly within their positions to give a good visual effect. Pay special attention to finally adjust the coals with the fire lit on the HIGH setting in order to ensure that no flames play onto the firebox sides. This will reduce the possibility of heat discolouration. -
Page 12: Testing And Commissioning
11.0 TESTING AND COMMISSIONING Turn on and test the gas supply up to the fire for any leaks, in accordance with the current edition of BS6891. 11.1 OPERATING THE APPLIANCE (manual models) The pilot is visible through the left hand side of the matrix. Rotate the coals/pebbles for good viewing. -
Page 13: Testing For Spillage
12.0 FLUE SPILLAGE MONITORING SYSTEM This fire is fitted with a flue spillage safety device (ODS). If the fire shuts down during use for no apparent reason then several things may be suspected. If a door or window has been opened creating a draught, then pilot disturbance is the problem, and removal of the draught should resolve this. -
Page 14: Servicing
14.0 SERVICING Isolate the fire from the gas supply. Ensure that the fire is fully cold before attempting service. A suggested procedure for servicing is detailed below. 1. Lay out the dust sheet and tools. 2. Carefully remove the ceramic components. 3. -
Page 15: Troubleshooting Guide
14.4 REMOVING THE FIREBOX Remove the burner tray as described previously. Protect the hearth from potential damage. Unroll the coiled tensioner cables from the rear of the firebox. Remove the securing nipples and tensioner adjusters. The firebox is now released from the opening and can be slid outward onto the hearth. -
Page 16: User Instructions
USER INSTRUCTIONS Page No. Section Contents Important Notes Firefront Clearances to Combustibles Ventilation Operating Instructions Flue Spillage Monitoring System Cleaning Coals and Ceramics Servicing 10.0 Shortlist of spares IMPORTANT NOTES The installation of this fire MUST only be carried out by a competent person in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British Standards, Codes of Practice, the Building Regulations and the manufacturers’... -
Page 17: Clearances To Combustibles
FIREFRONT This fire is supplied with a particular style of firefront. Use of the firefront will ensure an adequate airflow under the fuelbed for the correct functioning of this appliance. Compliance with safety standards cannot be guaranteed if another style of front is used. CLEARANCES TO COMBUSTIBLES A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given below. -
Page 18: Flue Spillage Monitoring System
OPERATING THE FIRE (remote control models) - continued If the pilot is extinguished during use of the fire, you MUST wait ten minutes before repeating the ignition procedure. To turn the main burner OFF whilst keeping the pilot flame lit, turn the ignition control knob to the pilot position then only the pilot will remain lit.
