installation and user instructions
All instructions must be handed to user for safekeeping
Revision C - 11/11
Country(s) of destination - GB/IE
BS EN 13278 : 2003
BS EN 509 : 2000
KM579168
eko 3021
eko 3031
eko 3081
eko 3091

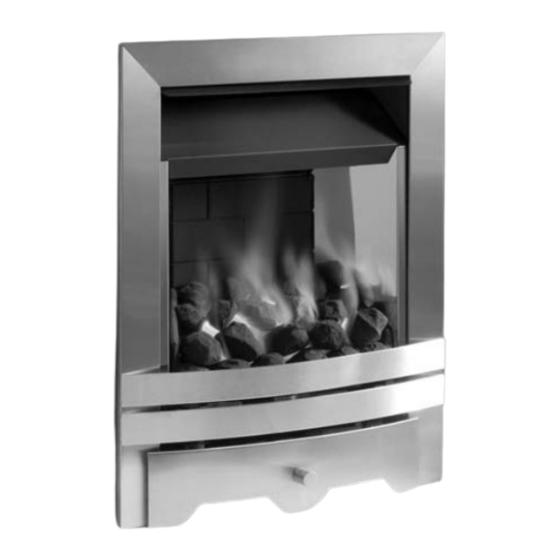

fan-flue fuel effect gas fire
IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ekofires eko 3081
Summary of Contents for Ekofires eko 3081
- Page 1 BS EN 13278 : 2003 BS EN 509 : 2000 KM579168 eko 3021 eko 3031 eko 3081 eko 3091 fan-flue fuel effect gas fire IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE...
- Page 2 Eko 3021 (Slimline) Eko 3031 (Full Depth) Eko 3081 (Full Depth) Eko 3091 (Full Depth) Manufactured by : Focal Point Fires plc. Christchurch, Dorset BH23 2BT Tel: 01202 588 638 Fax: 01202 588 639 www.ekofires.co.uk e-mail: sales@ekofires.co.uk Please note : Except where otherwise stated, all rights, including copyright in the text, images and layout of this booklet is owned by Focal Point Fires plc. You are not permitted to copy or adapt any of the content without the prior written permission of Focal Point Fires plc.
-
Page 3: Table Of Contents
GB IE I N S T A L L A T I O N I N S T R U C T I O N S Section Contents Page No. Section Contents Page No. Fitting Fan Terminal Important Notes Appliance Data Gas Connection Installation Requirements 8.10... -
Page 4: Appliance Data
GB IE 2.0 APPLIANCE DATA Destination Inlet/Operating Model Max Energy Input (kW) Min Energy Input (kW) Country Pressure (±2.0 mbar) Natural gas Gross Gross I 2H Full Depth 3.15 GB - IE I 2H Slimline GB - IE 3.15 Specifications Full Depth Models Slimline Models Main burner injector... -
Page 5: Terminal Location
GB IE 4.0 TERMINAL LOCATION Figure 2 Note : A suitable metal protector may be required where tem- perature sensitive building components e.g. plastic pipes are concerned Minimum clearances are as follows; Symbol Location Dimension A a) Directly below an opening, air brick, opening windows etc. 300mm B a) Above an opening, air brick, opening window etc. -
Page 6: Site Requirements
GB IE 5.0 SITE REQUIREMENTS For aesthetic purposes it is essential that the hearth and infill plinth area are flat and level. The hearth and infill must also be square to the back panel. Failure to comply with this could cause the appliance to lean away from the fireplace resulting in an unsatis- factory installation. -
Page 7: Component Checklist
GB IE 7.1 COMPONENT CHECKLIST QUANTITY DESCRIPTION Firebox and burner tray assembly Decorative front and frame assembly (depending on model) Moulded ceramic fibre combustion matrix Front ceramic strip (full depth versions only) Bag of 16 moulded ceramic coals or pebbles (full depth models only) Bag of 11 moulded coals (Slimline coal models only) Bag of 15 moulded pebbles (Slimline pebble models only) Set of manufacturers instructions... -
Page 8: Gas Supply Routes
GB IE 8.2 GAS SUPPLY ROUTES The gas supply may enter the appliance across the hearth or through the ‘knock outs’ provided in the rear of the firebox. Gas pipes should not be buried or routed through walls without being protected by conduit or sleeving. An isolation tap must be included in the gas connection pipe to facilitate servicing. - Page 9 GB IE 8.4 INSTALLATION METHOD 2 Figure 9 Opening width Outer cavity leaf Superlux Overall width board Fireplace Overall height (excluding hearth) backpanel Opening height: (excluding hearth): Lintel Recessed depth of fire Inner cavity Model Full depth leaf Slimline models Dim.
-
Page 10: Installation Method
GB IE 8.5 INSTALLATION METHOD 3 Figure 11 Opening width Overall width Overall height (excluding hearth) Fireplace Superlux backpanel Opening height: (excluding hearth): board Recessed depth of fire Model Full depth Slimline models Dim. models A Min. 375mm 380mm A Max. 460mm 450mm 480mm... -
Page 11: Flue Preparation
GB IE 8.6 FLUE PREPARATION When all the preparation work has been completed for whichever method of installation has been chosen, and with the fire sur- round fitted, take the appliance and slide the round flue section over the spigot on the rear of the fire. Protect any decorative hearth with a dust sheet or similar, place the appliance in position with the flue section protruding through the wall(s) to the out- side. -
Page 12: Gas Connection
GB IE 8.9 GAS CONNECTION Note : A separate isolation device must be incorporated into the incoming gas supply to facilitate servicing. Temporarily fit the burner tray and ensure a suitable gas route can be achieved. If using an across hearth connection, ensure the decorative fireframe and firefront will clear the supply route. -
Page 13: Operating The Appliance
GB IE 11.0 OPERATING THE APPLIANCE Turn on the power supply and momentarily press the ON switch on the control box locat- ed to the right of the control knob. The fan should operate with the warning light illuminat- ed. Almost immediately the fan will slow down to operating speed and a click may be heard as the safety solenoid opens allowing gas to the burner unit. -
Page 14: Briefing The Customer
GB IE 14.0 BRIEFING THE CUSTOMER After commissioning the appliance, the customer should be instructed on the safe use of the appliance and the need for regular servicing. Frequency of service depends on usage, but MUST be carried out by a GAS SAFE engineer at least once annually. Advise that except for cast iron parts (3081 and 3091models) cleaning of the fire may be achieved when the fire is cold using a damp cloth and mild detergent on most surfaces. -
Page 15: Checking The Fan Assembly
GB IE 15.3 FAN ASSEMBLY Disconnect the electrical supply, and remove the fan terminal cover. Check all components for signs of deterioration paying attention to the wiring, and ensuring all electrical connec- Figure 23 tions are good. Remove the terminal from the wall and check the flue tube is in the correct position. Check the flue is free from obstruction along its entire length. -
Page 16: Control Box Removal
GB IE 15.4 REMOVAL OF THE CONTROL BOX Disconnect the electrical supply and isolate the gas supply. Remove the burner tray as previously described in the relevant sec- tion. Remove the two securing screws and lift away the control box heatshield. Slide the control box to the left off its mounting bracket, and remove the multiway connector from the rear. - Page 17 GB IE 15.4 TROUBLESHOOTING GUIDE - CONTINUED Fault/Problem Cause/Remedy Fan runs but pilot flame will not hold when control knob is Loose thermocouple connection in rear of gas valve. released. Check pilot flame is contacting tip of thermocouple correctly. Check gas is turned ON and all pipes are purged of air. Check for spark between pilot body and electrode.
- Page 18 GB IE U S E R I N S T R U C T I O N S Section Content Page No Important Notes Clearances to Combustibles Ventilation Operating Instructions Flue Spillage Monitoring System Fuel Bed Layout - Full Depth Models Fuel Bed Layout - Slimline Models Cleaning List of Replacement Parts...
- Page 19 GB IE 3.0 VENTILATION No purpose provided ventilation is normally required for this appliance. The requirements of other appliances operating in the same space or room, and the results of a spillage test must be taken into consideration when assessing ventilation requirements, this will have been carried out by your registered installer.
- Page 20 GB IE 6.0 FUEL BED LAYOUT - FULL DEPTH MODELS CONTINUED Figure 4 2. Position the front coal strip as shown in figure 4. The rear edge of the front coal strip should fit in front of the burner rail. Again, do not to place on top of the burner rails.
- Page 21 GB IE 6.0 FUEL BED LAYOUT - FULL DEPTH MODELS CONTINUED Figure 10 Full depth pebble effect models 1. Refer back to page 2 section 6.0 of these user instructions - Fuel bed layout (coal effect option) and follow steps 1 and 2. The front strip and fuel effect matrix used for pebble effect versions are of the same design as coal effect versions, but have a different surface finish.
- Page 22 GB IE 6.1 FUEL BED LAYOUT - SLIMLINE MODELS Slimline coal effect models Figure 15 This fire is supplied with 11 ceramic coals. The coals may vary slightly in size, shape, in order to allow a realistic layout. 1. Firstly place the brick panel against the rear of the firebox as shown in figure 15.
- Page 23 GB IE 6.1 FUEL BED LAYOUT - SLIMLINE MODELS CONTINUED This fire is supplied with 15 ceramic pebbles. The pebbles may vary slightly in size, shape and colour, in order to allow a realistic layout. Figure 20 1. Place the brick panel against the rear of the firebox as shown in fig- ure 20.
- Page 24 GB IE 7.0 CLEANING Before carrying out any of the following operations, ensure that the fire is OFF and completely cold. FIREFRAME -The appliance is supplied with a decorative frame in a variety of finishes. A wipe with a dry cloth is normally suffi- cient, but on stains it is permissible to use a damp cloth with a mild household cleaner, followed by a wipe with a dry cloth.
- Page 25 GB IE 9.0 INSTALLATION DETAILS Name & contact details of installer : Supplied by : Installer GAS SAFE registration No : Model : Fire serial No. : Date installed : 10.0 SERVICE HISTORY Date of service Serviced by (name): GAS SAFE No. : Contact details of Engineer Waste electrical products should not be disposed of with household waste.
