Step 10. A screen similar to Figure 2-35 will display allowing verification of the settings.

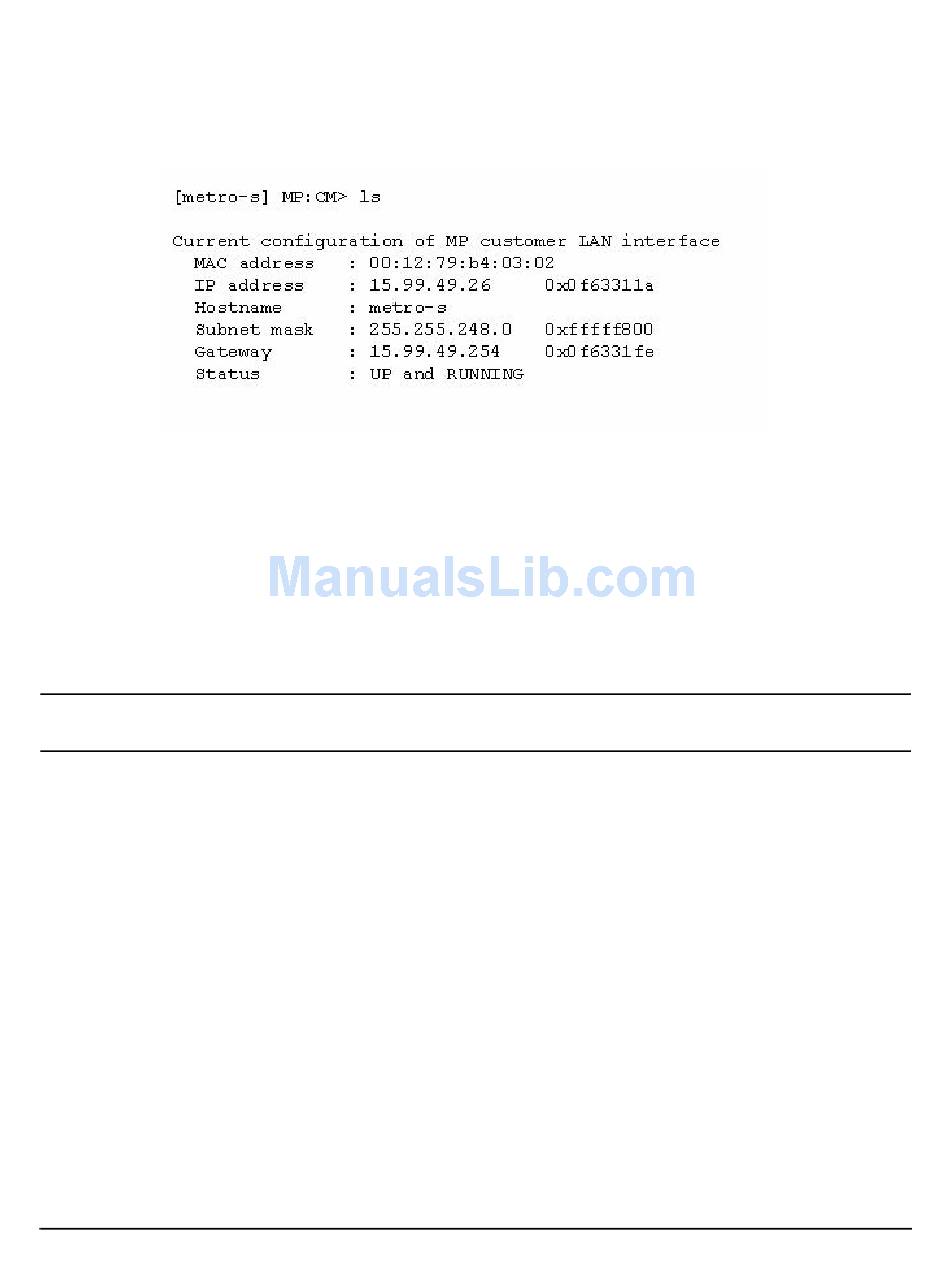

Figure 2-35The ls Command Screen

To return to the MP Main menu, enter ma.
To exit the MP, enter x at the MP Main Menu.

Accessing the Management Processor via a Web Browser

Web browser access is an embedded feature of the management processor (MP). The Web browser enables
access to the server via the LAN port on the core I/O card. MP configuration must be done from an ASCII
console.
NOTE The MP has a separate LAN port from the system LAN port. It requires a separate LAN drop,
IP address, and networking information from that of the port used by HP-UX.
Before starting this procedure, gather the following information:
• IP address for the MP LAN
• Subnet mask
• Gateway address
• Host name (this is used when messages are logged or printed)
To configure the LAN port for a Web browser, perform the following steps:
Step 1. Connect to the MP using a serial connection.
Step 2. Configure the MP LAN. Refer to "Configuring LAN Information for the MP".
Step 3. Type CM to enter the Command Menu.
