System Backplane

The system backplane board contains the following components:
Two crossbar chips (XBC)
Clock generation logic
Preset generation logic
Power regulators
Two local bus adapter (LBA) chips that create internal PCI buses for communicating with the core I/O
card.
The backplane also contains connectors for attaching the cell boards, PCI-X backplane, MP core I/O cards
SCSI cables, bulk power, chassis fans, front panel display, intrusion switches, and external system bus
adapters (SBA) link connectors.

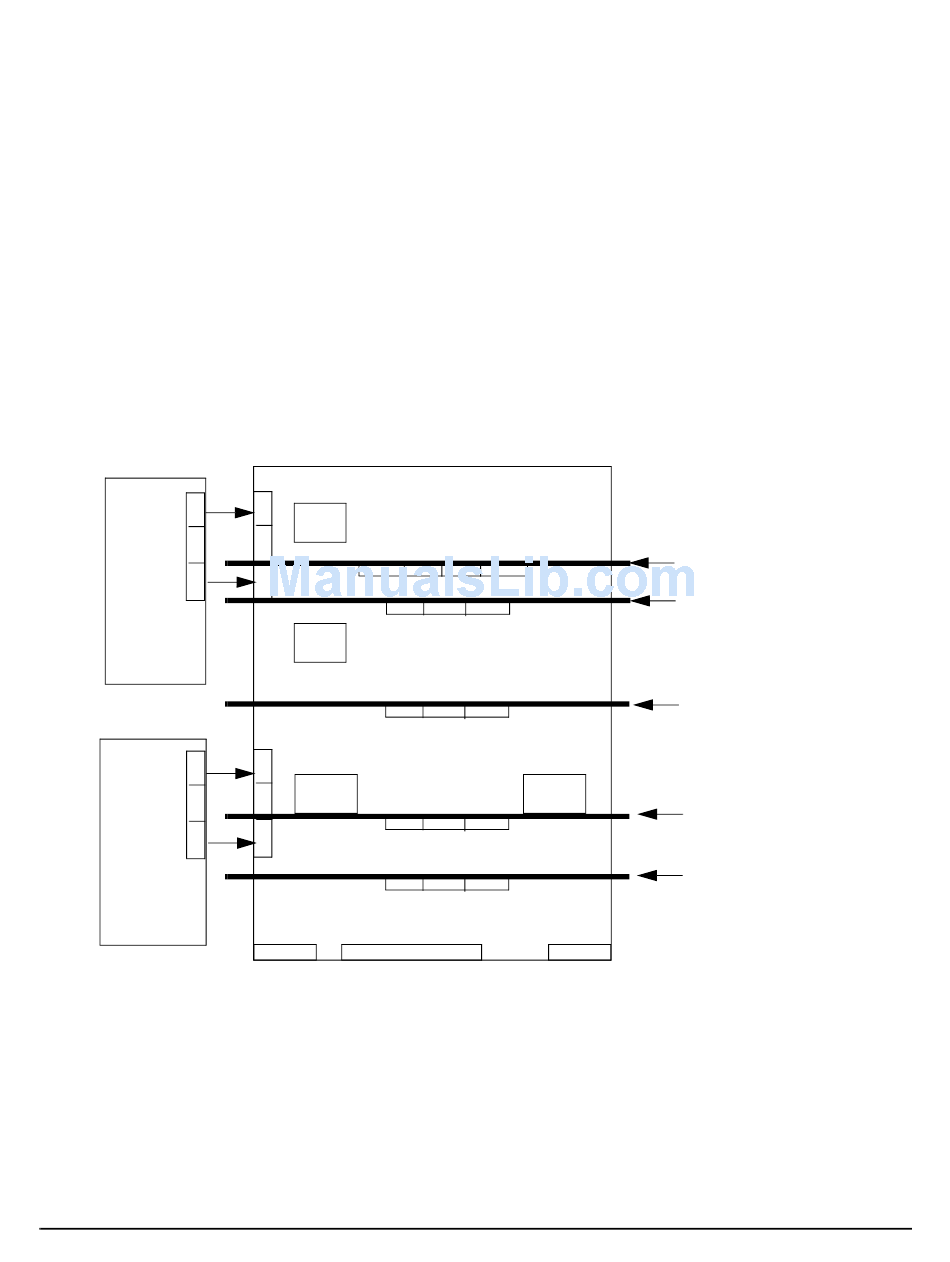

Figure 1-11
System Backplane Block Diagram
Core I/O 0
Core I/O 1
Chapter 1
System Backplane
LBA
LBA
XBC
HP Integrity rx8640 and HP 9000 rp8440 Server Overview
PCI-X Backplane
Cell 0
Cell 1
Cell boards are perpendicular
to the system backplane.
XBC
Cell 2
Cell 3
Detailed Server Description
31
