Figure 2-12Securing Each Caster Cover To The Server - HP Integrity rx8640 Installation Manual

Installing the System
Installing the Wheel Kit
Step 16. Insert the slot on the caster cover into the front caster (Figure 2-12). Secure the caster cover to the
server by tightening the captive screw on the cover at the rear of the server. Repeat for the second
caster cover.

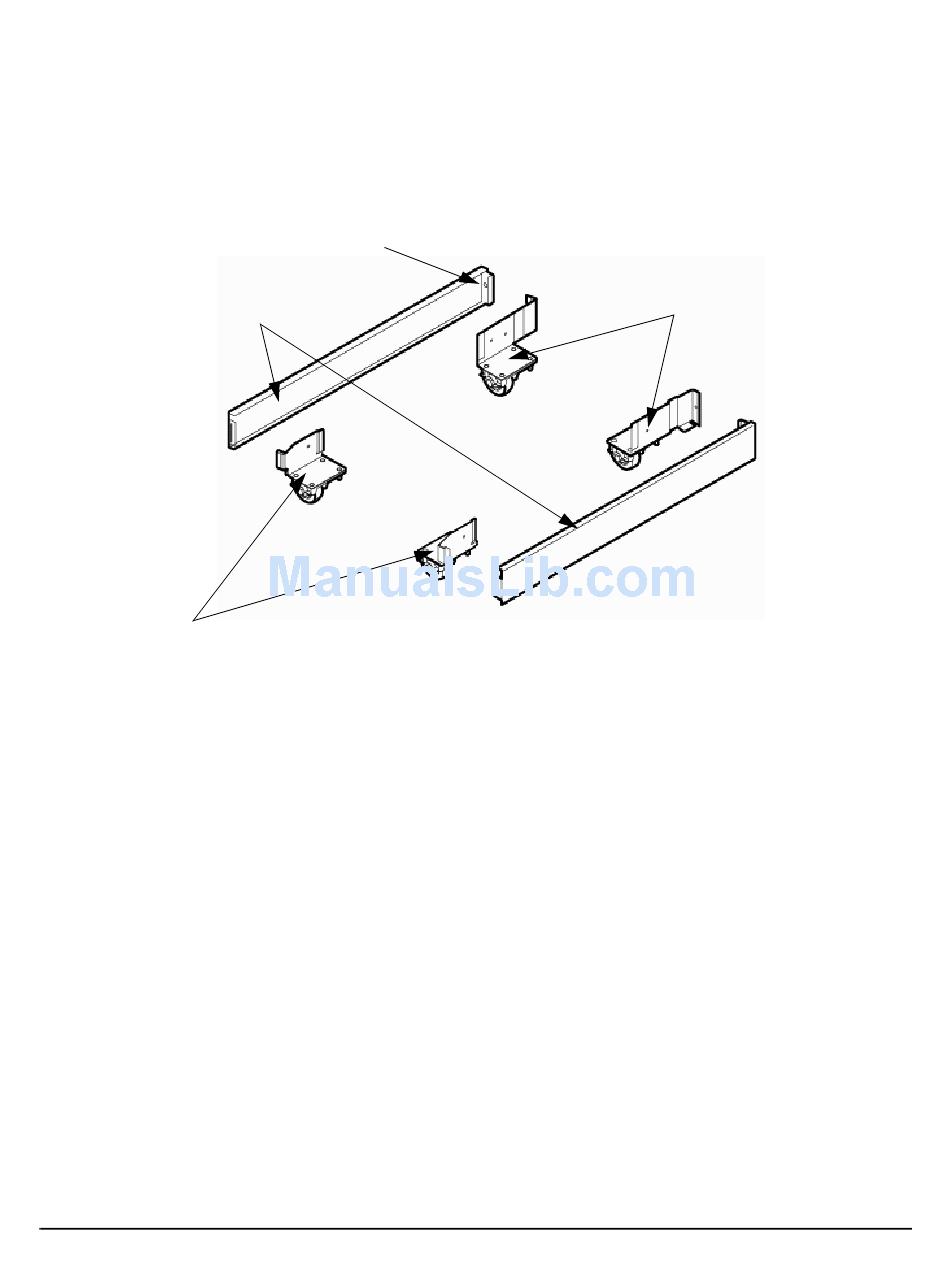

Figure 2-12Securing Each Caster Cover to the Server

Caster Covers
Front Casters
54
Captive Screw
Rear Casters
