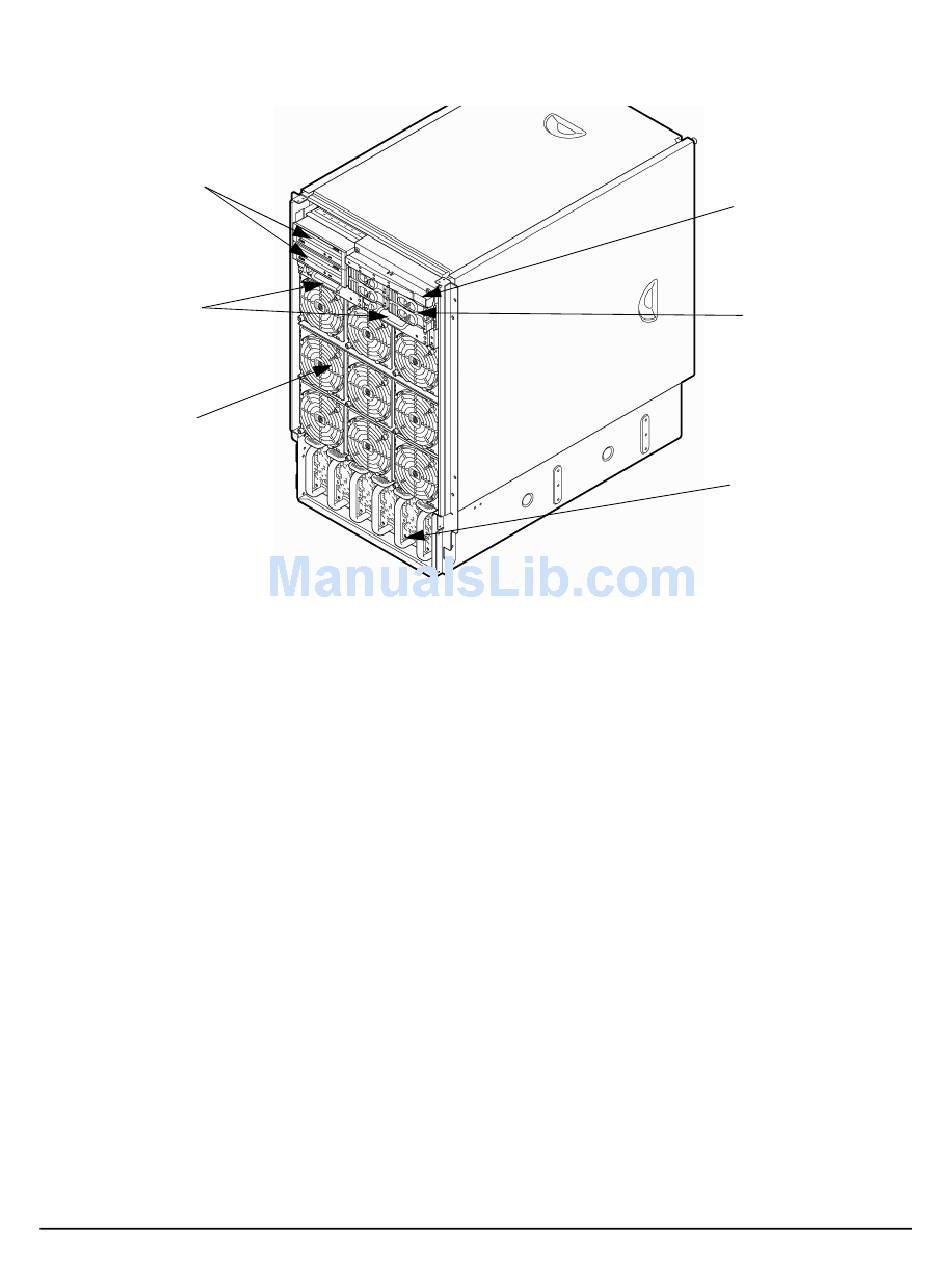

Figure 1-3 Server (Front View Without Bezel)
Removable Media
Drives
PCI Power
Supplies
Front OLR
Fans
The server has the following dimensions:
• Depth: Defined by cable management constraints to fit into a standard 36-inch deep rack:
25.5 inches from front rack column to PCI connector surface
26.7 inches from front rack column to core I/O card connector surface
30 inches overall package dimension, including 2.7 inches protruding in front of the front rack columns
• Width: 17.5 inches, constrained by EIA standard 19-inch racks
• Height: 17 U (29.55 inches), constrained by package density
The mass storage section located in the front enables access to removable media drives without removal of the
bezel. The mass storage bay accommodates two 5.25-inch removable media drives and up to four 3.5-inch
hard disk drives. The front panel display, containing LEDs and the system power switch, is located directly
above the hard drive media bays.
Below the mass storage section and behind a removable bezel are two PCI-X power supplies. Each PCI-X
power supply powers both I/O partitions. Two PCI-X power supplies offer a N+1 configuration.
Enclosed with protective finger guards are nine front online replace (OLR) fan modules.
The bulk power supply is partitioned by a sealed metallic enclosure located in the bottom of the server. This
enclosure houses the N+1 fully redundant bulk power supplies. Install these power supplies from the front of
the server after removing the front bezel. The power supply is 2.45 X 5.625 X 20.0 inches.
Chapter 1
HP Integrity rx8640 and HP 9000 rp8440 Server Overview
Detailed Server Description
Power
Switch
Hard Disk
Drives
Bulk Power
Supplies
