11 Site Map

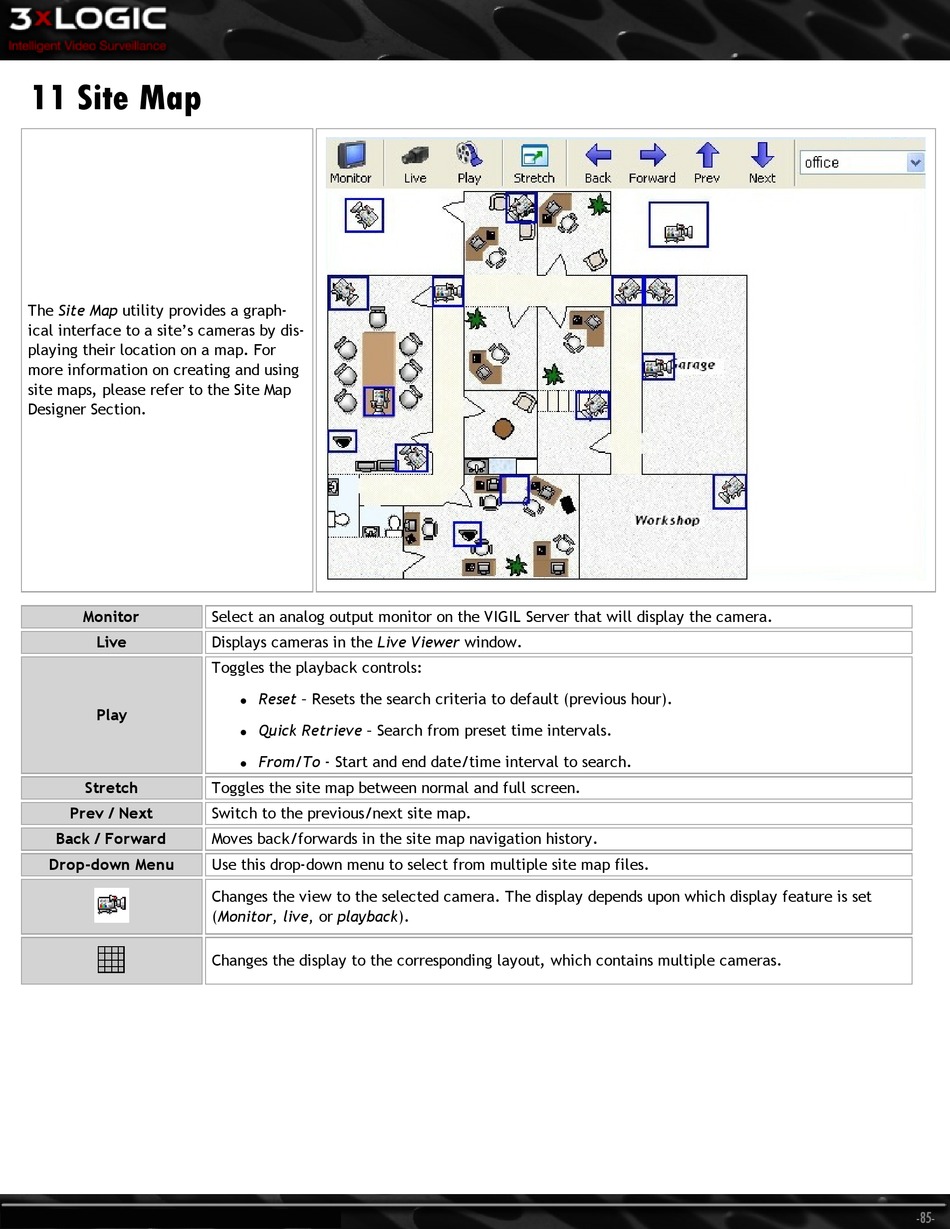

The Site Map utility provides a graph-
ical interface to a site's cameras by dis-
playing their location on a map. For
more information on creating and using
site maps, please refer to the Site Map
Designer Section.
Monitor
Live
Play
Stretch
Prev / Next
Back / Forward
Drop-down Menu
©2014 3xLOGIC Inc. | VIGIL Client - User Guide
Select an analog output monitor on the VIGIL Server that will display the camera.
Displays cameras in the Live Viewer window.
Toggles the playback controls:
Reset – Resets the search criteria to default (previous hour).
l
Quick Retrieve – Search from preset time intervals.
l
From/To - Start and end date/time interval to search.
l
Toggles the site map between normal and full screen.
Switch to the previous/next site map.
Moves back/forwards in the site map navigation history.
Use this drop-down menu to select from multiple site map files.
Changes the view to the selected camera. The display depends upon which display feature is set
(Monitor, live, or playback).
Changes the display to the corresponding layout, which contains multiple cameras.
