12.3.1. Models with flat burrs

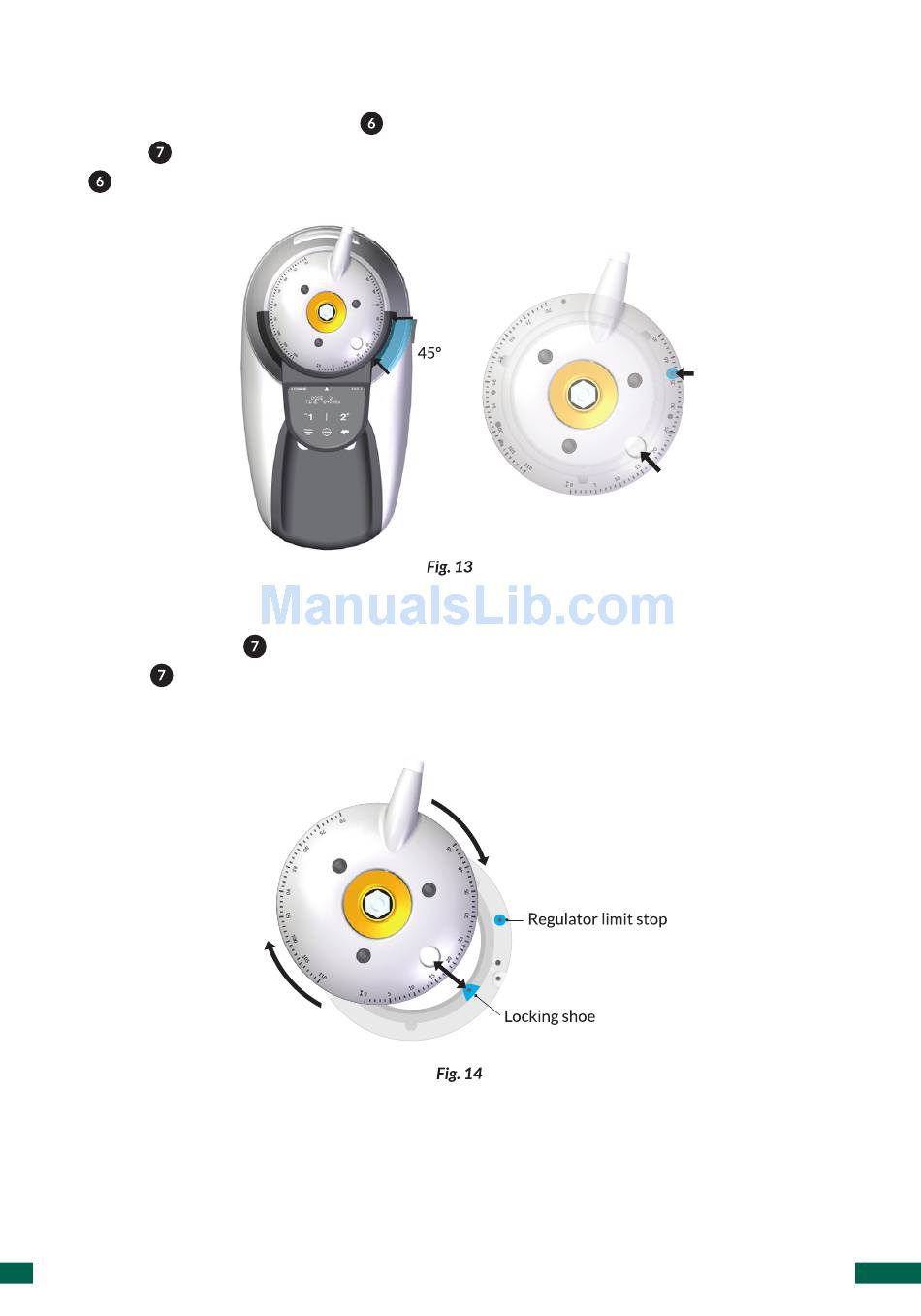

Position the regulator collar (
) leaving about 45º between the grind point lock
) and regulator limit stop (Fig. 13). In that position, tighten the regulator
screw (
) on the upper burr carrier and with a T20 Torx screwdriver, as Fig. 10.
(
For the models with the micrometric Parallel system, first make sure that the grind
point lock screw (
) is lined up with the locking foot. This will ensure that the lock
screw (
) and locking shoe move in conjunction with one another, and that the
locking mechanism works properly (Fig. 11).
25
K06307 | v. 22/07/2015 | Ref. quality process 002/03 | ORIGINAL INSTRUCTIONS
