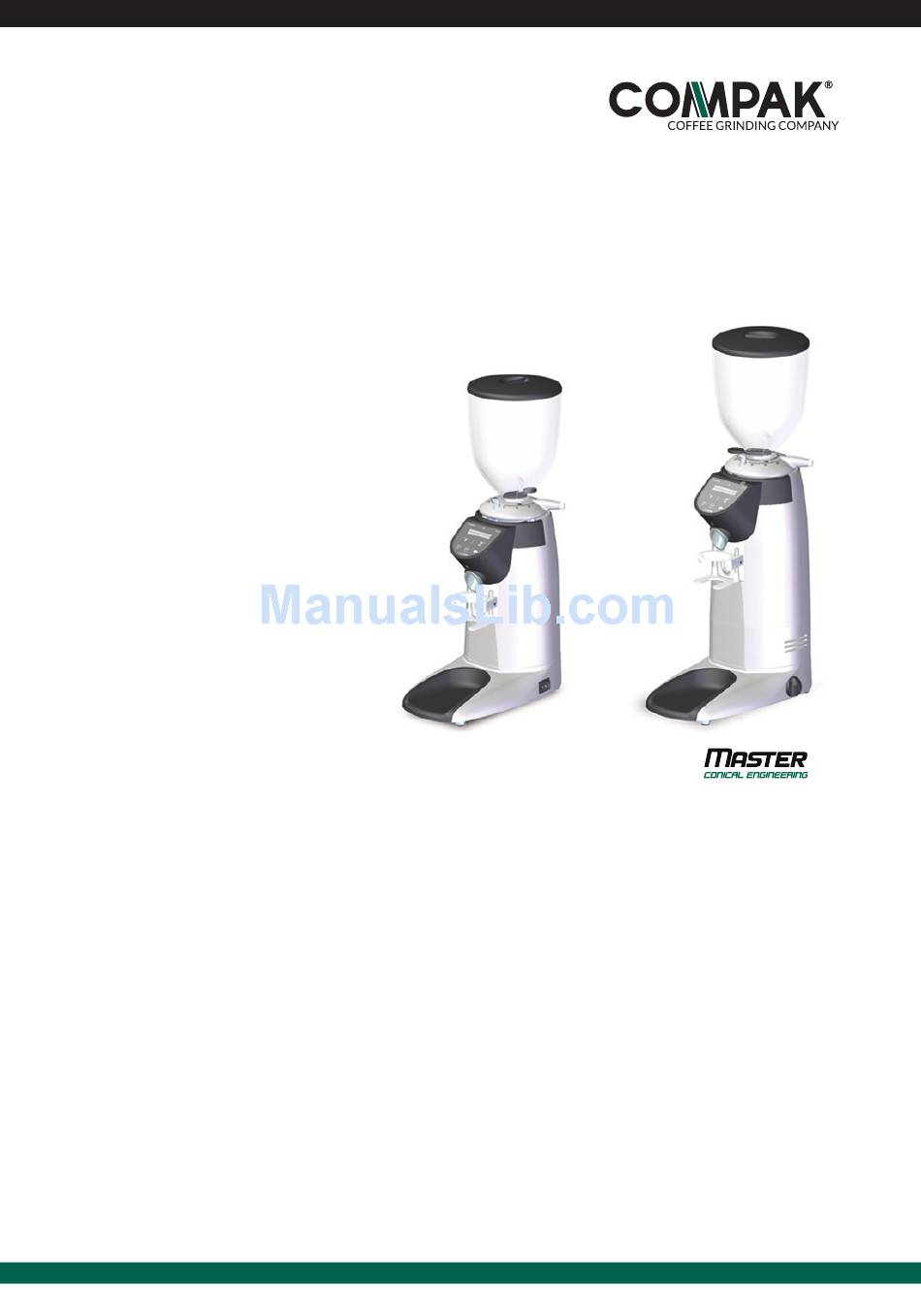

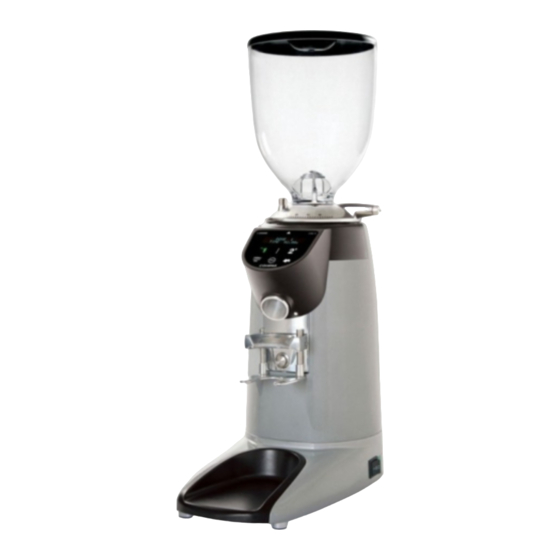

- Page 1 ESSENTIAL ON DEMAND E6 OD E8 OD E10 CONIC OD E10 MASTER CONIC OD...
-
Page 2: Table Of Contents
index 1. SAFETY MEASURES 2. DESCRIPTION 3. INSTRUCTIONS 4. IDENTIFICATION 5. TECHNICAL CHARACTERISTICS 6. EXTERNAL COMPONENTS 7. INSTALLATION 8. REGULATION 9. OPERATION 10. CONFIGURATION 11. CLEANING 12. MAINTENANCE 13. EC CONFORMITY... -
Page 3: Safety Measures
1. SAFETY MEASURES NOTE: The manufacturer will not be held responsible for any damages resulting from improper use of the equipment, or for not following the safety measures as outlined below. Safety measures incorporated into our grinders: • Special screw to maintain the hopper fixed in place. • Access restrictor in the grind group. Owners: Please pay careful attention with the following instructions: • The grinder should be used exclusively for the function for which it was designed: grinding whole bean coffee. -
Page 4: Description
SOUND DECIBEL LEVEL The level of sound emitted in different models is: Sound decibel level With coffee E6 OD 65 dB E8 OD 70 dB E10 CONIC OD 68 dB E10 MASTER CONIC OD 68 dB 2. DESCRIPTION Your new grinder has been designed using the most sophisticated technologies in existence. -
Page 5: Instructions
3. INSTRUCTIONS 3.1. This manual is designed to provide the necessary information to correctly install, use and maintain the grinder, as well as to highlight precautions for users to keep in mind. To ensure the best operation of the coffee grinder, please follow the instructions as outlined in this manual. -
Page 6: Technical Characteristics
5.2. Technical data 100 V 100 V 110 V 220 V 230 V 240 V Model 50 Hz 60 Hz 60 Hz 60 Hz 50 Hz 50 Hz Electrical power E6 OD Spin speed 1,250 1,540 1,600 1,600 1,325 1,330 Electrical power E8 OD Spin speed 1,250 1,540 1,600 1,600 1,325 1,330... - Page 7 Model E10 CONIC E10 MASTER E6 OD E8 OD CONIC OD 2.65 2.65 Ø Burrs Conic 68 Conic 68 25.90 34.22 28.87 33.59 lb/h Production 50Hz* 11,77 15,55 13,12 15,27 Kg/h 28.87 38.23 33.00 39.04 lb/h Production 60Hz* Kg/h 13,12 17,37...
-
Page 8: External Components
6. EXTERNAL COMPONENTS ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 22/09/2014 | K06307... -
Page 9: Installation
7. INSTALLATION 7.1. General Warnings The person installing the grinder should carefully read this instruction manual before installation. The installation of this machine should be completed by qualified and authorized personnel, and all norms of safety and sanitation should be followed. 7.2. Important Warnings The operator of the grinder should be a responsible adult, and a never a minor or person incapable of safely using such equipment. - Page 10 7.3. Where to Use The grinder should be installed on a flat, stable surface. The minimum dimensions of the work space should be as follows: Model E6 OD, E8 OD, E10 CONIC OD E10 MASTER CONIC OD 25.78 28.93 Height 9.25 9.25 Width 16.53...
-
Page 11: Regulation
8. REGULATION 8.1. Adjusting the lower portafilter support In order to ensure the proper distribution of ground coffee in the portafilter, while supporting the portafilter in a hands-free position during dosing, it is possible to adjust the height of the lower portafilter support ( To do this adjustment operation: Loosen the screw ( ) on the lower support ( ) by using the Allen Key included with your grinder. - Page 12 ) AUTOMATIC–OFF–MANUAL Plug in the grinder, and place the main power switch ( / I-OFF-II to position AUTOMATIC / I and open the bean trap ( ) to allow coffee to pass into the grind chamber. 8.3. Grind adjustment system 8.3.1. Parallel micrometrical system Rotate the grind regulator ( ) until reaching the grind level desired.
- Page 13 It is recommended that the motor be running when adjusting to finer grind setting. This helps to avoid jamming the burrs, which can occur when coffee beans are in the grind chamber, and the grind regulator is adjusted towards fine. 8.3.2. Stepped grind adjustment (optional) In the stepped adjustment versions, the positions on the grind regulator are limited by “steps” that are defined by the hole and pin points (Fig. 6). The instructions detailed in section 8.3.1. on adjusting the regulator should be followed, while at the same time, pulling the brake post ( ) (Fig.
-
Page 14: Operation
(Fig. 7.1.) and AUTOMATIC-OFF-MANUAL for E8 ESSENTIAL ON DEMAND CONIC ESSENTIAL ON DEMAND E10 MASTER CONIC ESSENTIAL ON DEMAND (Fig. 7.2.). E10 CONIC OD, E6 OD, E10 MASTER E8 OD CONIC OD AUTOMATIC Electrical functions Manual mode. Security sistem that allows... - Page 15 9.3. Automatic Mode Selection of doses by lower pulse button ( ) (2 doses / 3 doses version): • 1 ACTIVATION OF LOWER PULSE BUTTON ( ) -> 1 DOSE • 2 ACTIVATIONS OF LOWER PULSE BUTTON ( ) -> 2 DOSES • 3 ACTIVATIONS OF LOWER PULSE BUTTON ( ) ->...
-
Page 16: Configuration
9.5. Tamper 9.5.1. Fixed Tamper (Optional) Position the portafilter below the tamper ( ) and push up to tamp the ground coffee (Fig. 8). 10. CONFIGURATION 10.1. Display Icon Guide Access to menu. Value or selection aproval. Return. Up shift in menu. Decrease value. Down shift in menu. Increase value. 10.2. Grind Time Configurations The grind times can be configured for the Automatic and Preselect modes. When modifying the grind time for either mode, the time will be reflected in both modes simultaneously. - Page 17 Automatically the icon of the desired dose icon and the icon will change to active color and the four time numbers will then begin to flash. There are two ways to modify the time: • Press the icons on the LCD screen and the time will increase, and press the icon to decrease the time.
- Page 18 ENGLISH ENGLISH ACTIVE SPANISH ESPAÑOL ACTIVO FRENCH FRANÇAIS ACTIVE LANGUAGE SET UP GERMANY DEUTSCHE AKTIV ITALIAN ITALIANO ATTIVO PORTUGUESE PORTUGUESE ACTIVA ABSOLUTE COFFEE COUNTER NUMBER OF SINGLE SERVINGS VIEW USAGE DATA RELATIVE COFFEE COUNTER ALARM 00000 Kg BURR WARE DATA GROUND 000000 Kg AUTOMATIC MODE OPERATING MODE (WORKING MODE SETTINGS) PRESELECT MODE...
- Page 19 N. COFFEE DOSES 1 dd/mm/aa 0000000 N. COFFEE DOSES 2 dd/mm/aa 0000000 N. COFFEE DOSES 3* dd/mm/aa 0000000 N. COFFEE DOSES 1 dd/mm/aa 0000000 N. COFFEE DOSES 2 dd/mm/aa 0000000 N. COFFEE DOSES 3* dd/mm/aa 0000000 AUTOMATIC MODE ON PRESELECT MODE ON PASSWORD PROTECTION ON PASSWORD PROTECTION OFF (ENTER) NEW PASSWORD 0000...
-
Page 20: Cleaning
11. CLEANING 11.1. General cleaning To ensure that the grinder functions properly, and produces the highest quality grind possible, the parts that come into contact with coffee should cleaned periodically. General Cleaning guidelines as follows: • Always turn the main power switch to the off position ( • Unplug the machine from the power source. - Page 21 11.4. Cleaning the grind chamber It is recommended that the grind chamber be cleaned monthly with a cleaner as recommended by Compak. This process will eliminate smelly residues from the coffee remains, which can negatively affect the quality of the brewed coffee. The steps to follow are:...
-
Page 22: Maintenance
We do not recommend the taking apart of the grind assembly unless changing burrs, or removing a blockage/obstruction in the grind chamber. Removal of the grind assembly should be performed by a qualified service technician. 11.5. Cleaning the outside of the grinder To clean the exterior of the grinder, first wipe with a dry soft cloth, and then gently wipe with a damp soapy cloth. 11.6. Cleaning the touch screen Proper cleaning should be done with a soft, damp microfiber towel. Preferably distilled water or other cleaning product specifically designed for touch screen cleaning. - Page 23 NOTE: Based on extensive experience and a medium-hard coffee blend, we recommend replacing the burrs following the quantities in next table: Steel Red Speed Lucidate E6 OD 400 Kg E8 OD 800 Kg 5,000 Kg E10 CONIC OD 1,200 Kg 8,000 Kg...
- Page 24 For the models with micrometric Parallel system, before removing the grinding adjustment collar ( ), rotate the grind point lock screw ( ) counterclockwise to release it from a locked position (Fig. 11). Rotate the grind regulator clockwise until it is completely unscrewed. Clean the grind chamber and threads of the housing using a soft cloth and vacuum cleaner until all of the oils and residue has been removed.
- Page 25 12.3.1. Modelos with flat burrs Position the regulator collar ( ) leaving about 45º between the grind point lock ) and regulator limit stop (Fig. 13). In that position, tighten the regulator screw ( ) on the upper burr carrier and with a T20 Torx screwdriver, as Fig. 10. For the models with the micrometric Parallel system, first make sure that the grind point lock screw ( ) is lined up with the locking foot.
- Page 26 12.3.2. Models with conical burrs Position the regulator collar ( ) leaving about 90º between the grind point lock screw ( ) and regulator limit stop (Fig. 14). In that position, tighten the regulator ) on the upper burr carrier and with a T20 Torx screwdriver, as Fig. 10. For the models with the micrometric Parallel system, first make sure that the grind point lock screw ( ) is lined up with the locking foot.
-
Page 27: Ec Conformity
The Legal Representative Jesús Ascaso Compak Coffee Grinders, s.a. Molí Barri, Parcela B - Pol. Ind. Can Barri - 08415 Bigues i Riells - Barcelona - Spain Ph. 34 93 703 13 00 - Fax 34 93 703 13 23 - www.compak.es...
