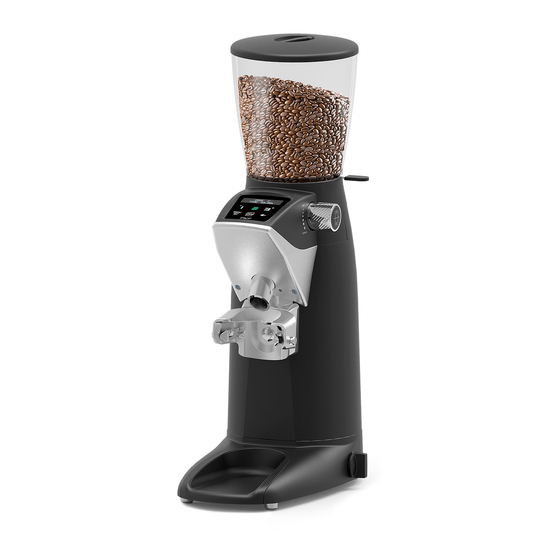

Compak PKF Instruction Manual

Hide thumbs Also See for PKF:
Table of Contents

Advertisement

Quick Links

MANUAL
COFFEE GRINDER
PKF
FRESH ON DEMAND

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PKF and is the answer not in the manual?

Questions and answers

Related Manuals for Compak PKF

Summary of Contents for Compak PKF

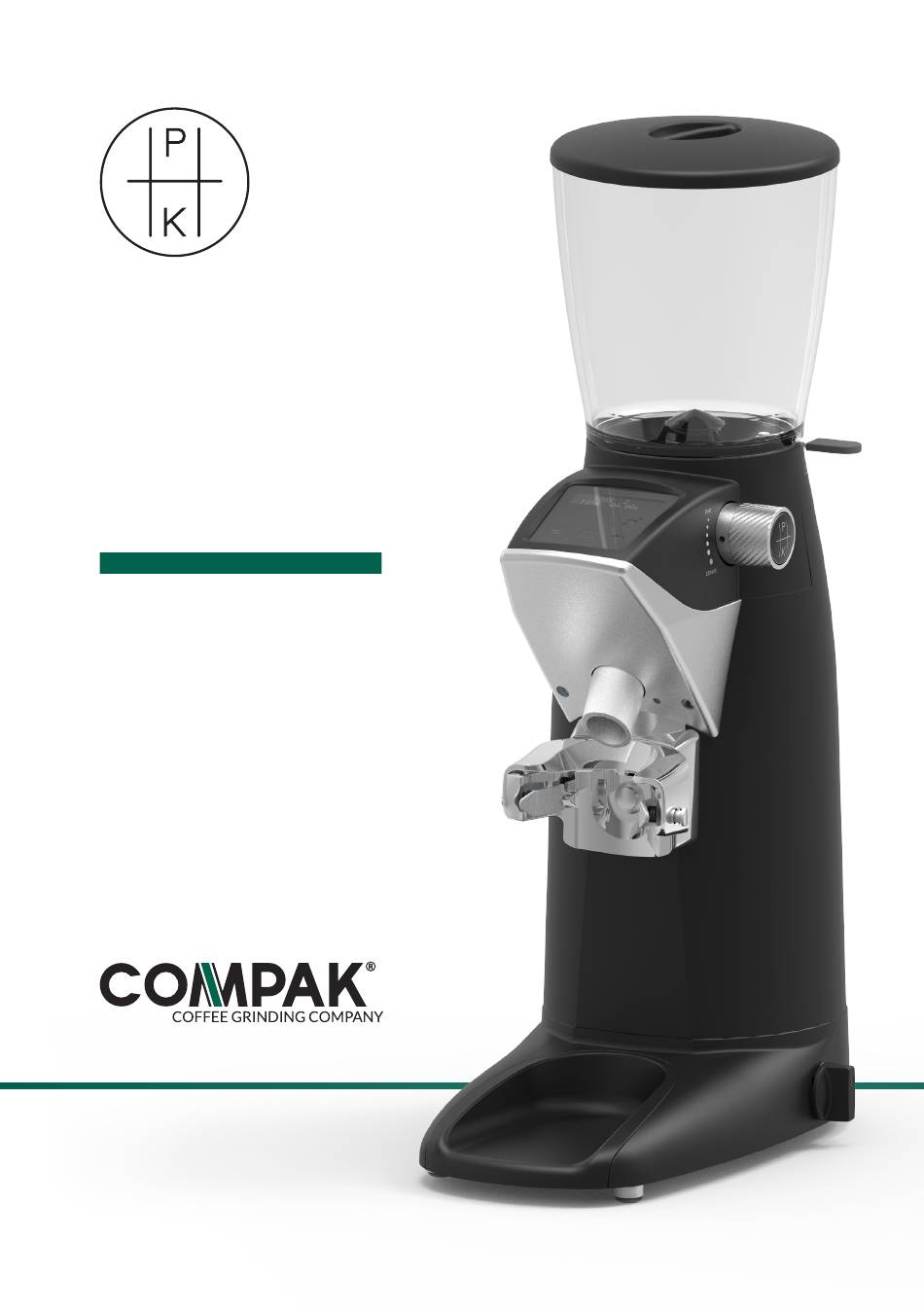

  • Page 1 INSTRUCTIONS MANUAL COFFEE GRINDER FRESH ON DEMAND...
  • Page 2 ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 30/04/2019 | K07175...
  • Page 3 INDEX COFFEE GRINDER SAFETY MEASURES DESCRIPTION INSTRUCTIONS IDENTIFICATION TECHNICAL CHARACTERISTICS EXTERNAL COMPONENTS INSTALLATION REGULATION OPERATION CONFIGURATION CLEANING MAINTENANCE EC CONFORMITY ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 30/04/2019 | K07175...
  • Page 4 SAFETY MEASURES SAFETY MEASURES INCORPORATED INTO OUR GRINDERS: • Special screw to maintain the hopper fixed in place. • Access restrictor in the grind group. The grinder should be used Children should not play with the device. exclusively for the function for which it was designed: grinding whole bean coffee.
  • Page 5 SAFETY MEASURES PLEASE PAY CAREFUL ATTENTION WITH THE FOLLOWING INSTRUCTIONS In case of any damage to parts or components, we recommend contacting your local service professional to help with repair or replacement of such parts, thereby guaranteeing the maintenance of Any other use of the the security standards of the grinder.
  • Page 6 DESCRIPTION Your new grinder has been For the optimum functionality of the designed using the most grinder models described in this user sophisticated technologies in manual, the maximum work cycles are existence. as follows: Working cycle Model Function Stop The result is a product of high quality 8 sec.
  • Page 7 INSTRUCTIONS 3.1. This manual is designed to provide the Example: ( Hopper lid necessary information to correctly install, Icons: use and maintain the grinder, as well as to highlight precautions for users to keep in mind. Information Warning Equipotential To ensure the best operation of the coffee grinder, please follow the instructions as outlined in this manual.
  • Page 8 IDENTIFICATION In the grinder information plaque is the following manufacturing/ product information. NOTE: The manufacturer reserves the right to change components/configurations of any model, according to the different geographic market demands. ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 30/04/2019 | K07175...
  • Page 9 TECHNICAL CHARACTERISTICS 5.1. USAGE The coffee grinders are intended for use on commercial premises and facilities where ground coffee is required, or in small stores that sell coffee. The grinder must only be used to grind coffee beans. Any use other than this will be considered improper and dangerous.
  • Page 10 TECHNICAL CHARACTERISTICS 5.2. TECHNICAL DATA 100 V 100 V 110 V 220 V 230 V 240 V 380 V 50 Hz 60 Hz 60 Hz 60 Hz 50 Hz 50 Hz 50 Hz Electrical Power Spin 332,5 412,5 342,5 Speed Ø...
  • Page 11 EXTERNAL COMPONENTS Hopper lid Coffee bean hopper Security screw Hand protector Hopper shutter Display Grind regulator Refill button Fork Exit chute adjustment screw Upper portafilter Lower holder portafilter holder Dose button Refill button Coffee Switch 3 collection positions tray ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 30/04/2019 | K07175...
  • Page 12 INSTALLATION 7.1. GENERAL WARNINGS 7.2. IMPORTANT WARNINGS The operator of the grinder should The person installing the grinder should carefully read this instruction be a responsible adult, and a never a minor or person incapable of safely using such manual before installation. equipment.
  • Page 13 INSTALLATION 7.3. WHERE TO USE • 7.4. GRINDER INSTALLATION The grinder should be installed on a Before grinder installation, the following flat, stable surface. should be considered: The minimum dimensions of • The grinder information plaque data the work space should be as coincides with the electrical system follows: on site.
  • Page 14 REGULATION 8.1. GRINDER SET UP Before mounting the hopper, loosen the Security screw hopper safety screw ( ). Insert the hopper ) in the upper part of the grinder, so that the bean trap gate ( ) is positioned to the right and in the closed position.
  • Page 15 REGULATION Coarse Fine ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 30/04/2019 | K07175...
  • Page 16 REGULATION 8.2. ADJUSTING FORK PK For portafilter with diagonal wings, the The serial configuration is valid for most standard spring clamp must be replaced by portafilter on the market. However, those supplied. depending on the geometry of each portafilter, it is possible to proceed in the following way for a correct adjustment: Free portafilter spring clamp, for it must release the screw that secures...
  • Page 17 REGULATION Screw Portafilter spring clamp Fig. 3 ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 30/04/2019 | K07175...
  • Page 18 REGULATION 8.2.1. ADJUSTING THE LOWER PORTAFILTER SUPPORT In order to ensure the proper distribution of ground coffee in the portafilter, while supporting the portafilter in a hands-free position during dosing, it is possible to adjust the height of the lower portafilter support ( To do this adjustment operation: Loosen the screws (...
  • Page 19 REGULATION 8.3. GRIND ADJUSTMENT SYSTEM Place the portafilter in the portafilter holder ) and press the dose activation button ( ) causing ground coffee to flow out of Grind the exit chute. ( regulator To adjust the grind point, turn the grind adjustment knob ( ).
  • Page 20 OPERATION 9.1. GENERAL SWITCH The general switch ( ) has 3 positions of use: AUTOMATIC / OFF / MANUAL The electronic functions of the AUTOMATIC equipment act. Equipment off. Manual mode of the equip- ment. Security system that allows to use the equipment MANUAL in case of failure of the power board or keyboard.
  • Page 21 OPERATION 9.3. AUTOMATIC MODE Pausing the grind cycle can be done by selecting MENU / SET UP SETTINGS / SET UP GRIND PAUSE. Dose selection via dose button ( ) () (version 2 dose / 3 doses): Selection of doses by lower pulse button ) (2 doses / 3 doses version): ACTIVATION OF LOWER PULSE BUTTON (...
  • Page 22 OPERATION 9.4. PRESELECT MODE steps: MENU / SET UP SETTINGS / SET UP GRIND PAUSE. In this mode, pause grinding may also be performed by pressing the active icon on In the PRESELECT mode, a pre- the LCD display ( ).
  • Page 23 OPERATION coffee dose button ( ). To do this, we access MENU / CONFIGURE SETTINGS / CONFIGURE GRIND PAUSE. In this operating mode, the grinding pause can also be carried out by pressing the active icon on the LCD screen ( ).
  • Page 24 CONFIGURATION We will differentiate the configuration of Automatically the icon of the desired dose the grinder into two sections: icon and the icon will change to active color and the four time numbers will then begin to flash. • Setting the grinding times for one, two and three doses *.
  • Page 25 CONFIGURATION 10.2. CHANGING THE CONFIGURATION MENU To enter the configuration menú, press icon. Once in the menu, use the buttons ( y ) to toggle through the menu options, and confirm/choose the desired option with the button. Press icon to return to the previous option. To exit the menú, press the button until the main menu screen is reached, or...
  • Page 26 ENGLISH ENGLISH ACTIVE FRANÇAIS FRANÇAIS ACTIVE DEUTSCHE DEUTSCHE AKTIV SET UP LANGUAGE ITALIANO ITALIANO ATTIVO PORTUGUESE PORTUGUESE ATIVA ESPAÑOL ESPAÑOL ACTIVO COFFEE COUNTER ABSOLUTE NUMBER OF SINGLE SERVINGS VIEW USAGE DATA COFFEE COUNTER RELATIVE BURR WEAR DATA ALARM 00000 Kg GROUND 000000 Kg OPERATING PRESELECT OPERATING MODE OPERATING INSTANT...
  • Page 27 COFFEE COUNTER DOSE 1 01/01/2015 0000000 COFFEE COUNTER DOSE 2 01/01/2015 0000000 COFFEE COUNTER DOSE 3 (*) 01/01/2015 0000000 COFFEE COUNTER DOSE 1 01/01/2015 0000000 COFFEE COUNTER DOSE 2 01/01/2015 0000000 COFFEE COUNTER DOSE 3 (*) 01/01/2015 0000000 PRESELECT MODE ON INSTANT MODE ON AUTOMATIC MODE ON PASSWORD MODE ON...
  • Page 28 CLEANING 11.1. GENERAL CLEANING Clean the hopper ( ) with a moist soft cloth or with a small amount of water and soap to eliminate any oily residue from the beans. Replace the bean hopper ( To ensure that the grinder functions ) following the same steps as the removal properly, and produces the highest quality process, but in reverse.
  • Page 29 • Dump 30 gr of the cleaning product into the hopper ( 11.6. CLEANING THE TOUCH SCREEN • Grind through all of the Compak cleaning product at a medium point as recommended by the cleaning product specs. • Clean the hopper (...
  • Page 30 MAINTENANCE 12.1. GENERAL WARNING 12.2. GENERAL MAINTENANCE Before performing any type of maintenance To guarantee the efficiency and correct you should: operation of the grinder, it is essential to follow manufacturer instructions and ensure that all maintenance work is carried •...
  • Page 31 MAINTENANCE 12.3. GRINDING GROUP MAINTENANCE / CHANGING BURRS NOTE: These operations must be carried out by qualified technical service. To perform grind chamber maintenance please observe the following steps: Turn off the grinder by making sure the main power switch ( ) is on the OFF position.
  • Page 32 MAINTENANCE Turn the grind regulator clockwise until it is removed from its housing. Loosen the propeller with Allen key H6. Tighten the extractor stud (Fig. 11) with a flat screwdriver until the lower burr carrier is released and removed. LOWER BURR CARRIER •...
  • Page 33 MAINTENANCE Clean the inside of the grinding chamber with a brush or vacuum cleaner and remove all coffee residues as well as residual lubricant from the threads of the Open Close upper burr carrier and the grind chamber. Position the extractor stud by loosening it by the lower part of the same holder and place the lower holder.
  • Page 34 MAINTENANCE 12.4. REPLACEMENT OF GRID Loosen the coffee exit chute ( ) with STAINLESS Philips PH2. Remove the four screws of the base of the aluminum cover, using a Philips PH2 key. Remove the coffee exit chute ( The exit grid ensures consistency in the after loosening the two screws, using a dose.
  • Page 35 MAINTENANCE 12.5. BATTERY REPLACEMENT On Demand models have a built-in battery back-up for saving operating information when the grinder is shut down. When this battery is spent, it must be replaced by another of the same characteristics CR2032 (Lithium Cell 3V). A “NO BATTERY”...
  • Page 36 Molí Barri, Parcela B - Pol. Ind. Can Barri - 08415 Bigues i Riells - Barcelona - Spain Ph. 34 93 703 13 00 - Fax 34 93 703 13 23 - www.compak.es ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 30/04/2019 | K07175...
  • Page 37 NOTES ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 30/04/2019 | K07175...
  • Page 38 NOTES ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 30/04/2019 | K07175...
  • Page 39 NOTES ORIGINAL INSTRUCTIONS | Ref. quality process 002/03 | v. 30/04/2019 | K07175...
  • Page 40 Ref. quality process 002/03 | v. 30/04/2019 | K07175    CONTACTO Molí Barri, Parcela B Teléfono: +34 93 703 13 00 Website: www.compak.es Polígono Industrial Can Barri Fax: +34 93 703 13 23 08415 Bigues i Riells Barcelona - Spain E-mail: info@compak.es...
