4. For optional simultaneous Composite Video transmission, attach the Composite Video Cable (Fig. 2, pg. 3) by
plugging the two (2) position connector into the Comp. Video input marked on the unit
(Note: connector is polarized). Connect the BNC side to the composite video output of the IP camera,
monitor display, matrix switch or other headend equipment.
Note: The eBridge is designed to accommodate Megapixel, HD720, HD1080 and VGA (SD) cameras. It is important
to note that some high resolution and high frame rate cameras may demand faster headend processing ability, such as a
PC graphics card to present a quality image. If the headend processing equipment is insufficient in speed, the image may
show pixilation and latency. It is advisable to pretest system if unsure. Alternatively, frame rate and resolution may be
reduced to accommodate system equipment.
Parameter
Connections
Input power requirements 12VDC/275mA, 24VDC/110mA, 16VAC/375mA, 24VAC/200mA
Indicators
Environmental
Conditions
Regulatory Compliance
Weights (approx.)

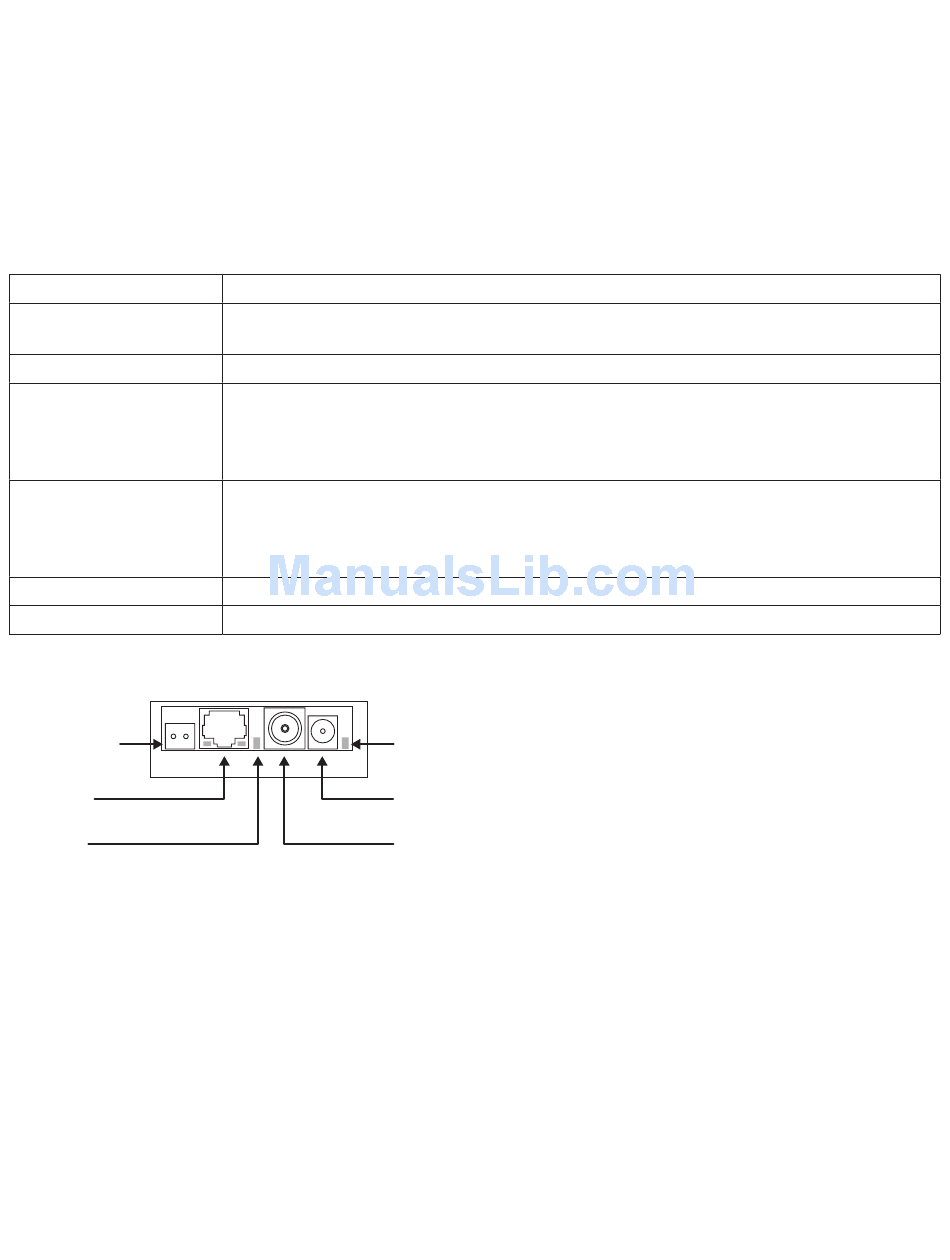

Fig. 1
Optional
Composite
Video Connector
to Camera
Structured
Cable from
IP Camera/Device
Blue LED
indicates
Coax Connection
- 2 -

Technical Specifications:

Description
BNC for Coax link. RJ45 for ethernet link.
Composite video connector for optional composite video service
Blue: Coax Link.
Yellow (RJ45 connector): On - Link, Off - No Link, Blinking - Activity.
Green (RJ45 connector): On - 100Base-TX, Off - 10Base-T.
Green: Power.
Operating Ambient Temperature: UL60950-1 14ºF to 122ºF (-10ºC to 50ºC).
Relative humidity: 85%, +/ ---5%
Storage Temperature: ---4º to 158ºF (---20º to 70ºC) Storage
Operating Altitude: --- 1000 to 6,561.679 ft. (--- 304.8 to 2000m).
UL/CUL Listed for Information Technology Equipment (UL 60950-1). CE approved
Product: 4 oz. (0.11 kg.), Shipping: 7 oz. (0.17 kg.)
eBridge1CT
Green LED
indicates
Power
16 to 24
VAC or VDC
Input
Coax
Cable from
eBridge1CR
eBridge1CT
